Hello Friends,
Some family of Seagate F3 drives has specific issue which you wil not see on other families. One of these issues we would like to show today.
希捷硬盤數據恢復時在一些家族有特殊的問題,你在其它的家族不會看到。我們今天想要展示的一個問題。
Sentosa family is common disk in our technical support department. Drives of this family can have standard problems of Seagate F3 architecture, such as background processes, translator, overfilled G-list.
本次解決方案講解的Sentosa家族的一款普通硬盤數據恢復案例。這個家族的硬盤有希捷的標準問題, 如后臺進程, 編譯器,G表溢出等。
But there is unique problem of Sentosa family.
但是, Sentosa系列有一個獨一無二的問題。
When you open the drive in utility you can see following picture:
當您在實用程序中打開驅動器時，可以看到以下圖片：
Drive shows correct ID, capacity, ready state, but doesn’t allow to read sectors.
驅動器顯示正確的ID，容量，就緒狀態，但不允許讀取扇區。

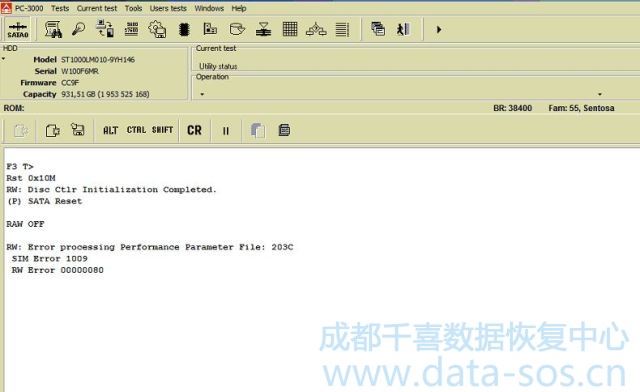

We would like you to pay attention to messages in terminal:
我們希望您注意終端中的消息：
SIM Error 1009 RW Error 00000080
It means that drive has problem with S.M.A.R.T partially with system file 0x017A
這就意味著硬盤系統文件0x017A上的s.m.a.r.t部分存在問題。

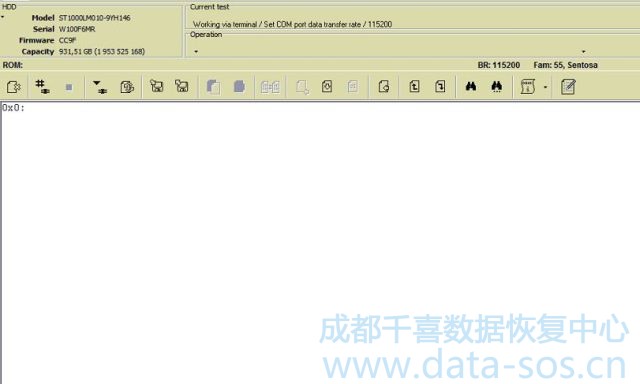

Let check it terminal
我們?cè)诮K端檢查它
This terminal output means that system file 17A is damaged.
這個終端輸出意味著系統文件17A被損壞。

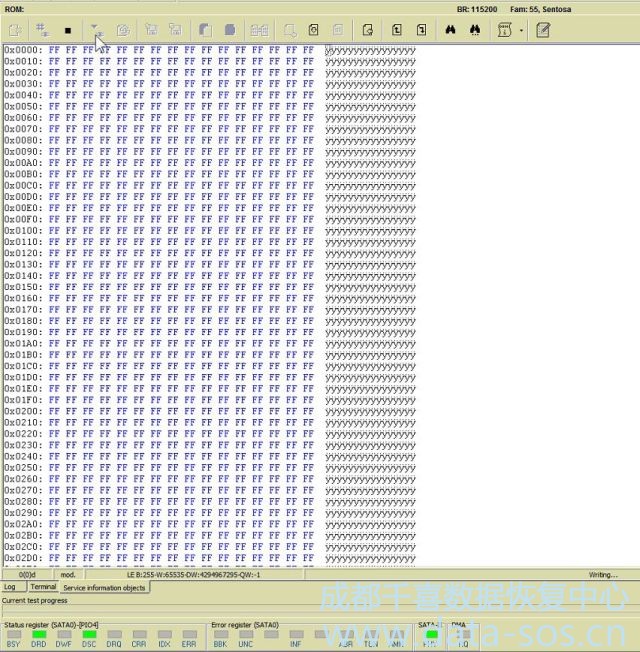

Try to read it
嘗試著讀它
We get error when try to read system file
我們?cè)谧x取系統文件時會出錯
Write 17A sys file (you can take it from the link provided below)
寫 17A系統文件（你可以從下面提供的鏈接中獲取）
And link for a good 17A system file https://yadi.sk/d/KarwRsQr3GP32u
正常的的17A系統文件鏈接
File is written and now check the terminal output after power off/on
文件已寫入，并在電源/on/on之后檢查終端輸出。
Drive comes to ready state and doesn’t send error messages in terminal.
驅動器到達就緒狀態，不會在終端發送錯誤消息。

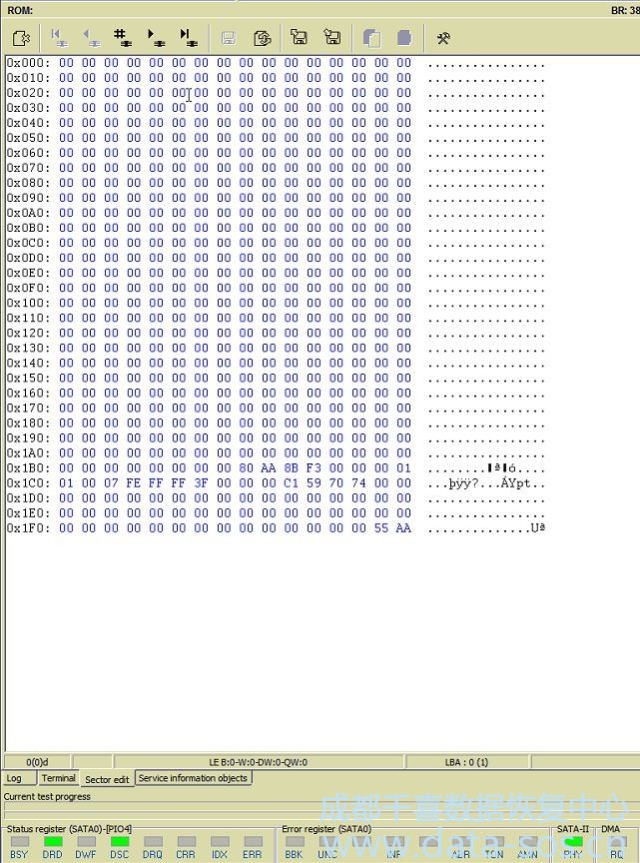

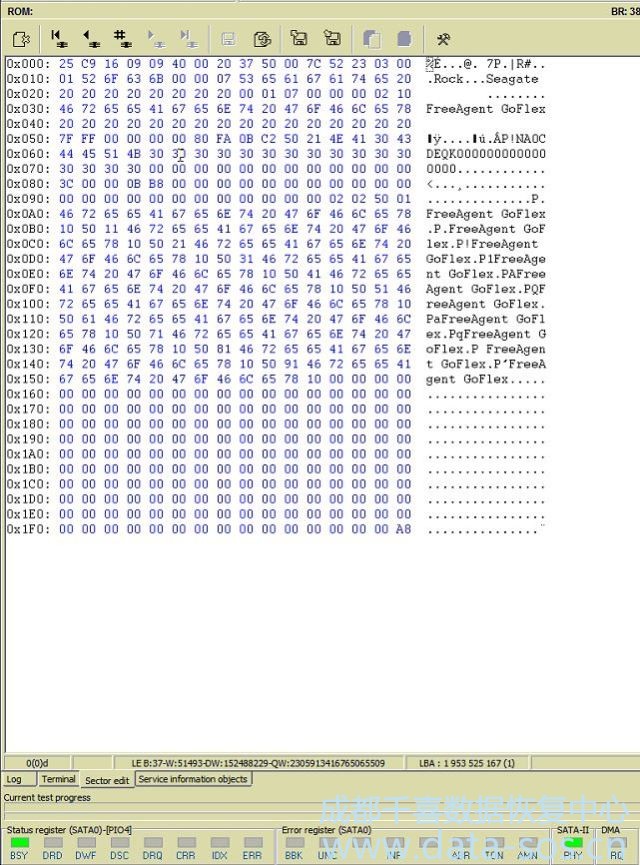

Try to read first and last sectors of user data.
嘗試讀取用戶數據的第一個和最后一個扇區。
All data is available and we can save it.
所有數據都是可用的，我們可以保存它。
