As you know SMART is very useful thing. It provides detailed infomation about Hard Drive. However SMART is broken too.
你知道SMART是非常有用的東西。它提供了有關硬盤的詳細信息。但是在希捷硬盤數據恢復過程中發現SMART損壞得很多。
Do you see this error?
你看到這個錯誤了嗎？
Init SMART Fail
SMART 初始化失敗
LED:000000CC FAddr:xxxxxxxx
If yes then welcome under the cut
如果是歡迎往下看

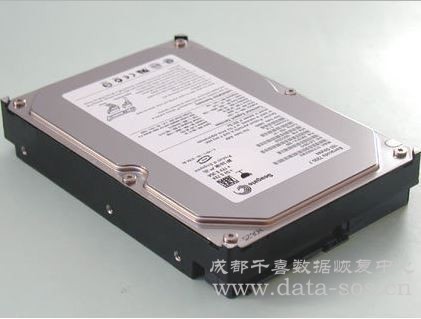

This error usually appears on Seagate F3 Barracuda 7200.11 and 7200.12
這個錯誤通常出現在希捷F3的Barracuda 7200.11和7200.12

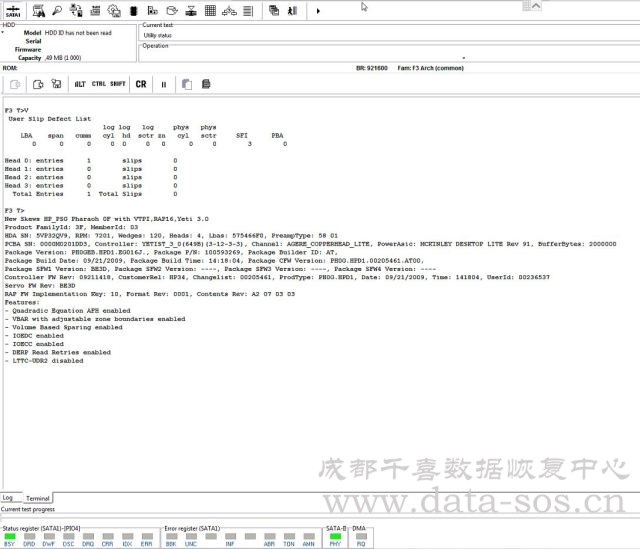

In our case we get busy Pharaoh drive
我們以希捷Pharaoh家族硬盤常忙為例

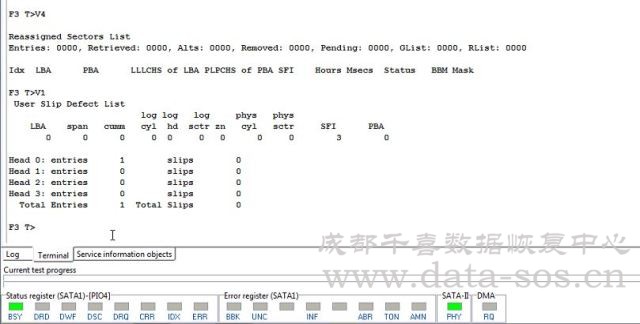

We have unchecked flags in 93 system file, cleaned G-list and tried to check translator uploading in RAM.
我們檢查93系統文件，清除G-List嘗試檢測編譯器上傳RAM.
Translator is not initialized in RAM.
內存中沒有初始化的編譯器.
Next our step is try to regenerate translator to upload it in RAM.
接下來我們的再嘗試重建編輯器上傳到RAM。

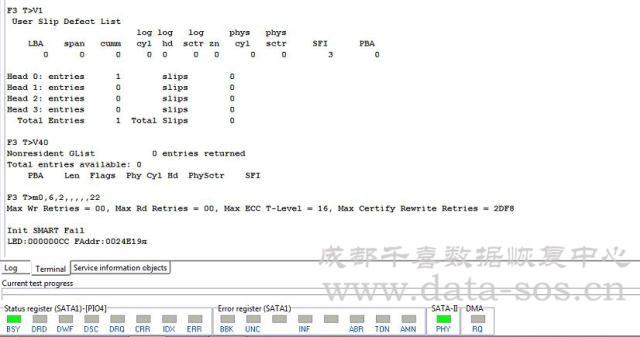

And we get Init SMART Fail and LED CC errors.
我們得到初始SMART失敗及LED CC 錯誤。
This issue is caused by damaged SMART system file. The simplest solution is try to write donor SMART sysytem file from drive with the same family.
這個問題是SMART文件損壞造成的.最簡單的辦法是嘗試寫入同一個家族硬盤SMART文件.

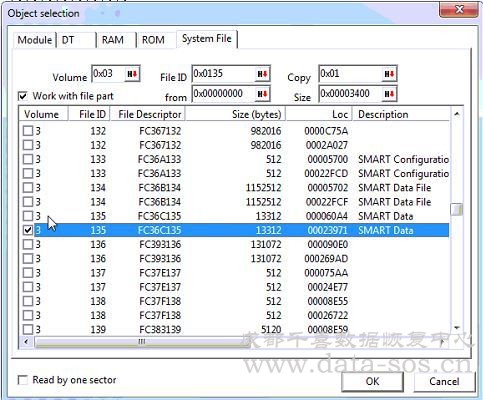

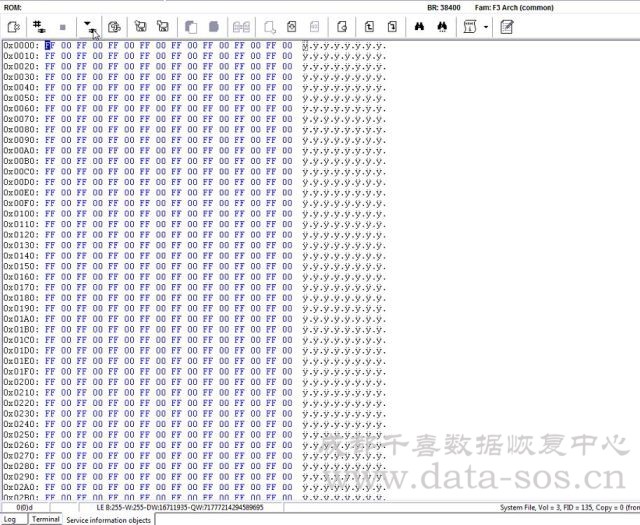

We open 135 system file
我們打開 135系統文件。

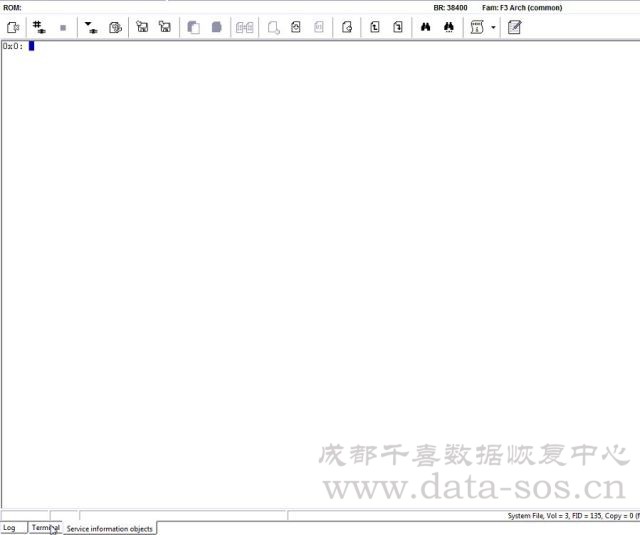

And it’s empty (this is soft bad sectors in service area of Seagate drive)
它是空的 (這是希捷硬盤服務區上的邏輯壞扇區)
Upload donor 135 system file and write it into the drive.
上傳備件盤135系統文件，并寫入驅動器。

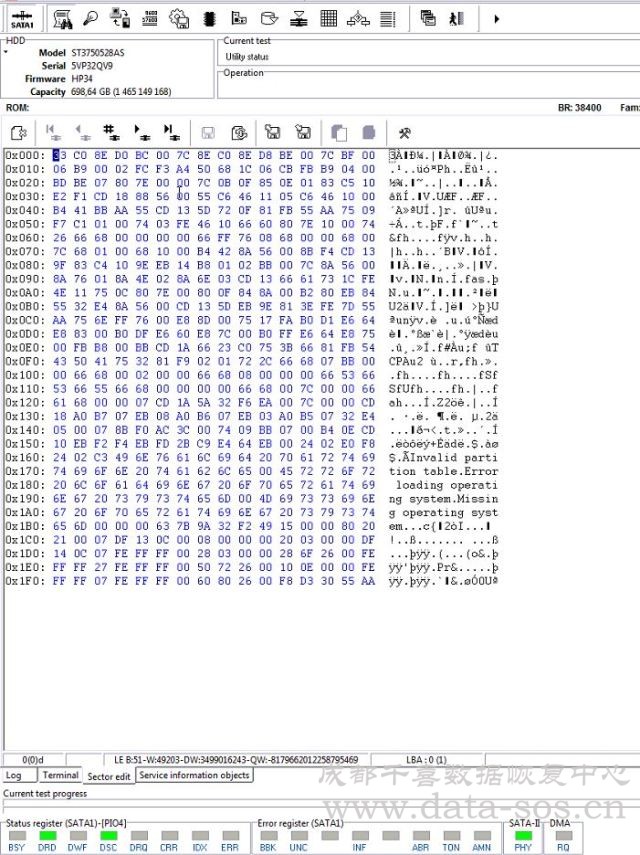

Power off/on the drive and check first sector (Drive shows ID now).
硬盤斷電/上電并讀取第一扇區（硬盤已經顯示了ID）。

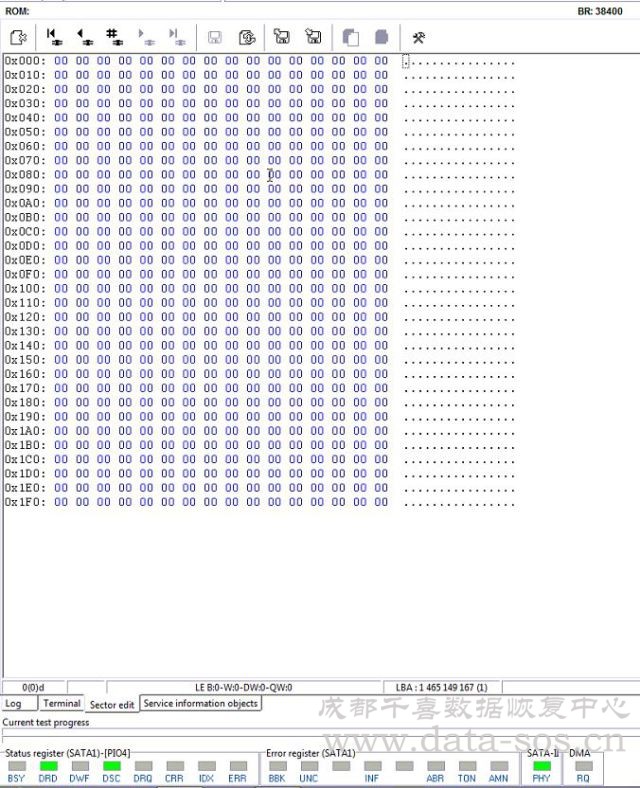

And last sector
和最后一個扇區
Data is available now.
數據現在已可以讀取。
