Sometimes data recovery engineer need to prepare a report for customer. We are?going to overview what kind of reports?can be provided by?PC-3000.
有時數據恢復工程師需要為客戶準備報告。我們將概述PC – 3000可以提供什么樣的報告。
Good and bad files
好的和壞的文件
Most frequent task. It can be used to demonstrate customer positive result before payment or to?ask which files are most critical if drive is going to dead.

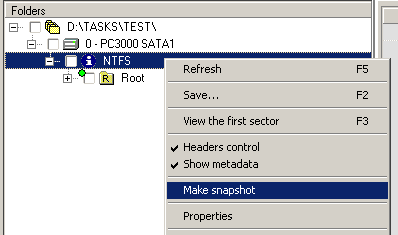

To prepare such report you need to create a snapshot?(virtual filesystem) firstly:
準備這些報告您需要?jiǎng)?chuàng)建一個快照(虛擬文件系統)首先:
After that you have three options:
在那之后，你有三個選擇:
- Make shapshot use legend
- 用圖例制作快照
- Make snapshot use metadata
- 用元數據制作快照
- Make snapshot use map
- 用位圖制作快照

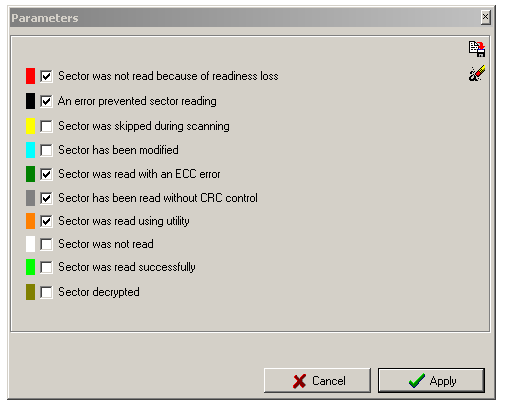

To create a report based on reading status you need to use “Make snapshot use legend”. Then?if you want to select only COMPLETELY good files (with ALL?green sectors) you need to select “EXCLUDING the legend” and mark all types of bad reading legend (black, red, green, dark green and orange):
要?jiǎng)?chuàng)建基于閱讀狀態的報告，您需要使用“Make snapshot use legend”.如果你只想選擇完全好的文件(所有綠色扇區)你需要選擇“排除圖例”和標記所有類型的讀取錯誤的圖例（黑色、紅色、綠色、深綠色和橙色):
Please note, that if you choose only “Sector was read successfully” legend (green sectors) and “Including the legend” parameter Data Extractor will put in report files which have at least one green sector, but it doesn’t mean that file is readible.
請注意,如果你只選擇“Sector was read successfully”圖例(綠色扇區)和“Including the legend”參數數據提取器將報告文件中至少有一個綠色的扇區,但這并不意味著文件可讀性是強。
For example we have a three image files, one is fully readed, second is readed partially and third is placed?only on BAD sectors:
例如我們有三個圖像文件,一個完全讀取,二是讀取部分和第三個放置于壞扇區:
If you selected “Excluding legend” and?all types of bad reading legend – you will get in resulted snapshot only 1.png. If you selected “Including the legend” and only green legend – you will get in result 1.png and 2.png.
如果你選擇“不包括圖例”和所有類型讀取錯誤的圖例——你會得到的快照只有1. png。如果你選擇“包括圖例”和只有綠色圖例 -你會得到結果1.png和2.png。

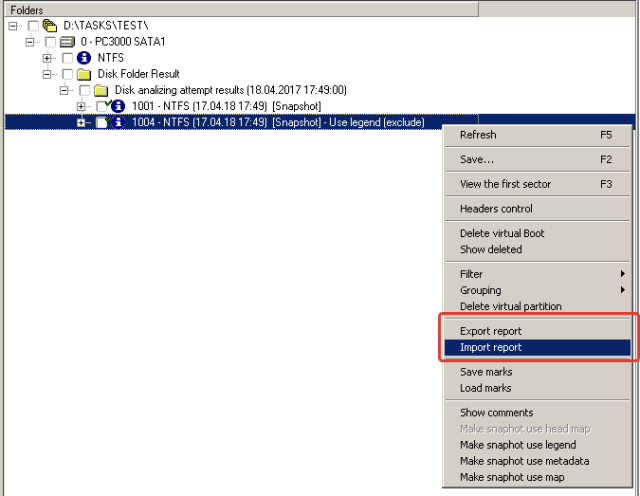

After that snapshots with good and bad files can be exported to *.acerep file and sent to customer for inspection using?DEViewer:
快照之后可以導出好的和壞的文件。*.acerep文件發送給客戶使用DEViewer檢驗:

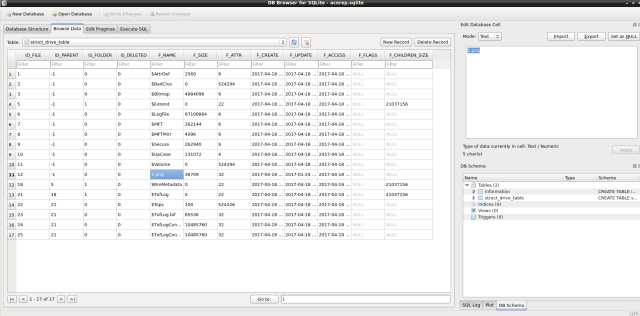

*.acerep file?format is?opened – it’s just sqlite database compressed by zlib:
*.acerep文件格式打開——這只是由zlib壓縮的sqlite數據庫:
So if functionality of DEViewer isn’t enough you can create your own personal cabinet and web application for customers based on huge number of opensource libraries like pako, jsTree etc.
DEViewer reports doesn’t contain any data about legend. If you need to provide customer two reports, one with good files and one with bad – you need to create two separate reports.
DEViewer的報告不包含任何關于圖例的數據。如果您需要為客戶提供兩個報告，一個是好的文件，一個是壞的，那么您需要?jiǎng)?chuàng)建兩個單獨的報告。
General report about errors in selected files
關于選擇文件中的錯誤的一般報告
This type of report convenient to use when you need quickly estimate total size of all selected files and selected files which have problems. Result will looks like:
當您需要快速估計所有所選文件的總大小和有問題的文件時，這種類型的報告可以方便地使用。結果將會是:

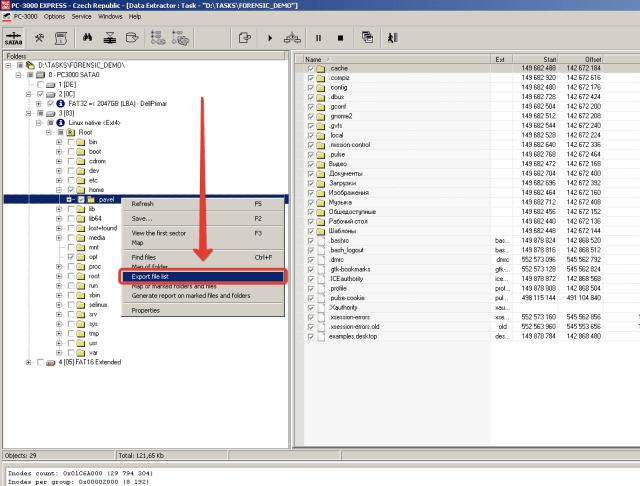

CSV report
CSV報告
This type of report is helpfull when you need to calculate MD5 and SHA1 hashes. Check more details by this link.
這種類型的報告可以為你計算MD5、SHA1哈希。通過這個鏈接查看更多的細節。
