在驅動器不旋轉的情況下，我們的一些數據恢復工程師認為這是磁頭的問題。但是要得出正確的結論，您需要首先檢查SATA狀態寄存器。
In situation when drive doesn’t rotate some of our users believe that it’s definetely a problem with heads. But to make a right conclusion?you need to firstly check SATA status register.
有一個功能叫做備用電源（PUIS）。它可以防止驅動器在上電時自動啟動。
There is a feature called a Power-up in standby (PUIS). It?prevents the drive from automatic spinup when power is applied.
PUIS功能為防止過多的功耗。您可能知道，硬盤驅動器旋轉是所有不同操作狀態的最高功耗。在具有大量HDD的系統中，自動重新啟動可能導致電力短缺。
PUIS feature made for?prevent the excessive power-consumption. As you may know, spin up is?the highest power draw of all of the different operating states of a hard disk drive. In?systems with a lot of HDD installed automatic spinup may result in a power shortage.
這就是為什么工程師根據PUIS功能創建交錯旋轉（SSU）?過程的原因? 。此過程通常每次啟動一個驅動器，要么等待驅動器發出信號，否則在開始下一個驅動器之前允許預定義的時間段通過。
That’s why engineers created?Staggered Spin-up (SSU)?procedure, based on PUIS feature. This procedure?typically starts one drive at a time, either waiting for the drive to signal it is ready or allowing a predefined period of time to pass before starting the next drive.
因此，PUIS功能和SSU程序允許在多驅動器系統中使用更具成本效益的電源。您可以在SATA規格標準中查看有關PUIS和SSU的更多詳細信息。
So PUIS feature and SSU procedure allow to use?more cost-effective power supplies in multi-drives systems. You can check more details about PUIS and SSU in the SATA Specifications Standards.

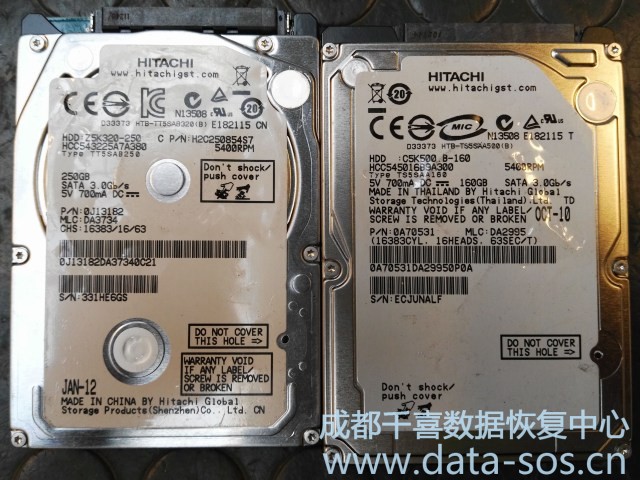

具有PUIS功能的驅動器型號示例：日立HCC543225A7A380，日立HCC543216L9SA00，帶有ES13 FW等的ST3320311CS
Examples of drive models with PUIS feature: Hitachi?HCC543225A7A380, Hitachi?HCC543216L9SA00, ST3320311CS with ES13 FW etc.
如果您看到該驅動器正在準備就緒非?？欤s1秒鐘），而不是SSHD – 最有可能您遇到了交錯的旋轉驅動器。有些用戶也可能會感到困惑，當您將這樣的驅動器插入主板時，它會旋轉，但是當插入PC-3000時，它不會旋轉。
If you see that drive is going ready very fast (about 1 second) and it’s not a SSHD – most probably you faced with staggered spin-up drive. Some users also may be confused that when you plug such?drive to motherboard – it rotates, but when plug to PC-3000 it doesn’t rotate.
幸運的是，通過PC-3000很容易解決這個問題，點擊完成：
Fortunately, it’s very easy to spin up the drive via PC-3000, it’s done by one click:
如果您在結果中獲得ABR，則表示驅動器不支持PUIS功能。
If you will get ABR in result – it means that drive doesn’t support PUIS feature.

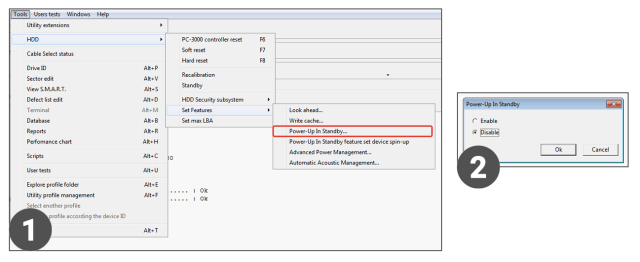

此外，如果您想要禁用PUIS功能，驅動器將在通電后自動啟動：
Also, if you want you can disable PUIS feature and drive will spin up automatically after?power is applied:
