ECC

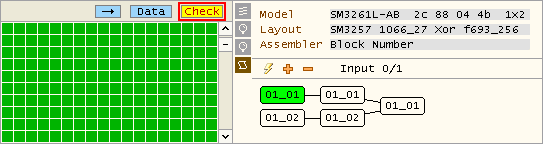

Mode 模式

Completely disabled
完全禁用

Maximum performance
最高性能

Use this mode for search
使用此模式進行搜索

Check only
只檢查

Average performance
平均性能

Use this mode to look ECC map
使用該模式查看ECC位圖

Error correction enabled
啟用錯誤校正

Slow performance
緩慢的性能

Use this mode to save files
使用此模式保存文件

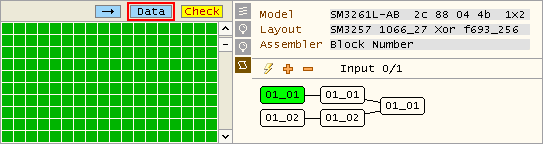

Type 類型

Show data ECC map
顯示ECC位圖數據

Show system area (SA) ECC map
顯示SA區ECC位圖

Processor Cores 處理器核心

This is number of processor cores used by software to check ECC
這是軟件用來檢查ECC的處理器內核數

It will increase speed of next operations:
這將提高下一個操作的速度：

– ECC Fix
-修復ECC

– ECC Combine
-ECC組合

– Save Image (if ECC errors was not fixed before)
-保存鏡像（如果ECC錯誤以前未修復）

It will decrease speed of next operations:
它會降低下一個操作的速度：
– select new layout
-選擇新布局

– auto find layout with ECC = Check
– 自動查找布局ECC = Check

– auto find layout with ECC = ON
– 自動查找布局ECC = ON

Each layout require different memory size to use core
每個布局需要不同的內存大小來使用核心

For example layout 20-82-00511-1 14_2048_230 Xor C634_32I:

1 core  - 132 MB
2 cores - 263 MB
8 cores -   1 GB

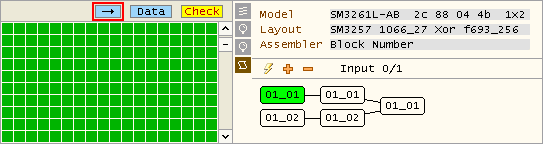

Read only / WriteBack 只讀/回寫

Read only mode. Fix errors in memory
只讀模式。修復內存錯誤

Write corrected sectors to dump
寫入修正扇區到dump

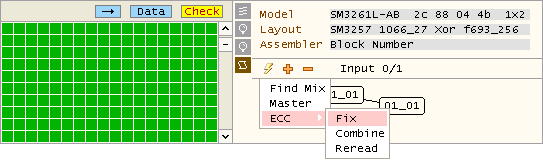

ECC Fix ECC修復

Fix ECC errors in all dumps
在所有dumps中修復ECC錯誤

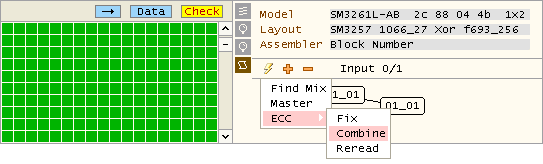

ECC Combine ECC結合

If there is uncorrected errors on ECC map, you can reread one or all dumps in separate folder. And run this procedure to take good sectors from new dumps and write them to main dumps.
如果在ECC地圖上有未糾正的錯誤，您可以在單獨的文件夾中重新讀取一個或所有dumps。并運行此程序以從新dumps中提取好扇區并將它們寫入主轉儲。

Folder – folder with new dumps
文件夾 – 新dumps的文件夾

Fix Input – Fix errors in input dumps
修正輸入 – 修正輸入dumps中的錯誤

Fix Main – Fix errors in main dumps
修復主要 – 修復主轉儲中的錯誤

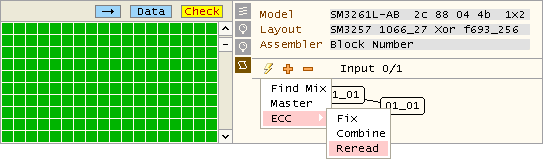

ECC Reread ECC重讀

This operation removed
此操作已刪除

If there is uncorrected errors on ECC map, you can reread chip several times. Good readed sectors will be writed to dump.

Chip – Number of chip in reader

Banks – Select wich banks will be rereaded

Repeat – number of attempts

Fix main – Fix errors in main dumps, if this was not done before

I do not recommend use this procedure. Better use ECC Combine. There you can check quality of input dumps before join. Because memory chip can give wrong data or zeros in case of bad contact or low voltage. And your main dumps will be destroyed.

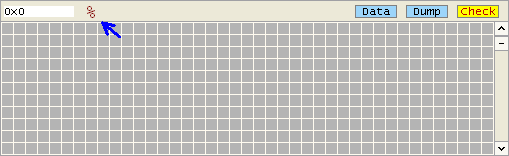

Calc statistics 計算統計

Will give you information about red and green sectors in selected dump
將向您提供有關選定dump的紅色和綠色扇區的信息
