Reader models?讀卡器型號

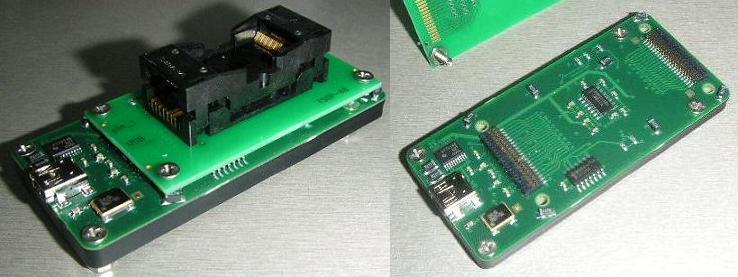

Reader: v2.2
Release: April of 2011
發布：2011年4月

Features 特點:
– new body construction
– 新的殼體結構
– improved connectors strength
– 改進的連接器強度

Adapter legs – screw DIN 965 M2.5?12 ?2
Adapter legs – nut DIN 439 M2.5 ?2
Adapter to body – nut DIN 934 M2.5 ?2
Body – screw DIN 965 M2.5?10 ?2
Body – nut DIN 934 M2.5 ?2

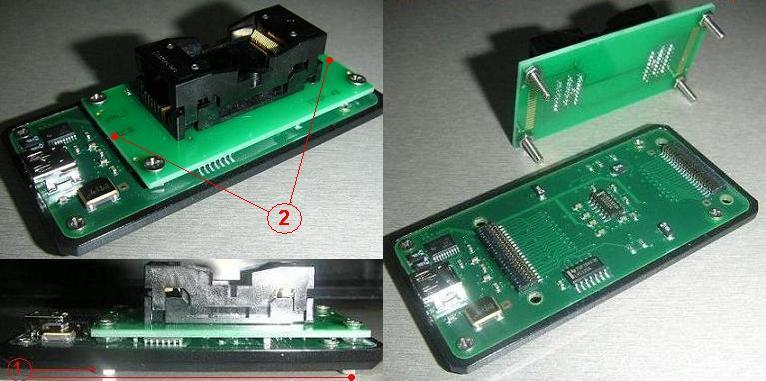

Reader: v2.1
Release: May of 2008

Disadvantages: when overloaded effort is used with tightening of screw during replacement of adapter (1) it is possible to get the deformation with bend of the adapter card and loss of contact in the middle of contact socket (2). Upon repetitive efforts made for mounting the adapter, it is possible deformation of the main board with deflection inside which leads to separation solder legs of chip CY7C68001 (located below on the main board). The appearance of the defect is expressed in multiple glitches in the work of the reader, hanging when reading, a lot of errors in read dumps. This defect can be eliminated with soldering of contacts of legs chips.

Recommendation: Do not use over force to install / remove the adapter, when attaching the adapter to the reader!
建議：不要用力過度安裝/拆卸適配器，

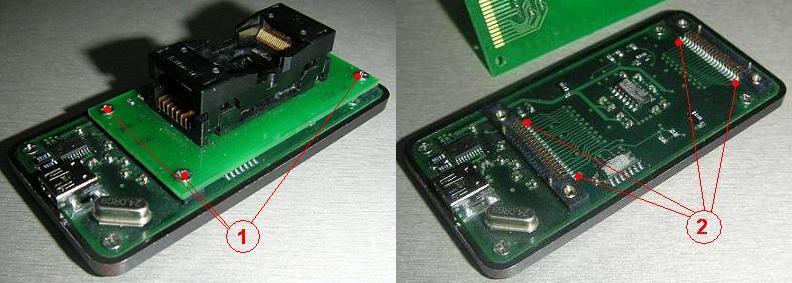

Reader: v2.0
Release: May of 2007

There were the radical design changes. Velocity of reading was improved up to 512mb per 40 seconds.

Disadvantages: when overloaded effort is used with tightening of screw during replacement of adapter (1) then separation takes place of solder pin on the main board reader (2). Damage is eliminated with soldering of pins.

Recommendation: Do not use force while changing adapter to secure the reader!
建議：更換適配器時請勿用力固定讀卡器！

Reader v1.0
Release: September of 2005

It was the first serial reader. Reading speed was up to 256 mb per hour.
