Adapter xD/SD

xD part
An xD cards is a standard NAND flash device, but engineered in a different type package.
xD卡是標準的NAND閃存設備，但是以不同類型的包裝進行設計。

The adaptor allows us to have access to memory at its lowest level.
適配器允許我們?cè)谧畹图?jí)別訪問內存。
SD part
Works through classic/basic SD interface arrangement.
We can read the SD card differently and avoid bad blocks, which usually would hang Microsoft Windows.
我們可以以不同的方式閱讀SD卡，避免壞塊，通常會掛起微軟的Windows。

When you put SD card in regular card reader (like end users use at home or work), below is a list of possible outcomes.
當你把SD卡放在普通讀卡器(比如終端用戶在家里或工作中使用)時，可以會出現下面的的結果。

1. Microsoft Windows hangs -> 90% of these situations the Soft-Center SD adapter will help.
1. Microsoft Windows掛起??-> SD卡適配器可以解決90%的問題

2. Don’t see disk/storage device in Image Explorer at all -> Only 1% of situations Soft-Center SD adapter helps
2.在資源管理器中看不到磁盤/存儲設備?->?SD卡適配器只能解決1%的問題

3. Open disk with Image Explorer, all sectors = CRC Error -> Remove NAND Chip & Attempt Direct NAND Recovery
3.使用Image Explorer打開磁盤，所有扇區= CRC錯誤 – >移除NAND芯片并嘗試直接讀取NAND恢復

How to read xD?

1. Setup xD / SD adapter
1.安裝xD / SD適配器

2. Insert card
2.插入卡

3. Attach USB connector
3.連接USB接口

4. Read NAND_Reader.exe as usual
4.使用NAND_Reader.exe讀取

How to read SD?

1. Setup xD / SD adapter
1.安裝xD / SD適配器

2. Install new reader driver version 2 or more
2.安裝新的讀卡器驅動程序版本2或更高

3. Download Adapter_SD_vXXX.dll
3.下載Adapter_SD_vXXX.dll

4. Image_Explorer \ props \ Copier \ Output = Image File
5. Image_Explorer \ Tool – select Adapter_SD_vXXX.dll

What mean this log?
這個日志是什么意思？

CMD  0  GO_IDLE_STATE

---------- IDLE ----------

ACMD 41  SD_APP_OP_COND

Reset fail

Card is not responding.
卡沒有響應。

Card is dead.
卡死了

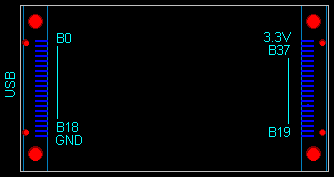

Adapter SD pinout[/color]
適配器SD引腳分配

Look throu top of adapter:
查看適配器頂部：

B8   SD_D2
B9   SD_D3
B10  SD_CMD
B11  SD_CLK
B12  SD_D0
B13  SD_D1

Look throu top of card:
查看卡頂部：
