MBR

MBR – Master Boot Record. MBR is located in the first sector of disk.
MBR –?主引導記錄。MBR位于磁盤的第一個扇區

Flash cards can have no MBR. And there is a Boot sector.
閃存卡可以沒有MBR。但有一個引導扇區。

(For example, flash cards formatted with Windows Vista tools)
（例如，使用Windows Vista工具格式化的閃存卡）

MBR contains information about partitions of drive. It can be up to 4 records about partitions of drive. But usually flash cards use only one partition.
MBR包含有關驅動器分區的信息。驅動器分區最多可以有4條記錄。但通常閃存卡只能使用一個分區。

At the end of the boot sector is a 2-byte structure called a signature word or end of sector marker, which is always set to?55 AA.
在引導扇區的末尾是的2字節，稱為簽名字或扇區標記的末尾，始終設置為55AA。

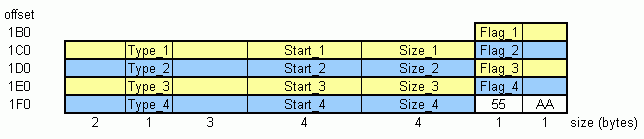

Description of MBR:
MBR說明

  shift   size   Description
 446-461   16  - partition record 1
 462-477   16  - partition record 2
 478-493   16  - partition record 3
 494-509   16  - partition record 4
 510-511   2   - signature 55àà

Flag?標志
Flag of boot partition?引導分區的標志
80 – boot?啟動
00 – no?無

Type?類型
Type of partition?分區類型
FAT16 – 04, 06, 0E
FAT32 – 0B, 0C
NTFS – 07
Extended partition 擴展分區- 0f
Extended DOS partition 擴展DOS分區 – 05

Start ?開始
Initial address of partition in LBA 分區的起始LBA地址
Counting from the current partition table?從當前分區表計算

Size?大小
The number of sectors of partition
分區扇區數
