Boot
Boot sector is located at first sector of partition. At the end of the boot sector is a 2-byte structure?55 AA?also.
引導扇區位于分區的第一扇區。在引導扇區的末端是一個2字節結構也是55 AA。
Boot sector can contain marks about using file system?FAT,?FAT16?or?FAT32. But these marks are not so required.
引導扇區可以包含關于使用文件系統FAT,FAT16或FAT32的標記。但這些標記不是必需的。

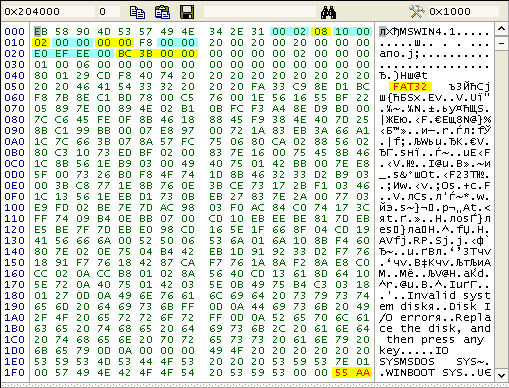

To find boot sector using?Hex Editor?put?FAT???at search line.
用十六進制編輯器來查找引導扇區?
General parameters for FAT boot:
FAT引導的一般參數:
The main fields for FAT 16 boot sector
FAT 16引導扇區

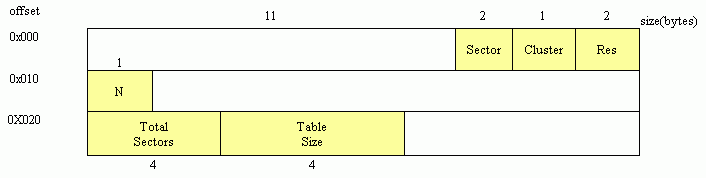

The main fields for FAT 32 boot sector
FAT 32引導扇區
Sector?扇區?
Bytes per sector. (512, 1024, 2048 or 4096)
字節數。(512,1024,2048或4096)
Generally 0x200 = 512
通常0x200 = 每簇512個
Cluster?簇
Sectors per cluster
Reserved?保留
Reserved sector count. The number of sectors before the first FAT.
預留扇區數。第一個FAT之前的扇區數。
N?
Number of file allocation tables.
文件分配表的數量。
Almost always 2 for flash.
Root Size?根大小
The size of root catalog
Size = Root_Size * 32
Root_Size is not used for FAT32 system
Total Sectors?總扇區?
The number of sectors is used in file system.
文件系統中使用扇區數。
Table Size?表大小
The size of one copy of FAT – the number of sectors in one copy of FAT
FAT的一個副本的大小 – FAT的一個副本中的扇區數
