很多希捷F3系列硬盤都存在LED錯誤，RW錯誤或停留在BSY狀態的問題。
A lot of Seagate F3 drives have a problem with?LED?errors,?RWerror?problems or just stay in?BSY?state.

在這篇文章中，我們將提供解決方案。
In this article we would like to consider the popular solution for such cases.

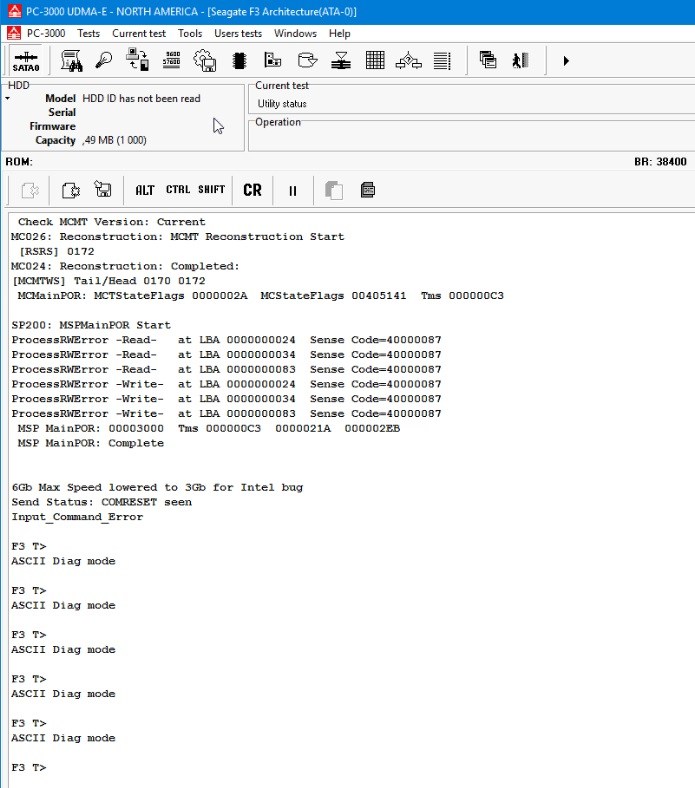

這里是希捷Grenada硬盤的BSY狀態并在終端中顯示LED:BD錯誤。
Here is Seagate Grenada drive with?BSY?state and?LED:BD?error in terminal report.

首先需要通過ctrl + Z訪問終端模式。如果終端不可訪問，則嘗試短接希捷硬盤。
First of all need to get access to terminal mode by?ctrl+Z. If terminal is not accessible try to perform a?shorting procedure.

當終端可用時打開93 系統文件
When terminal is available open?93 sys file?by

工具 – >實用程序擴展 – >服務信息對象
Tools -> Utility extensions -> Service information objects

轉到“系統文件”選項卡，并輸入系統文件編號：
Goto?“System File”?tab and enter values like on image:
Volume:?0x03?File ID:?0x0093?Copy:?0x00

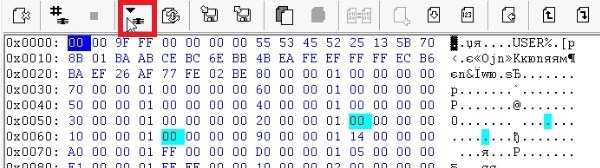

然后點擊插件啟動“Edit Saved Mode Pages module (SMP)”選項
Then goto Plugins and launch?“Edit Saved Mode Pages module (SMP)”?option

關閉除頂部之外的所有選項，按OK
Switch off all ticks except the top one, press OK…

并將此系統文件寫入硬盤
and write this sys file into drive

重新打開電源并檢查硬盤
Re-turn the power supply and check a behavior of the drive.

現在，我們可以訪問整個用戶區域。
Here we get access to whole users area.
