當我們忘記選擇數據提取設置中的“解密”復選框時，我們所有人都可能遇到這種情況：
All of us can face the situation when we forgot to select the “Decrypt” checkbox in Data Extractor settings:
并已通過SATA接口讀取部分?jǐn)?shù)據或全部鏡像。
and read the part of data or the whole image encripted via the SATA interface.
如何解密圖像并讀取數據？我們?cè)谶@篇文章中討論它。
How to decrypt the image and read the data? We discuss it in this article.

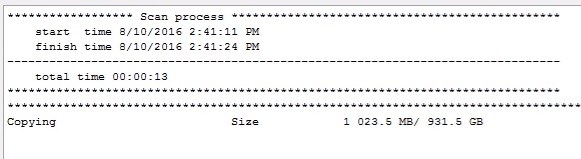

例如，我們已經從MyBook或MyPassport驅動器中讀取1Gb的數據，然后突然記住我們沒有啟用解密復選框：
For example, we have read 1Gb of data from MyBook or MyPassport drive and then suddenly?remember that we didn’t enable the decryption checkbox:

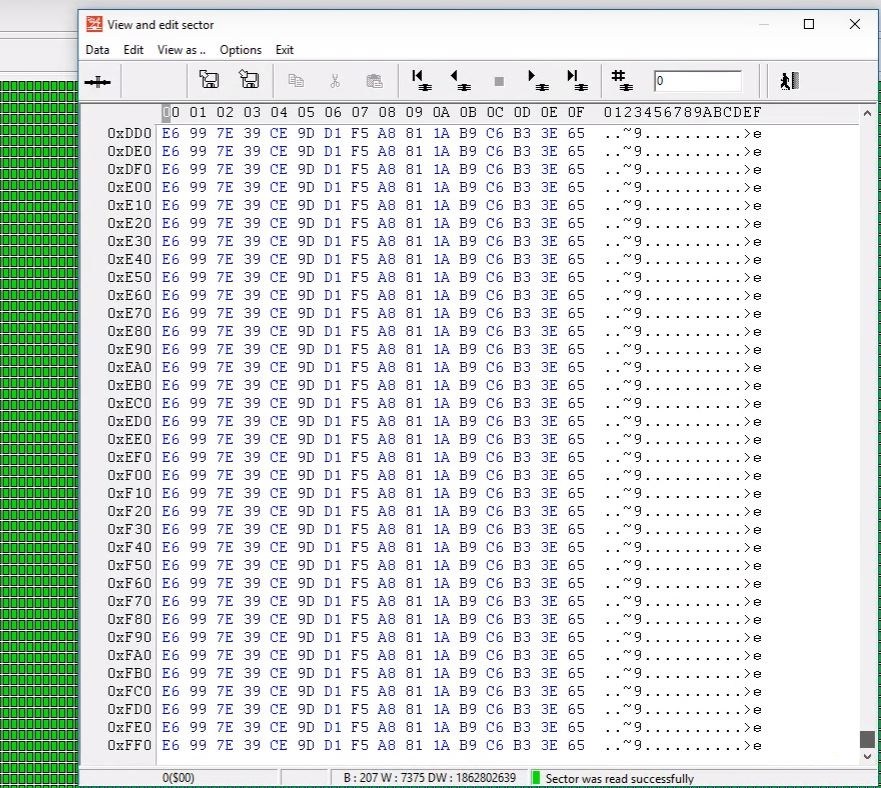

如果我們進入地圖標簽，我們會看到所有的扇區看起來都是非標準的，而不是已解密的：
If we go to Map tab, we will see that all sectors look standart and not decrypted:

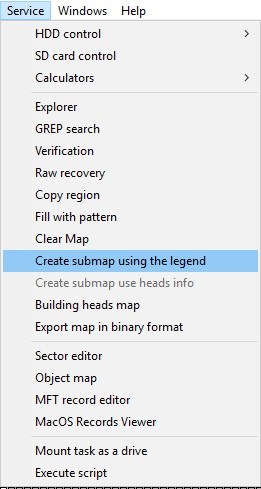

我們需要使用的功能位于服務菜單：使用圖例創建子圖
The feature we need to use is situating in?Service?menu:?Create submap using the legend

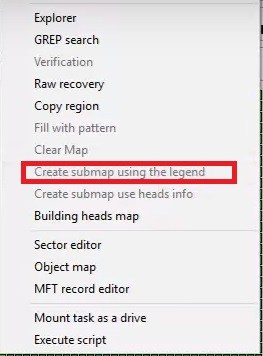

如果此菜單不可用，并且顏色為灰色，則需要重新打開相同的任務：
If this menu is not available and coloured as grey, we need to re-open the same task:
我們使用圖例創建子圖：
We do?Create submap using a legend:

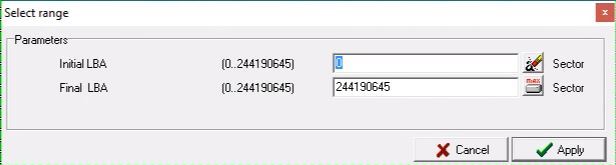

選擇范圍，這取決于我們已經讀了多少：
Select the range, it depends on how much we have already read:

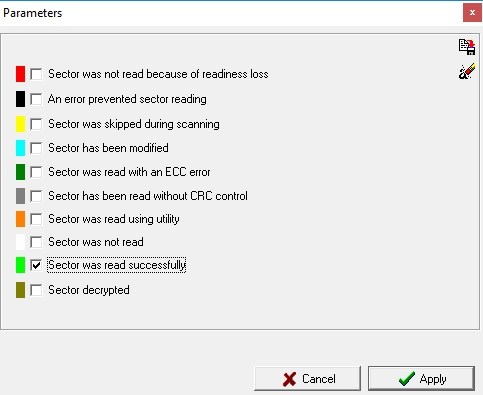

選擇我們已經讀取的扇區：
Select the sectors we have read:
并等待創建子位圖。
and wait for submap creating.
接下來我們按執行按鈕，看到解密菜單是灰色的，不能使用：
Next we press to?Execute?button and see that?Decryption?menu is grey and not available for using:
接下來我們按下Task params?按鈕：
Next we press?to?Task params?button:

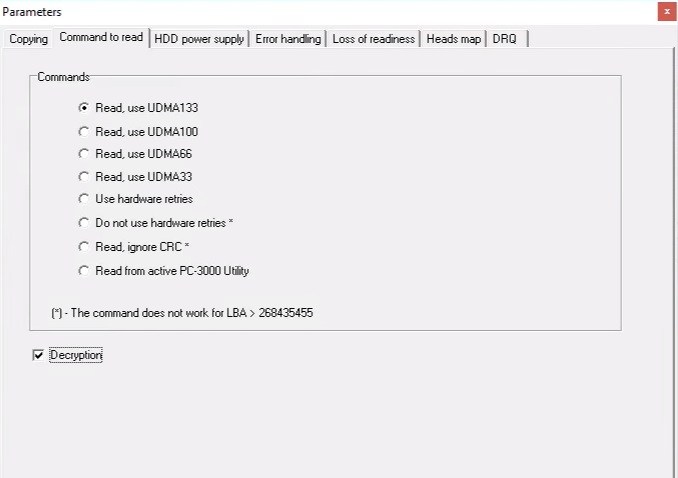

在命令閱讀選項卡選擇解密???：
Select the?Decryption?in?Command to read?tab:

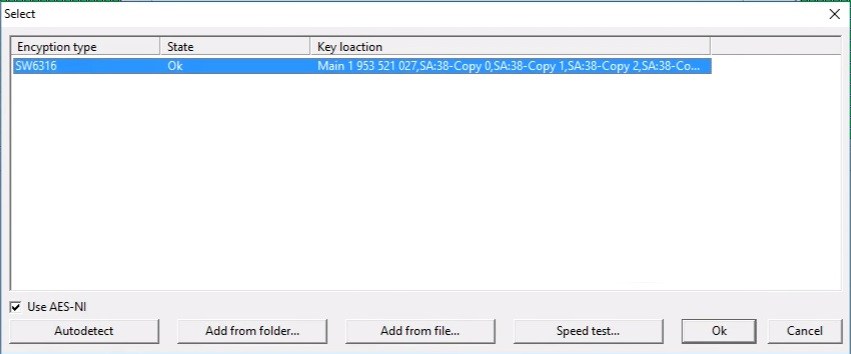

選擇正確的值并應用：
Choose the right key and apply it:

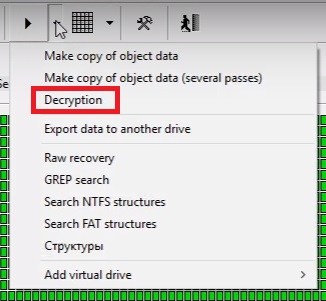

現在再次按執行按鈕，看到解密菜單現在可用：
Now press to?Execute?button again and see that?Decryption?menu is available now:

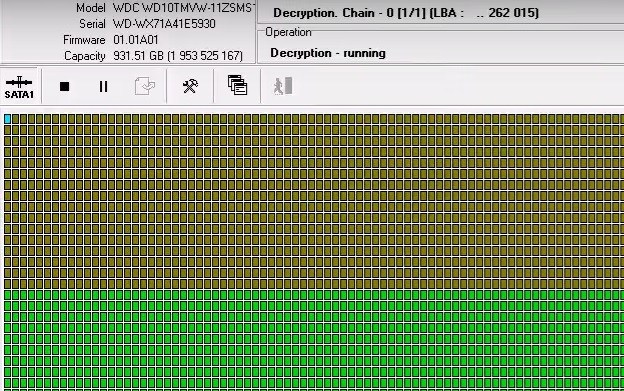

按解密，看看數據在位圖上是如何解密的：
Press?Decryption?and see?how the data is decrypting in map:
如果我們想解密其余的數據，而這些數據仍然是加密的，而且之前沒有讀取，我們只需要運行讀取過程，其余的數據就會被讀取。
If we want to decrypt the rest of data which is still encrypted and not read before, we just run the reading process, and the rest of data will read already decrypted.
