問題是什么？What is the problem?

希捷固件加密的硬盤幾乎阻止所有命令。例如，固件版本號為1ER162、1ER1624和1ER166的Greanada驅動器對任何終端命令都回復“診斷端口已鎖定”。所以你不能構建磁頭位圖，讀取和修復系統文件等，這對希捷硬盤數據恢復的工作增加了更大的難度。

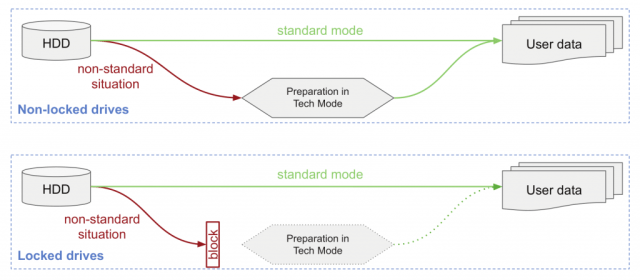

Seagate Self-Encrypting drives is blocking almost all techno commands. For example, Greanada drives with?part numbers 1ER162,1ER1624 and?1ER166 reply “Diagnostic Port Locked” to any terminal command. So you can’t build headmap, read and fix sys files etc.

解決辦法是什么？What is the solution?

我們對ROM進行了特殊添加，可以在從表面運行微代碼時捕獲控制并解鎖技術模式。

We made a special addition to ROM which is able to catch the control and unlock techno mode at moment of running microcode from surface.

解鎖分兩個階段進行，只需簡單地按下按鈕

Unlocking?is performed in two stages?with a simple press?of button

第1步。準備驅動器:ROM補丁

Stage 1. Preparation of the drive: ROM patch

第2步。解鎖驅動器:發送一個特殊的會話密鑰

Stage 2. Unlocking the drive: sending a special?session key

First button (“Tech mode unlocking preparation, Grenada”) save the ROM via boot code , modify it and write modified image back to HDD. Second button (“Unclock Tech, drive prepared by utility”) send a special command to unlock techno mode. After that terminal commands become working:
第一個按鈕（“Tech mode unlocking preparation, Grenada”）通過引導代碼保存ROM，對其進行修改并將修改后的映像寫回到HDD。第二個按鈕（“Unclock Tech, drive prepared by utility”）發送特殊命令以解鎖技術模式。在該終端命令生效后：
