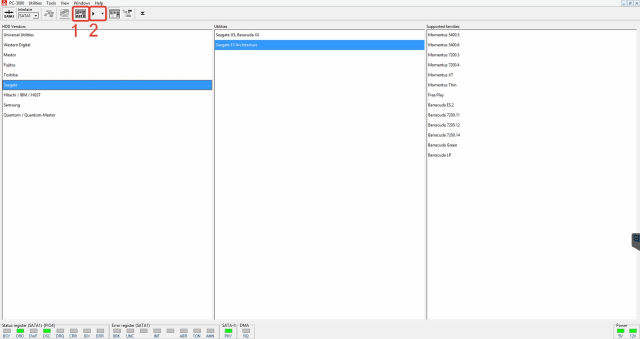

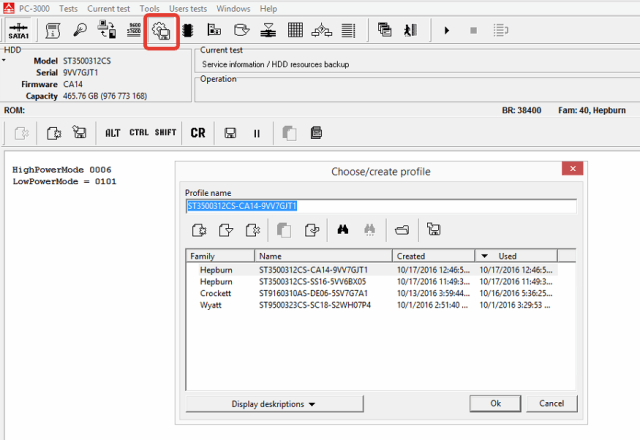

1.進入希捷F3進修程序；

2. 備份硬盤的所有固件和系統文件；

3. Edit HDD ID – 禁止所有選項

Check this for more details.

*4 (可選). 清除G-list (T>i4,1,22) 和 Non-resident G-list? 并重建編譯器(T>m0,6,3,,,,,22)

Do it ONLY in two cases:

• You already run hiding defects and something got broken/hanging
• G-list has wrong items (drive already have a problem with translator)

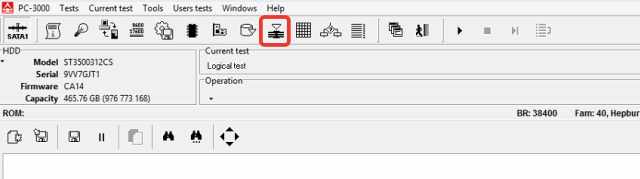

5. 運行硬盤邏輯掃描

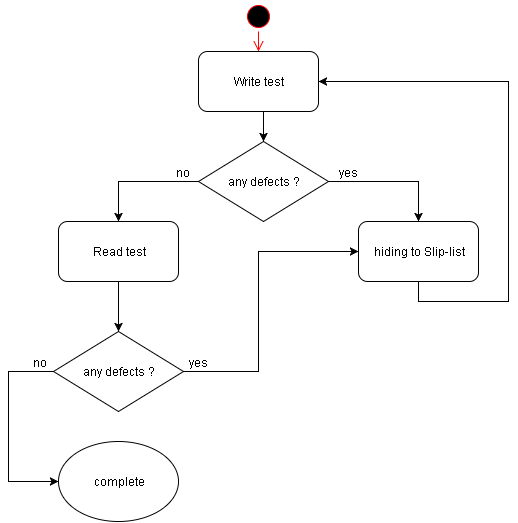

下圖為操作步驟

It’s recommended to?leave all ?logical scan parameters by default.

Let’s take a look on hiding to Slip-list stage more detailed.

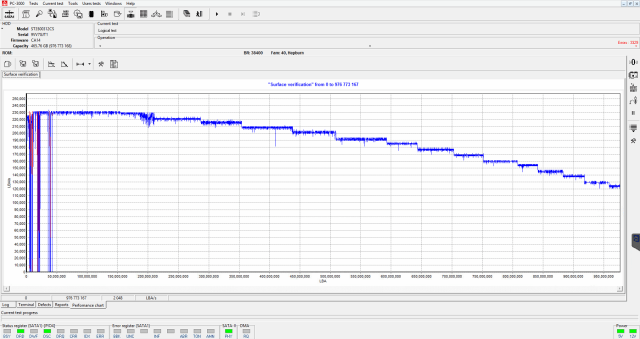

Results of logical surface scan will looks like

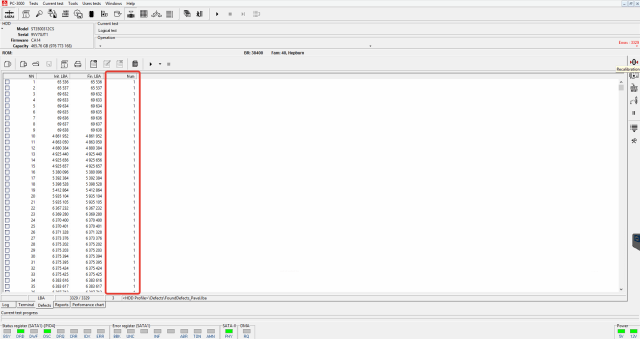

Now let’s move to Defects tab. As you may see, defect chains consists from only one defect.

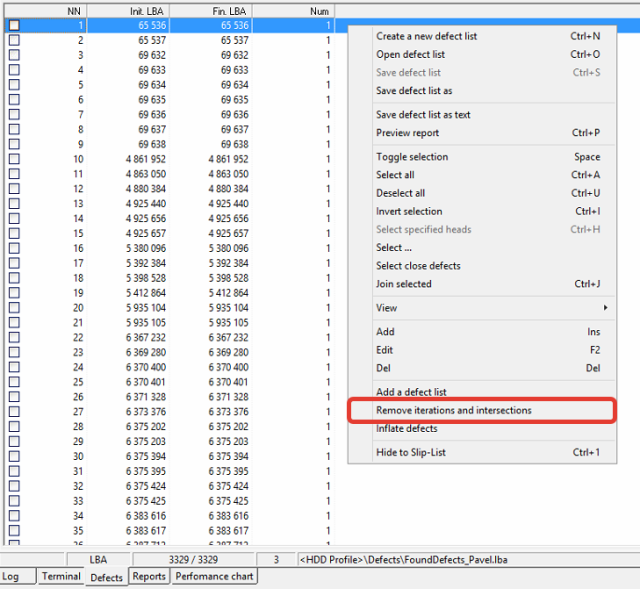

To save defects more quickly it’s recommended to group chains. For doing this you need to select at context menu of defects editor Remove interactions and intersection?option:

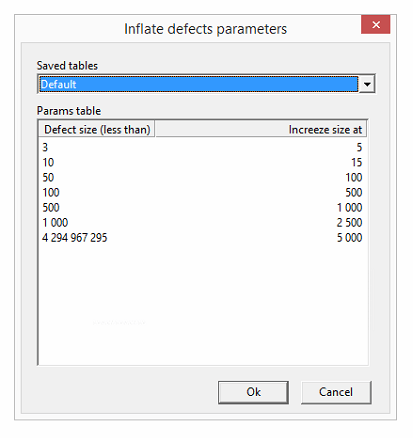

To prevent defects?spread in future you can use?Inflate defects option. Here is its?default configuration:

To use Inflate defects option?or no – it’s only your decision.

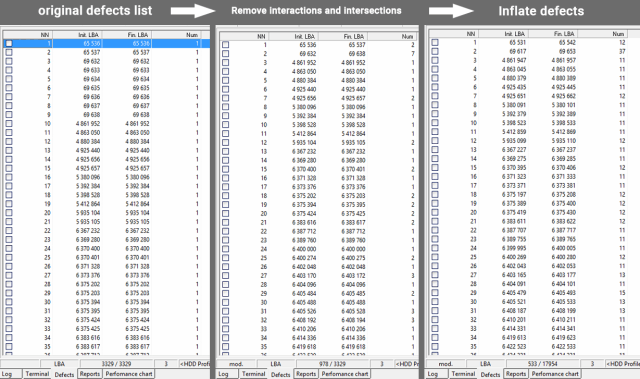

At picture below you can?clearly check result of preparations:

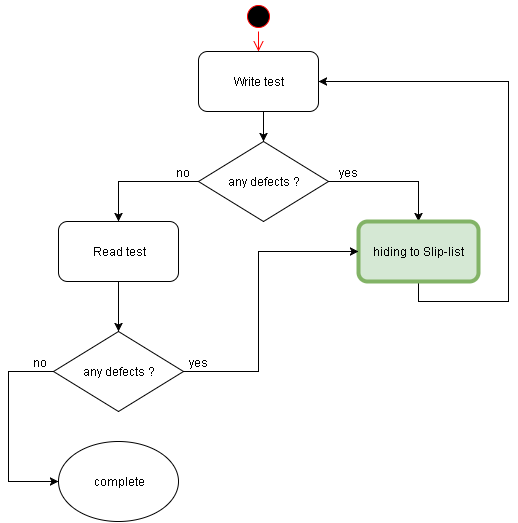

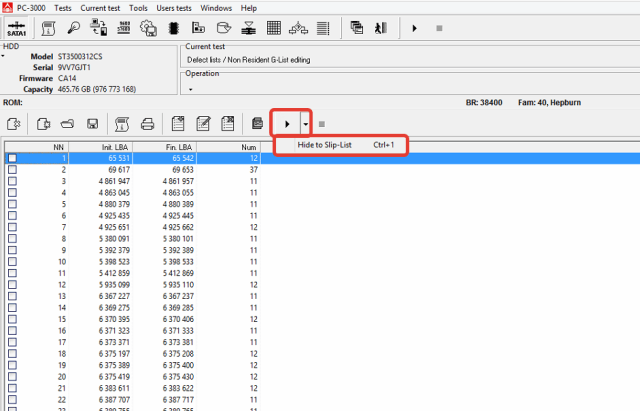

After preparations with defect list just press Hide to Slip-List button and go to next stage of block scheme:

Happy defectoscopy!
