在一些案例中硬盤有一個或者多個的磁頭出現故障，但是硬盤依然可以正常初始。但是當我們嘗試訪問用戶區時硬盤提示錯誤，無法訪問用戶扇區。
In some cases a drive with one or more malfunctioning heads can finish the initialization process without any visible errors. But when we try to read user area it results in error and no user data can be read. For example it can occur when one or more heads have problems with writing.

當至少一個系統磁頭是好的情況下 ，我們通過以下操作流程訪問用戶數據
The procedure allows to get access to data on all normally working heads of the drive when SA and at least one of system heads are OK.

該方法的主要思路是用一個好的磁頭替代有故障的磁頭
The main idea of this method is to to trick the drive calibration procedure through substitution of a normal head instead of a malfunctioning one. Consequently it works with drives using two or more heads.

關于系統磁頭損壞的情況下的數據訪問方法 將在下一篇文章中講解
Also it can be applicable when one of the system heads is damaged. In such cases the patient drive may produce clicks, knocks and turn down the spindle. This case will be reviewed in details in the next article.

本案例中 我們將恢復 WD20EARS-00MVWB0? 硬盤的數據（系統磁頭良好）。硬盤可以就緒但無法訪問用戶區，我們?cè)谡ＤＪ较逻M(jìn)行以下操作。
In this example we recover WD20EARS-00MVWB0 drive with non-system head damaged. The drive goes READY but do not give access to its User Area. So we use the procedure in Normal mode.

Here the procedure:

啟動硬盤 ，等到硬盤就緒
We turn the drive ON and wait until it goes READY

點Utility Autodetect 按鈕 進入實用程序
Then press the Utility Autodetect button and double-click the utility

點Autodetect 按鈕 自動發現硬盤家族? 啟動實用程序

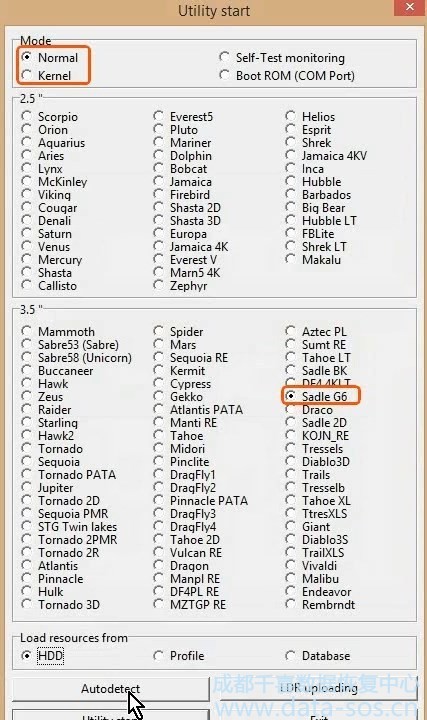

Now press Autodetect button and check that Mode and Drive Family are chosen correctly and press the Utility Start button

硬盤初始化正常，沒有報錯，SA 區可以訪問，硬盤ID 正確

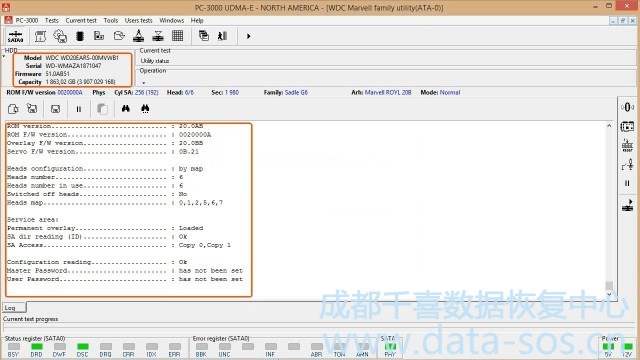

As we can see the drive initialized without any errors, SA is accessible and drive ID is correct

在這里我們可以看到硬盤共有六個磁頭 ，都處于工作狀態
Also here we can see that the drive has 6 heads and all of them are ON

用Sector Edit 菜單 檢測用戶區是否可以訪問

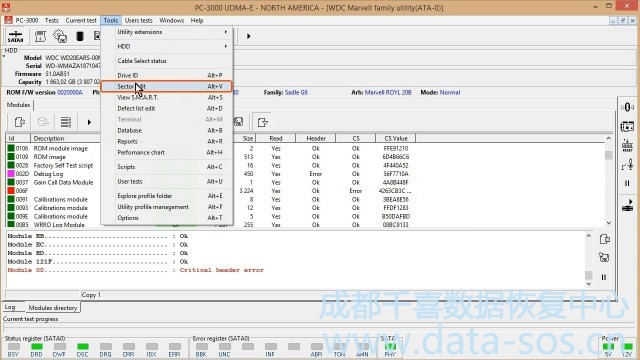

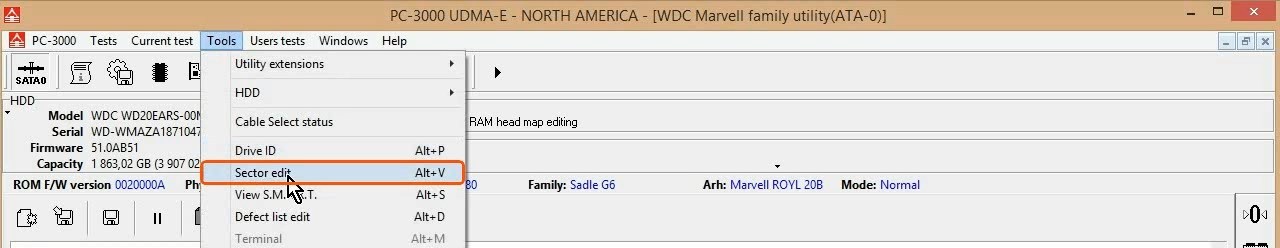

To check that the User Area is accessible we can use Sector Edit tool.

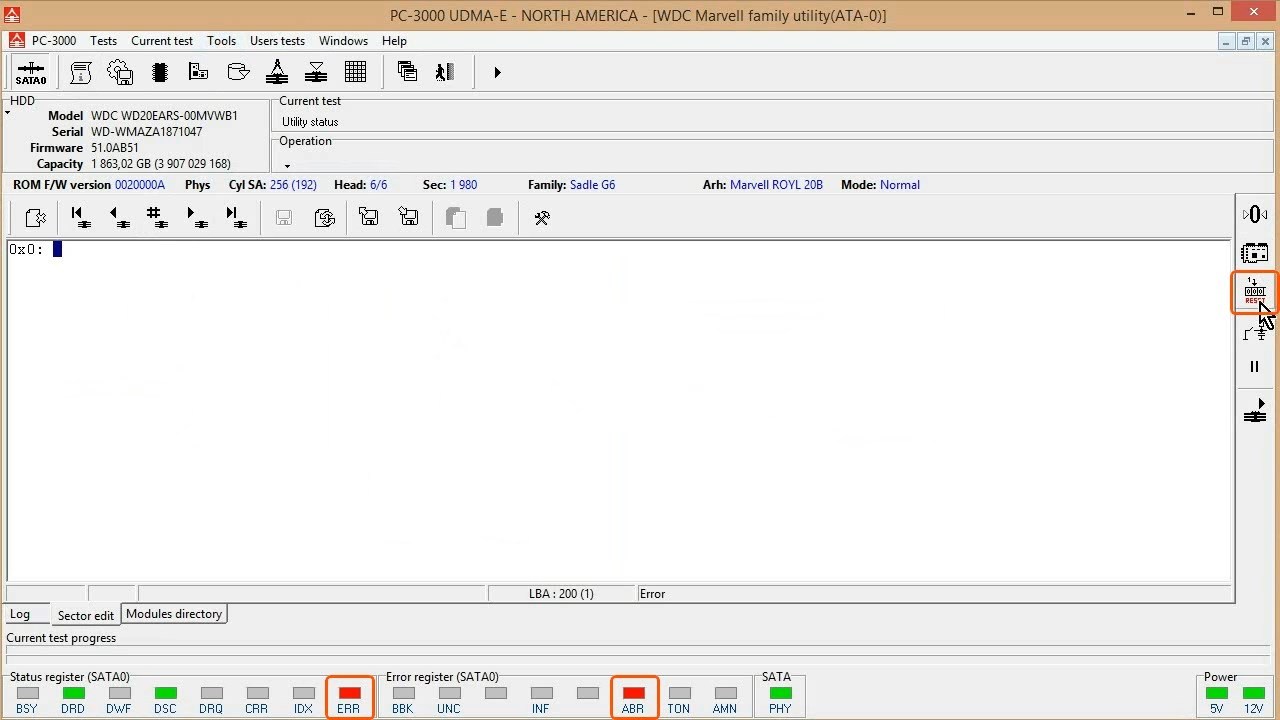

在這里我們發現無法訪問用戶區，程序報錯
As we can see here we do not have access to the User Area and drive returns ERROR status

現在進行一次軟復位 ，讓硬盤復位
Now I give a Soft Reset command to the drive to set it in Ready status

等待硬盤再次 就緒
And wait until it becomes ready again

現在我們需要檢測SA模塊， 以確認用戶區無法訪問的原因是否與SA模塊有關
Now we need to check the SA modules to be sure that problem is not in them

工具?Tools -> Utility extensions實用程序 擴展-> Modules directory模塊目錄

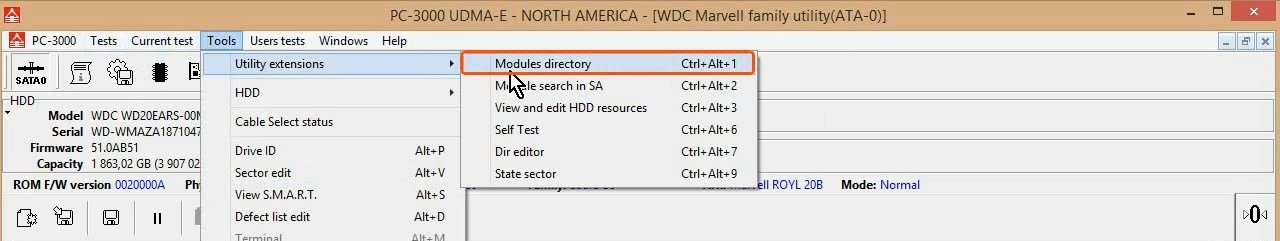

To do that go to Tools -> Utility extensions -> Modules directory

然后按選擇模塊讀取方式按鈕

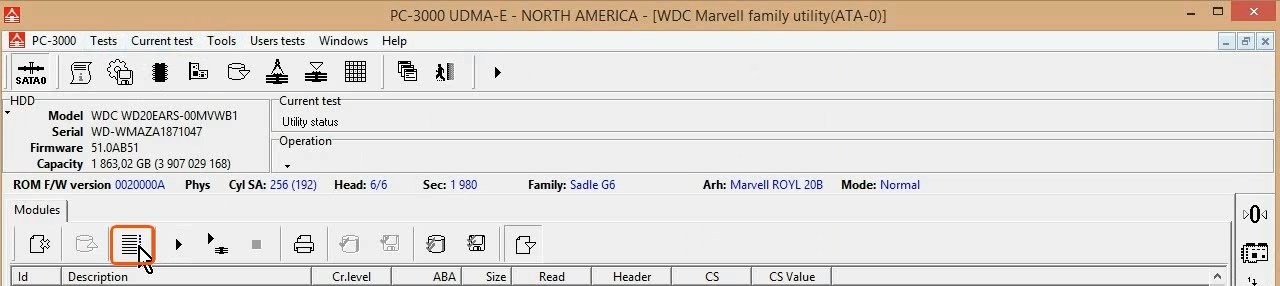

Then press Select Modules Reading Method button

并選擇ABA 讀取Copy0
and select Read by ABA Copy 0

然后按SA檢查按鈕
Then press SA checking button

檢查所有模塊是否被選中，然后按OK

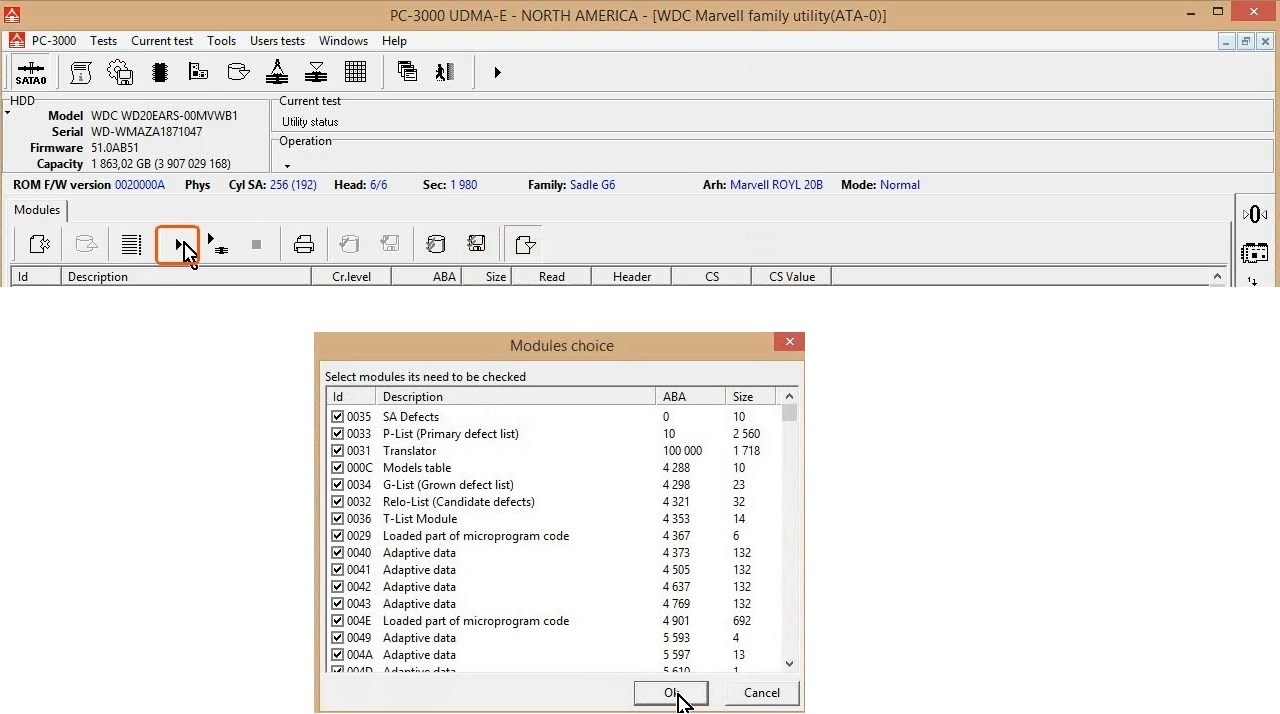

Check that all modules are selected and press OK

檢查完成后，我們來看看結果
When the checking is completed we look at the results

我們可以看到，所有關鍵模塊（A類和B類）都是正確的

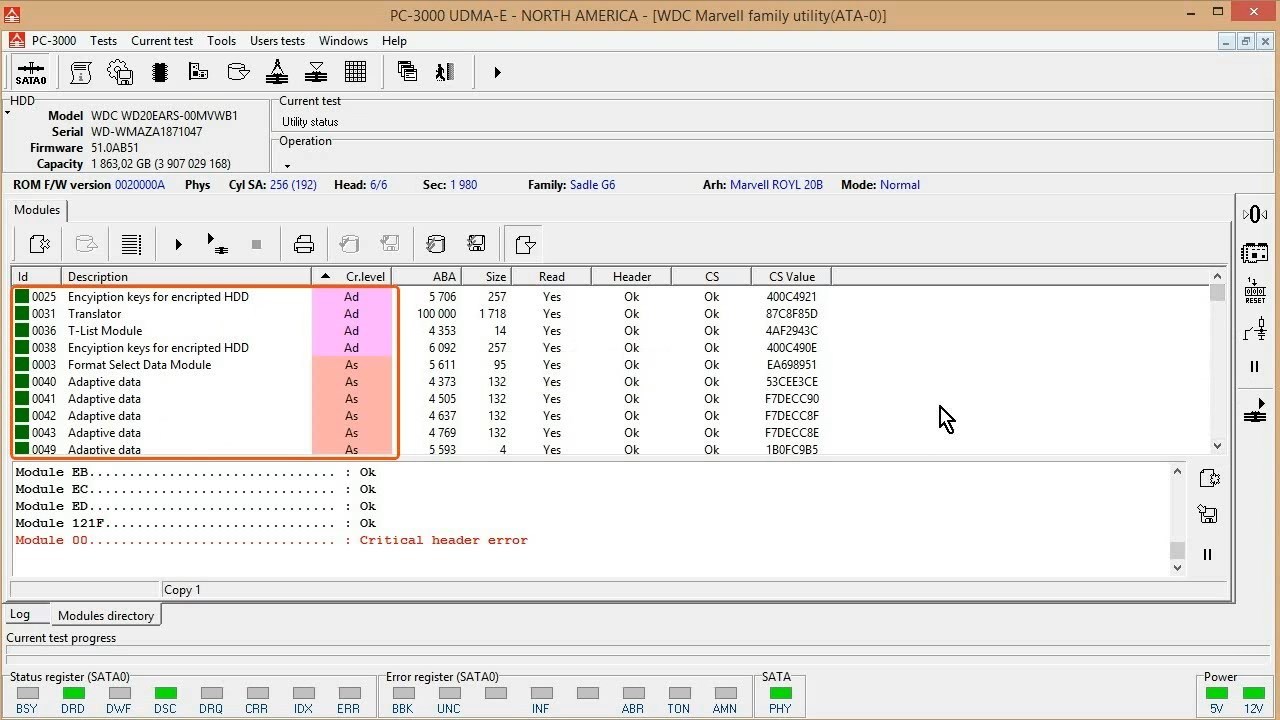

As we can see here all the critical modules (A and B category) are correct

(not all the modules are shown on the picture)

所以現在我們檢查Copy 1模塊
So now we check the Copy 1 modules.

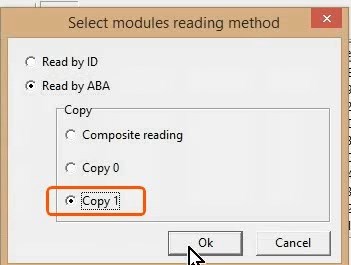

再次按選擇模塊讀取方式按鈕，現在檢查copy1。然后按OK。
Press Select Modules Reading Method button again and now check Copy 1 box. Then press OK.

再次按SA檢查按鈕，檢查所有模塊是否被選中，然后按OK
Again press the SA checking button, check that all modules are selected and press OK

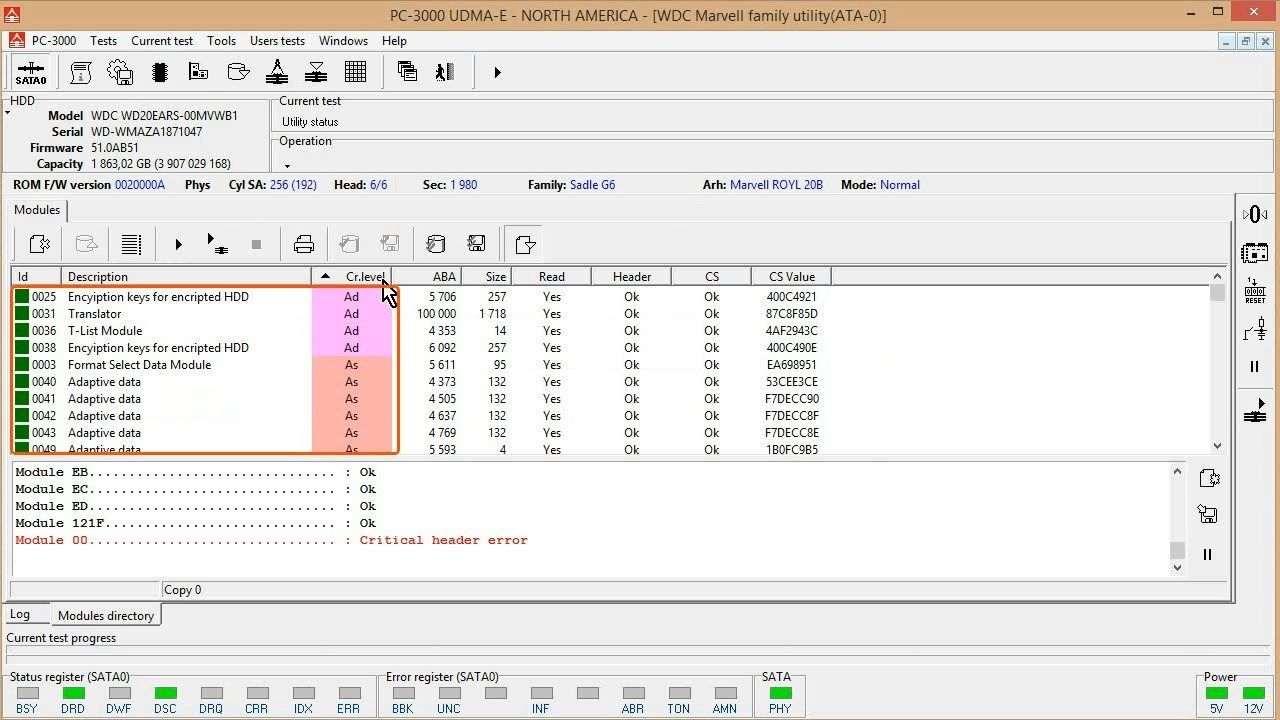

我們可以看到Copy 1的模塊也正常的，所以應該不是模塊引起的問題
We can see that Copy 1 of modules is also OK so the problem is not in the modules

(not all the modules are shown on the picture)

問題不在SA模塊中。所以我們需要檢查磁頭。
The problem is not in SA modules. So we need to check the heads.

我們必須找出哪些磁頭損壞了，所以讓我們進行磁頭測試。
We have to find out which of the heads are damaged so let’s run the Head test.

點擊Tests -> Service information -> Work with service area -> Heads test
To do that we go Tests -> Service information -> Work with service area -> Heads test

在這里，我們可以看到硬盤的6個磁頭。我們來檢查所有磁頭。然后按OK。

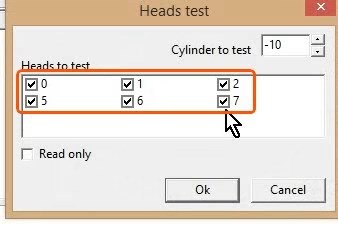

Here we can see all 6 heads of the drive. Let’s Check all of them. Then press OK.

選擇日志選項卡以查看進程

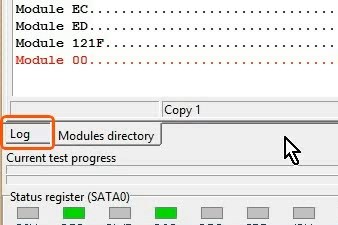

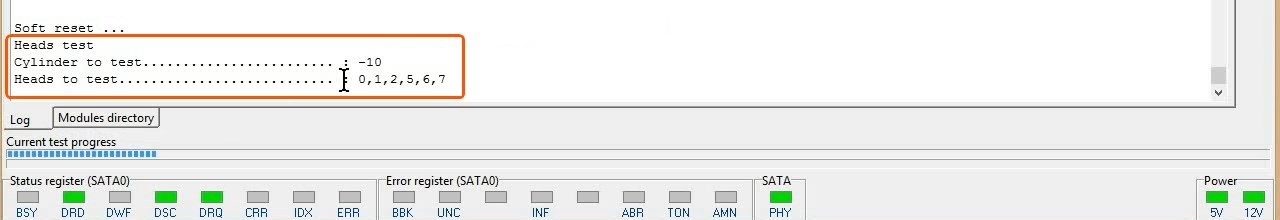

Choose the Log tab to see the process

這里我們可以看到測試結果
Here we can see the test results

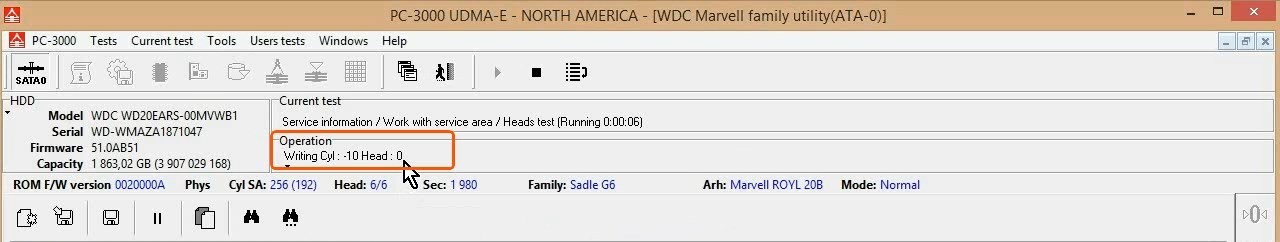

在這里我們可以看到正在測試哪個磁頭和測試階段。

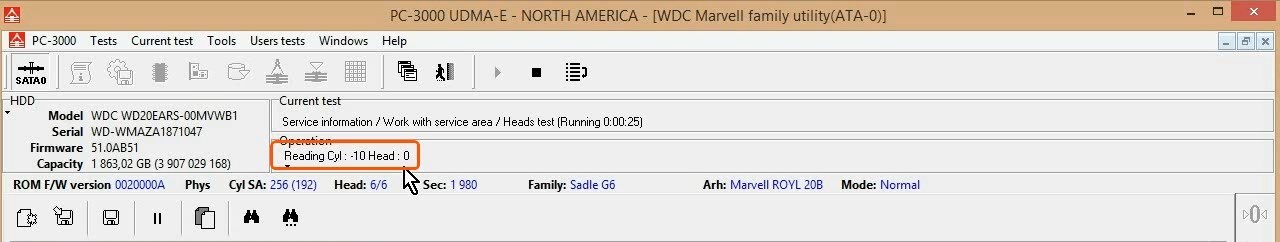

And here we can see which head is being tested and stage of the test.

在頭部測試的第一階段，它將特定的數據寫到盤片上的特殊位置
On the first stage of the head test it writes the specific pattern to the special place on the platter

在測試的第二階段，磁頭讀取數據并檢查它與寫入是否匹配
And on the second stage of the test the head reads data and checks that it matches with the pattern

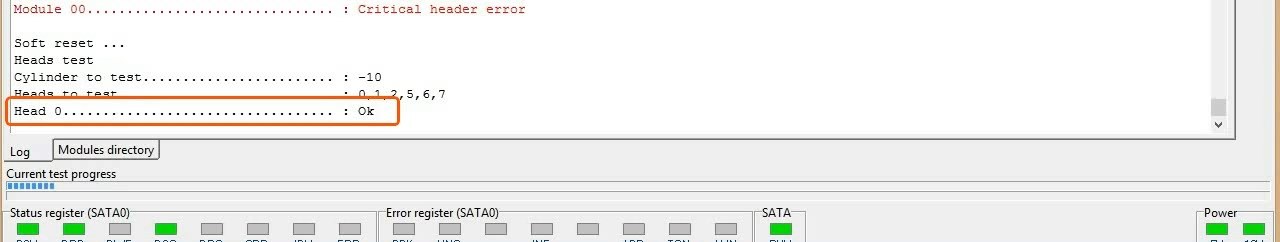

這里我們看到結果：磁頭0是正常的
Here we see the result: Head 0 is OK

磁頭1是也正常的
Head 1 is also OK

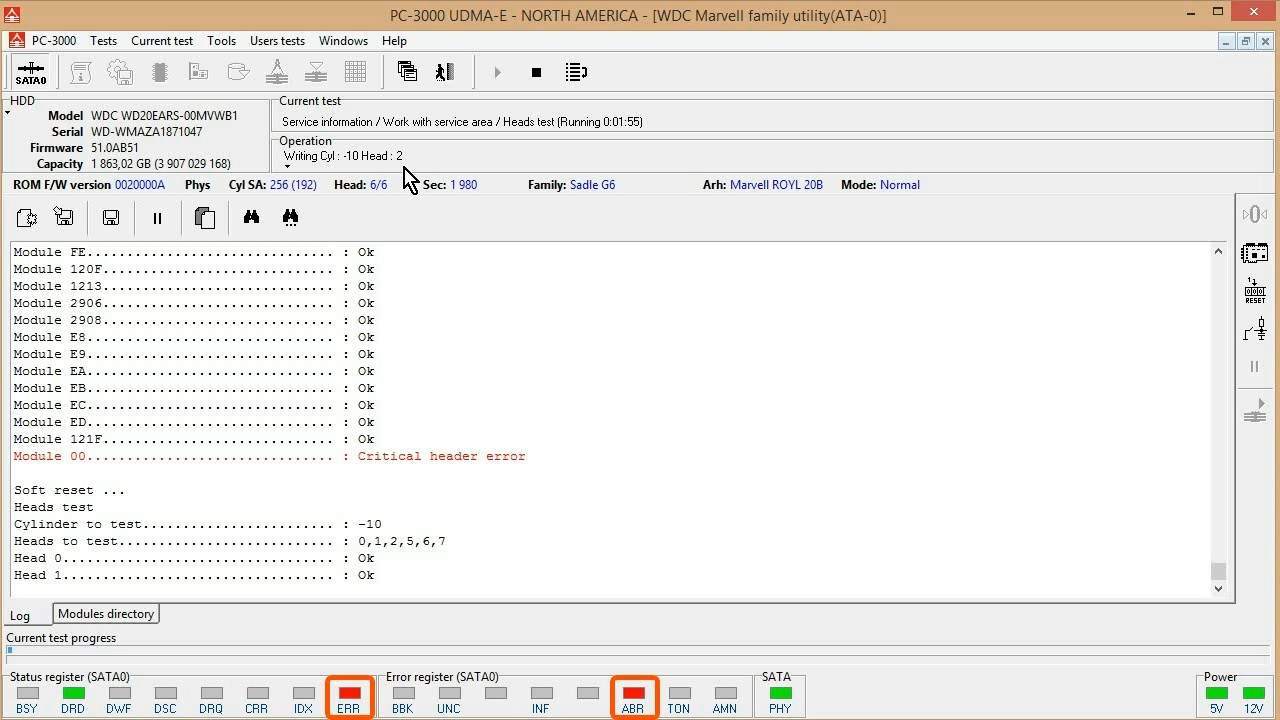

但是在這里我們可以看到磁頭2寫出現問題

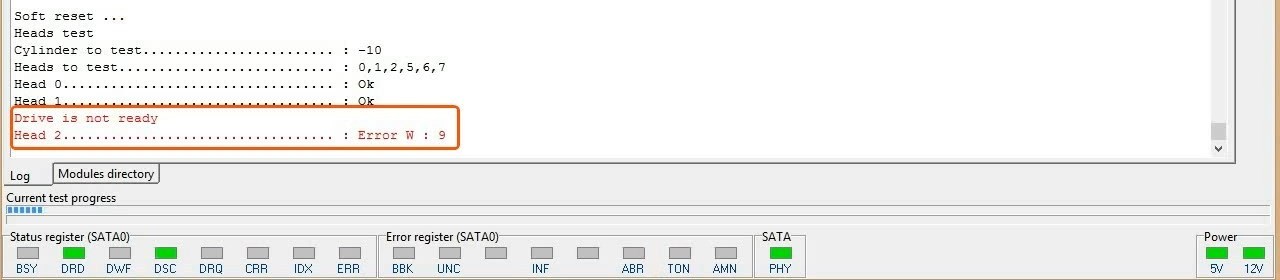

But here we can see problems with writing on Head 2

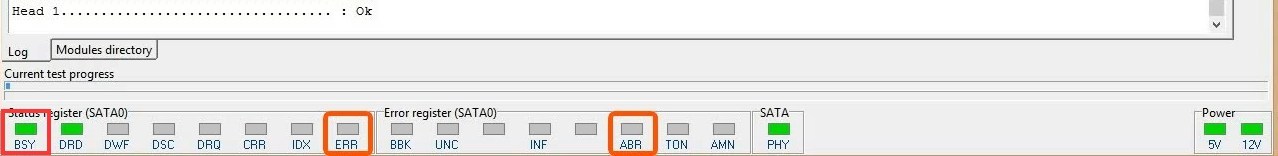

它顯示為ERR和ABR信號燈的閃爍，之后BSY信號燈常亮幾秒鐘
It appears as blinking of ERR and ABR flags and right after that the BSY flag stays ON for few seconds

一旦我們發現當前的磁頭部寫入（或讀到）有問題，我們可以按“跳過”按鈕來檢查其他磁頭

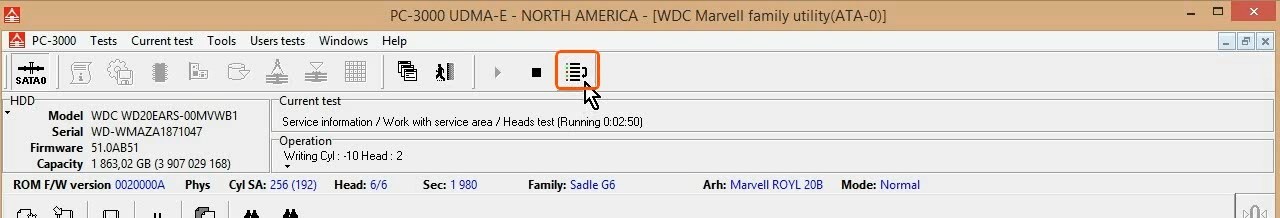

Once we understood that current head has problems with writing (or reading) we can push Skip button to check other heads

跳過后我們?cè)谌罩纠锟梢钥吹?磁頭2 是寫入有問題的

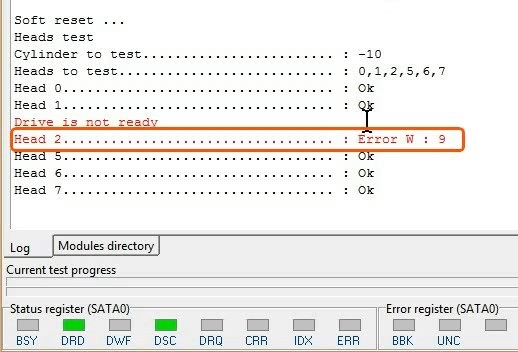

Right after skipping the head we see the result in log: Head 2 has writing problems

磁頭5,6和7已成功通過檢查。
Heads 5, 6 and 7 has successfully passed the checking.

所以磁頭檢測的結果是2頭壞了? 其他磁頭是好的，我們需要在RAM 磁頭位圖里用其他好的磁頭來替代損壞的2頭
So only Head 2 malfunctioned and it needs to be spared in RAM with other good working head

點擊Tests -> Service information -> Work with RAM -> RAM head map editing

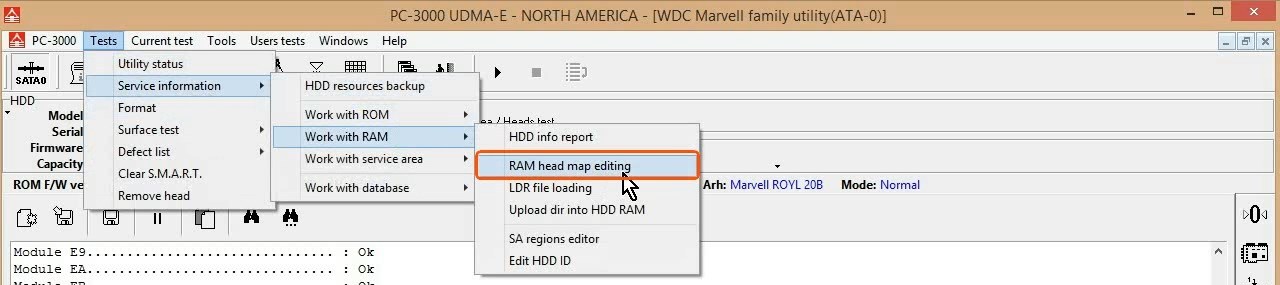

To do that we go to Tests -> Service information -> Work with RAM -> RAM head map editing

如果您在此步驟中收到錯誤消息，那么您應該嘗試手動將Loader上傳到RAM中。
If you get an Error message on this step then you should try to manually upload Loader into RAM.

現在我們可以看到 RAM 里面的磁頭位圖了

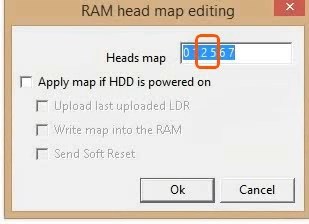

Here we see our current head map in RAM.

在這里我們用一個其他的磁頭號來代替損壞的磁頭2 ，用于替代的磁頭號是任意的（可以是2之外的任意一個， 在這里我們選用磁頭5）

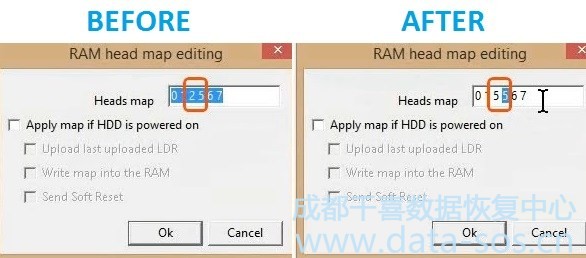

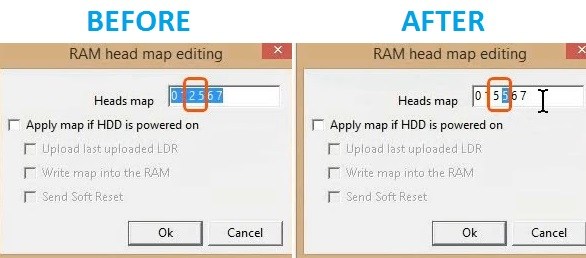

To spare your malfunctioning Head 2 we have to replace its number in map with number of any working head and press OK. In this example I choose Head 5

現在我們嘗試使用扇區編輯工具訪問用戶區
Now we try to get access to User Area using Sector Edit tool

看來運氣不太好
And no luck again

修改完后忘了點軟復位，所以導致訪問扇區出錯
It occurred because I forgot to give Soft Reset command to the drive.

進行軟復位
So let’s press the Soft Reset button

等到驅動器就緒
Wait until the drive is Ready

并再次運行扇區編輯工具。
And run Sector Edit tool again.

經過軟復位后，我們可以訪問扇區了? ，意味著用戶區可以訪問
Now it worked! We can see the data in the sector. So now we can read User Area.

所以現在我們可以切換到Utility Selection窗口并運行Data Extractor。不要關閉西數專修程序！

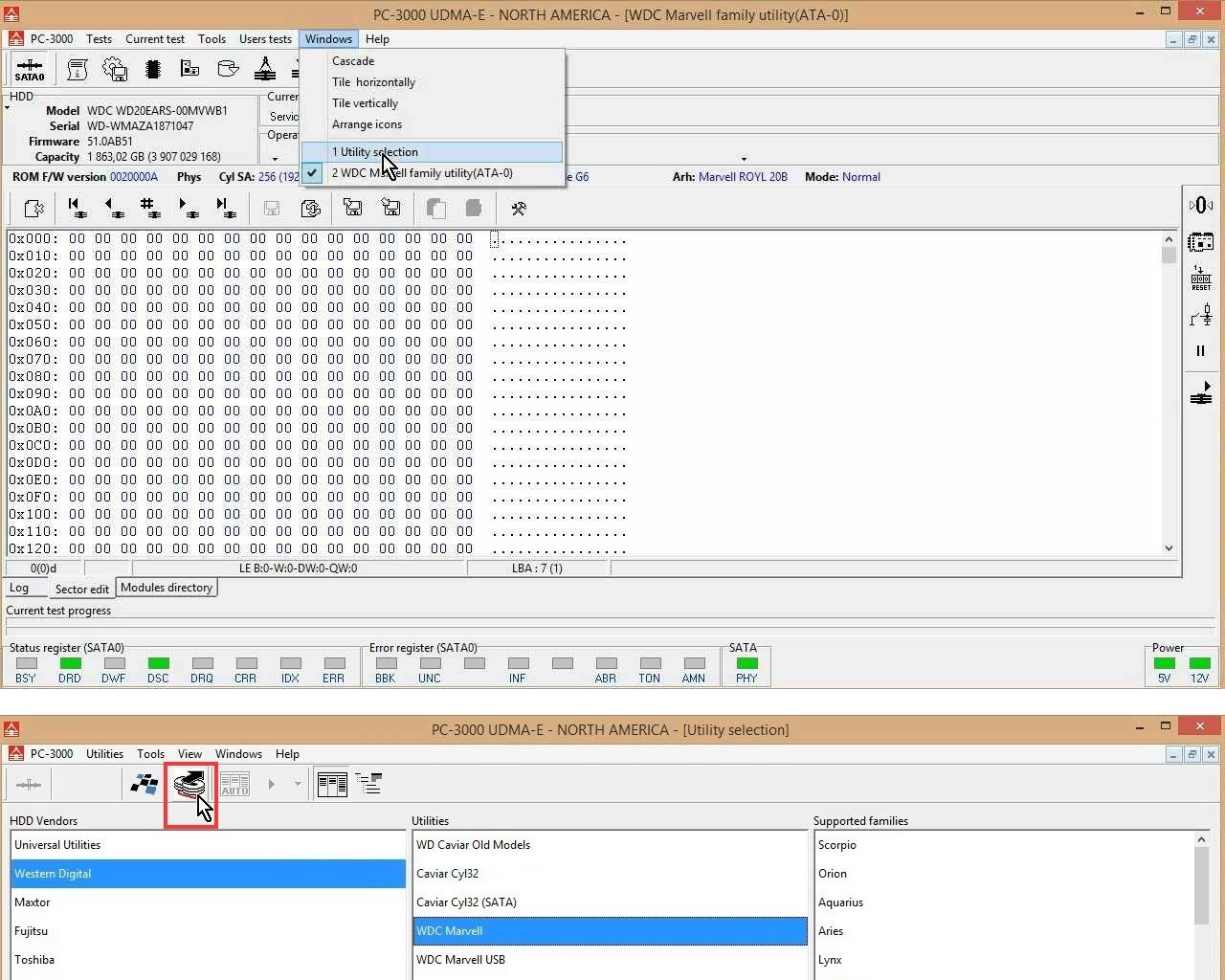

So now we can switch to the Utility Selection window and run Data Extractor. DO NOT CLOSE THE WD UTILITY NOW!!!

現在我們創建一個新任務
Now we create a new task

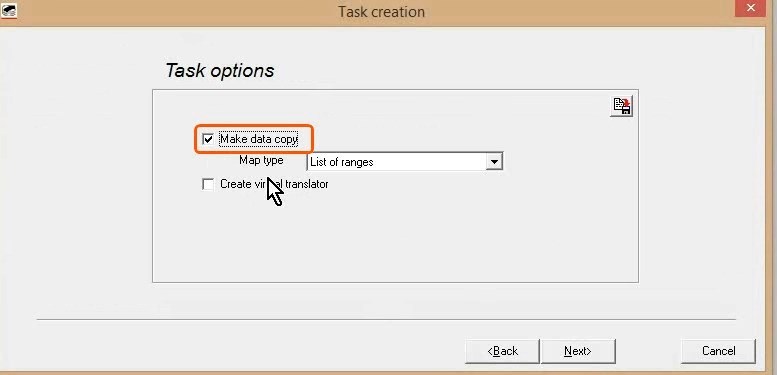

選中Make Data copy選項
with Make data copy option checked

建立磁頭位圖通過 Service menu -> Build heads map

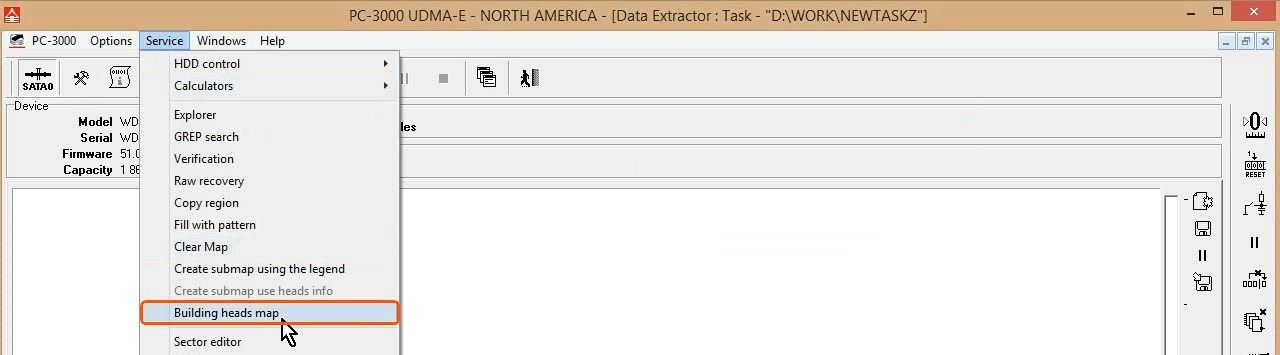

To build a new head map we go to Service menu -> Build heads map

我們需要所有LBA磁頭位圖，所以只需按應用按鈕
We need head map for the whole LBA space so just press Apply button

這里我們可以看到，磁頭位圖構建的過程已經完成

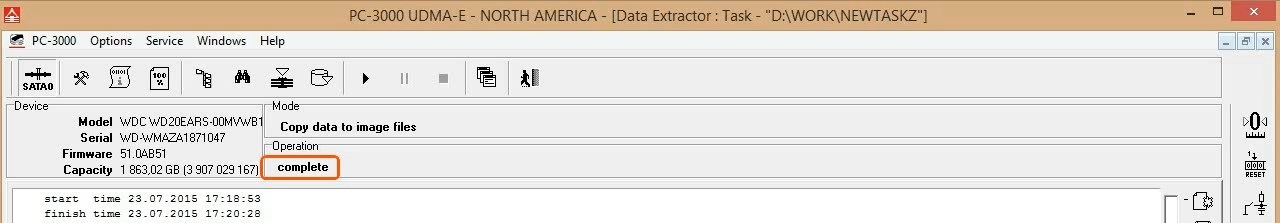

Here we can see that the process of heads map building is completed

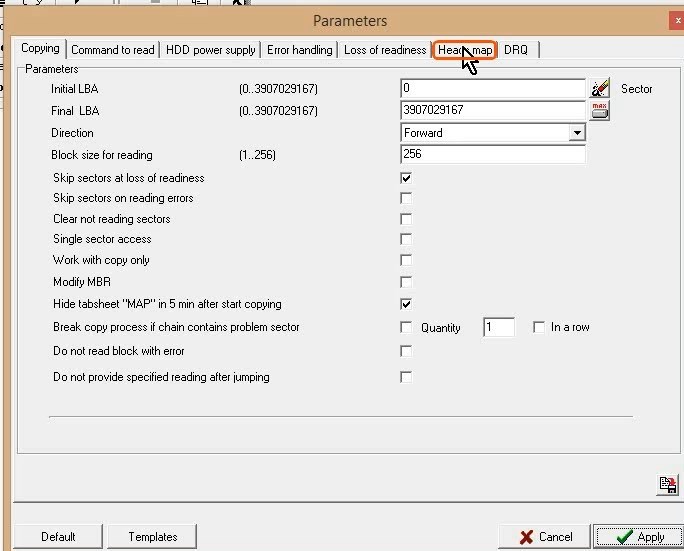

我們可以去任務參數進行調整

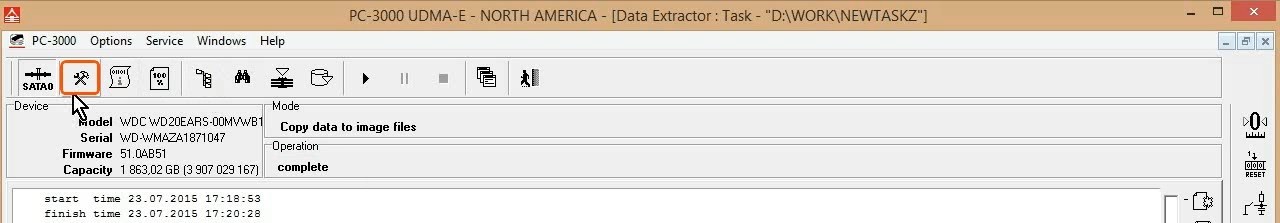

And we can go to Task params to make adjustments

選擇Heads map標簽
Now we go to Heads map tab

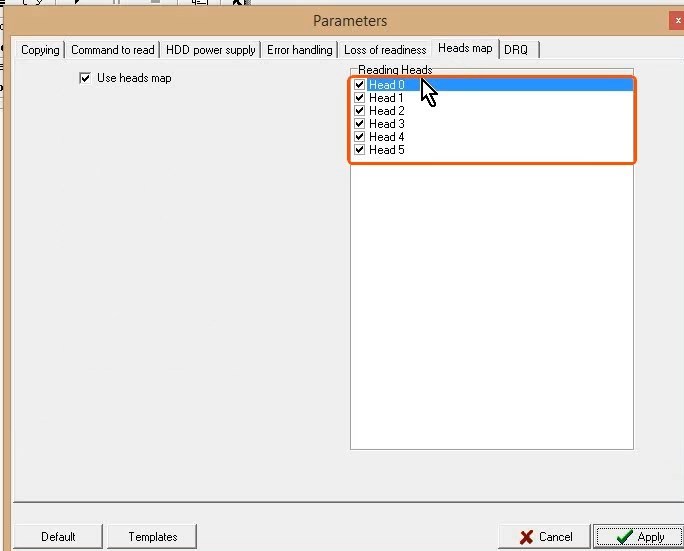

我看到了所有磁頭，選中的將用于讀取數據
Here we see the heads. Those which are checked will be used for drive image reading

取消選中故障磁頭2。

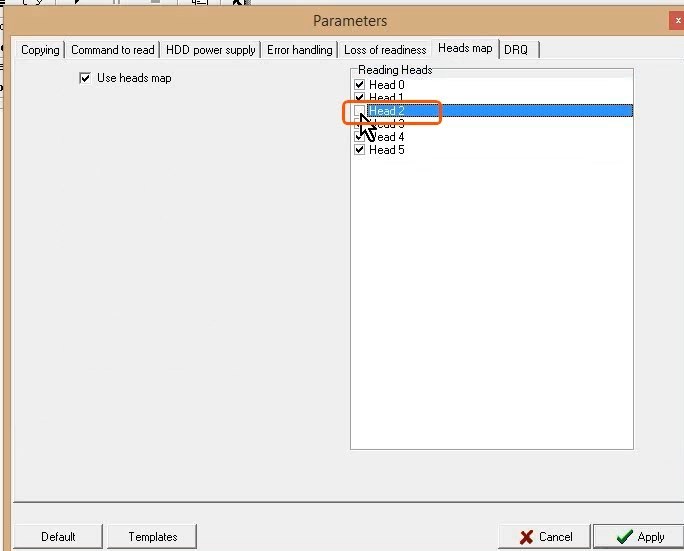

Uncheck malfunctioning head 2.

要特別注意這里的邏輯磁頭號（0,1,2,3,4,5），但在WD實用程序中，我們使用的是物理頭數（0,1,2,5,6,7）。所以你不應該記住數字，而是記住磁頭的位置
Pay special attention to the fact that heads here have logical numbers(0,1,2,3,4,5) but in the WD utility we worked with physical heads numbers(0,1,2,5,6,7). So you should remember not the number but the position of the head in stack

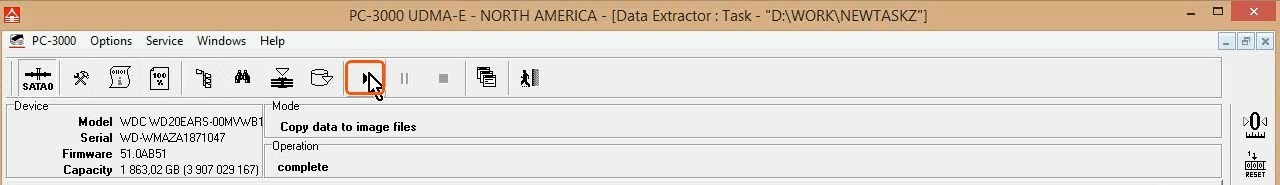

現在我們可以從選中工作的磁頭開始讀取硬盤的鏡像
Now we can start reading the image of the disk from working heads

故障磁頭的數據只有在我們更換整個磁頭后才可以獲得。但它是下一篇文章的主題。
The data from the malfunctioned Head we can get only if we replace the whole head stack. But it is a topic for one of the next articles.
