NAND Reader?讀取閃存

NAND_Reader.exe – is program that works with NAND flash memory

NNAND_Reader.exe -是與NAND閃存一起工作的程序

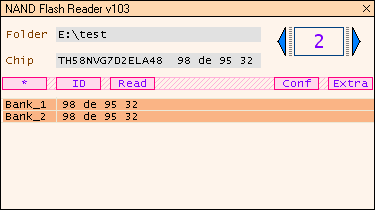

Controls 控制

Choose work folder where dumps will be stored
選擇存放dumps文件的工作文件夾

Choose chip
選擇芯片

Use arrows or double click to choose chip number

使用箭頭或雙擊選擇芯片編號

Select all banks

Read chip ID
讀ID

Read memory

讀存儲器

Configuration menu
配置菜單

Extra functions
擴展功能

It is possible that one chip have several memory dies (banks) inside
一個芯片可能有多個內存芯片

You can select which will be in work

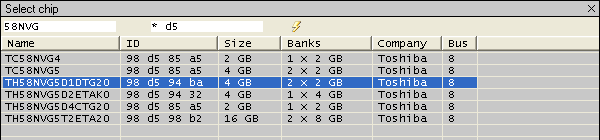

Chip select 芯片選擇

Double click to select chip

雙擊選擇芯片

Filter by name

按名稱過濾

Filter by ID

按ID過濾

Auto find chip

自動查找芯片

Reading 讀

1. Choose work folder where dumps will be stored
1.選擇存放dumps 文件的工作文件夾

2. Choode chip
2.選擇芯片

3. Choose chip number
3.選擇芯片的數量

4. Press * to select all banks
4.按*選擇所有banks

5. Press ID to check connection between chip and adapter
5.按ID檢查芯片和適配器之間的連接

6. Press Read to start read process
6.按Read開始讀過程

To stop process disconnect USB cable
停止進程斷開USB電纜

After successful read “FE” folder will be created in work folder. Chip.txt will be copied here. It contains chip paramaters
成功讀取“FE”文件夾后將在工作文件夾中創建。Chip.txt將被復制在這里。它包含芯片參數

Writing 寫

1. Choose work folder with dump files
1.選擇帶有dump 文件的工作文件夾

2. Choose chip
2.選擇芯片

3. Choose chip number
3.選擇芯片的數量

4. Press * to select all banks
4.按*選擇所有banks

5. Press ID to check connection between chip and adapter
5.按ID檢查芯片和適配器之間的連接

6. Press Extra->Write to start write process
6.按Extra->Write開始寫過程

To stop process disconnect USB cable
停止進程斷開USB電纜
