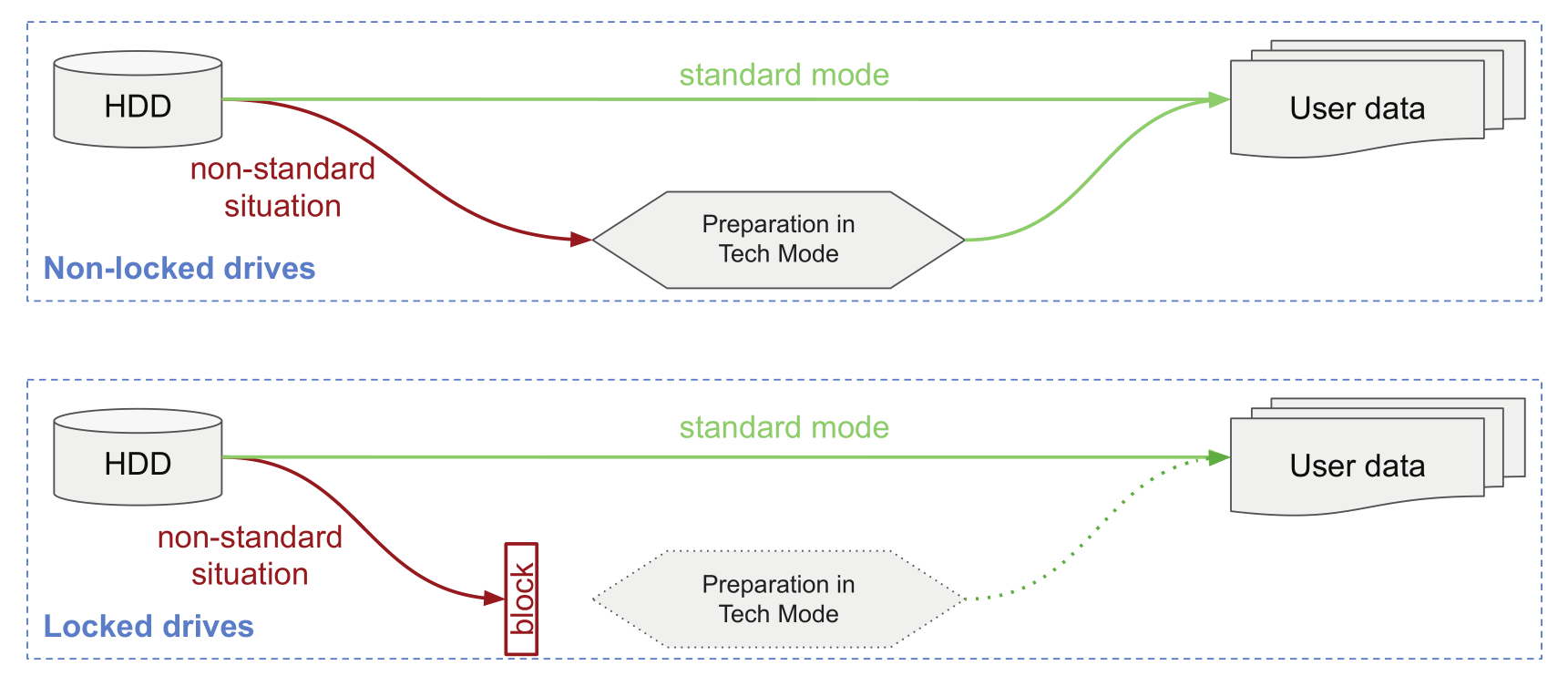

What is the problem?

Seagate加密驅動器幾乎阻止了所有的techno命令。例如，小型號1ER162,1ER1624和1ER166的Greanada驅動器輸入任何終端命令都回復“Diagnostic Port Locked”。所以你無法構建磁頭位圖，讀取和修復sys文件等

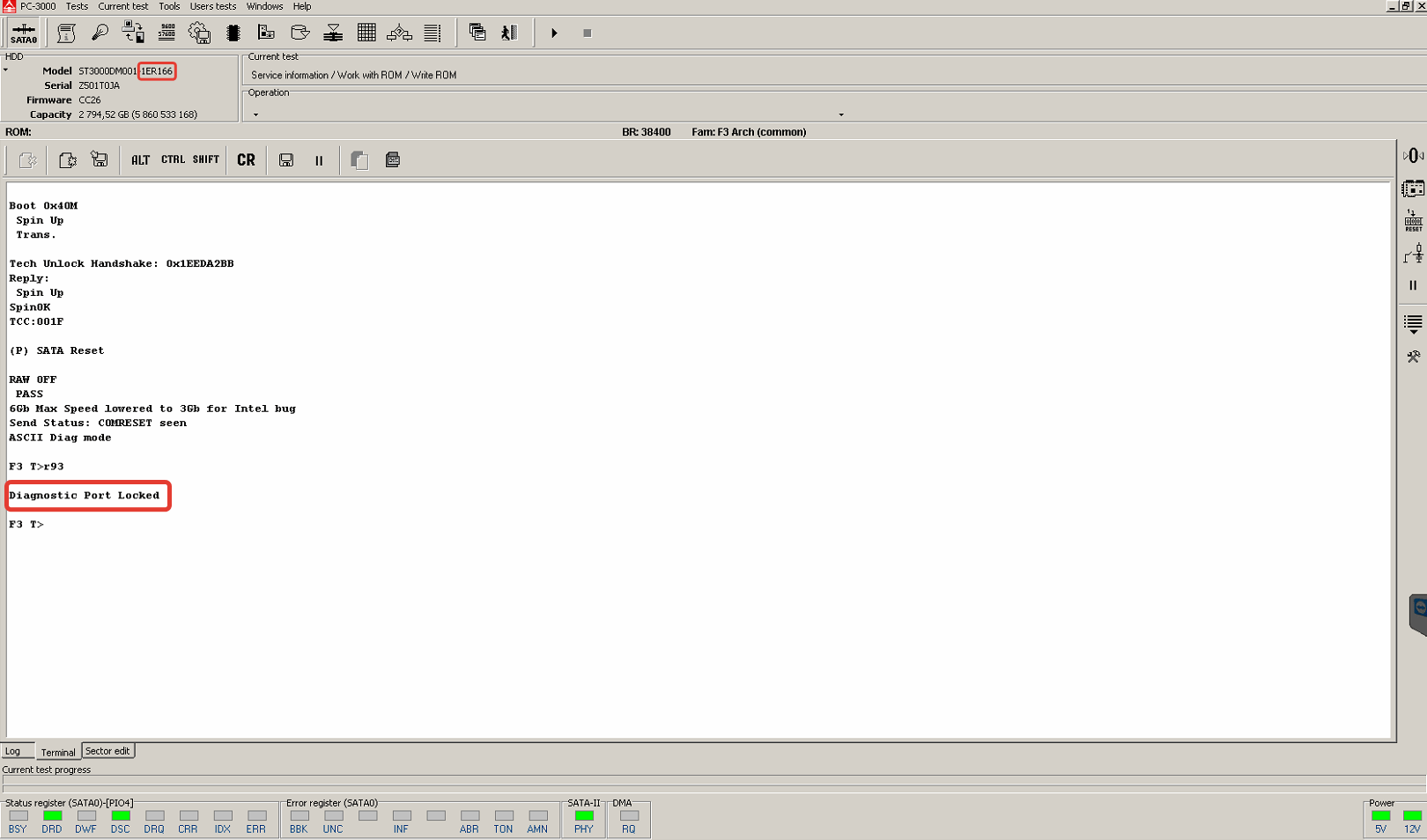

Seagate Self-Encrypting drives is blocking almost all techno commands. For example, Greanada drives with?part numbers 1ER162,1ER1624 and?1ER166 reply “Diagnostic Port Locked” to any terminal command. So you can’t build headmap, read and fix sys files etc.

解決辦法是什么？
What is the solution?

我們?cè)赗OM上做了一個特殊的添加，可以在運行微代碼的時候捕捉到控制和解鎖技術的模式。
We made a special addition to ROM which is able to catch the control and unlock techno mode at moment of running microcode from surface.

通過簡單按下按鈕可以分兩步進行解鎖
Unlocking is performed in two stages with a simple press of button

階段1.驅動器的準備：ROM補丁
Stage 1. Preparation of the drive: ROM patch?

階段2.解鎖驅動器：發送一個特殊的會話密鑰
Stage 2. Unlocking the drive: sending a special?session key

第一個按鈕（Tech mode unlocking preparation, Grenada”）通過啟動代碼保存ROM，修改它并將修改后的寫回HDD。第二個按鈕（“Unclock Tech, drive prepared by utility”）在終端命令終止后，發送一個特殊命令來解鎖techno模式。

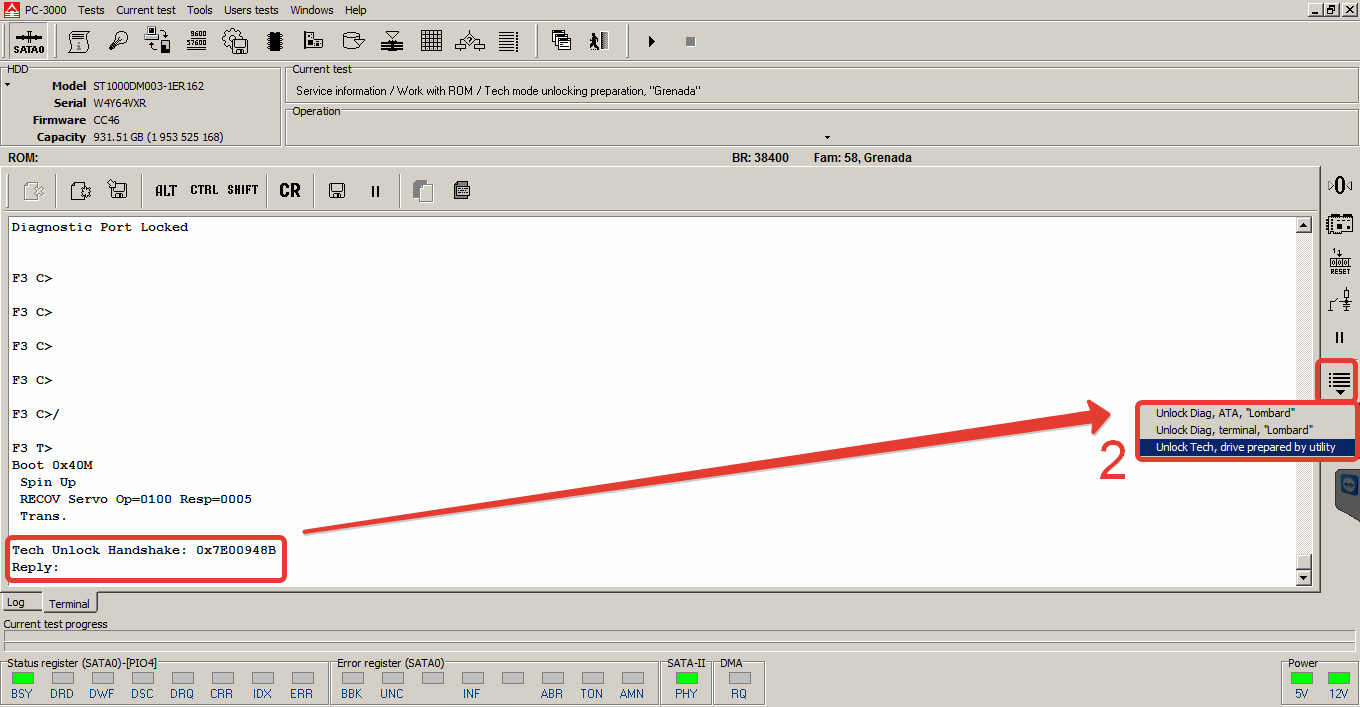

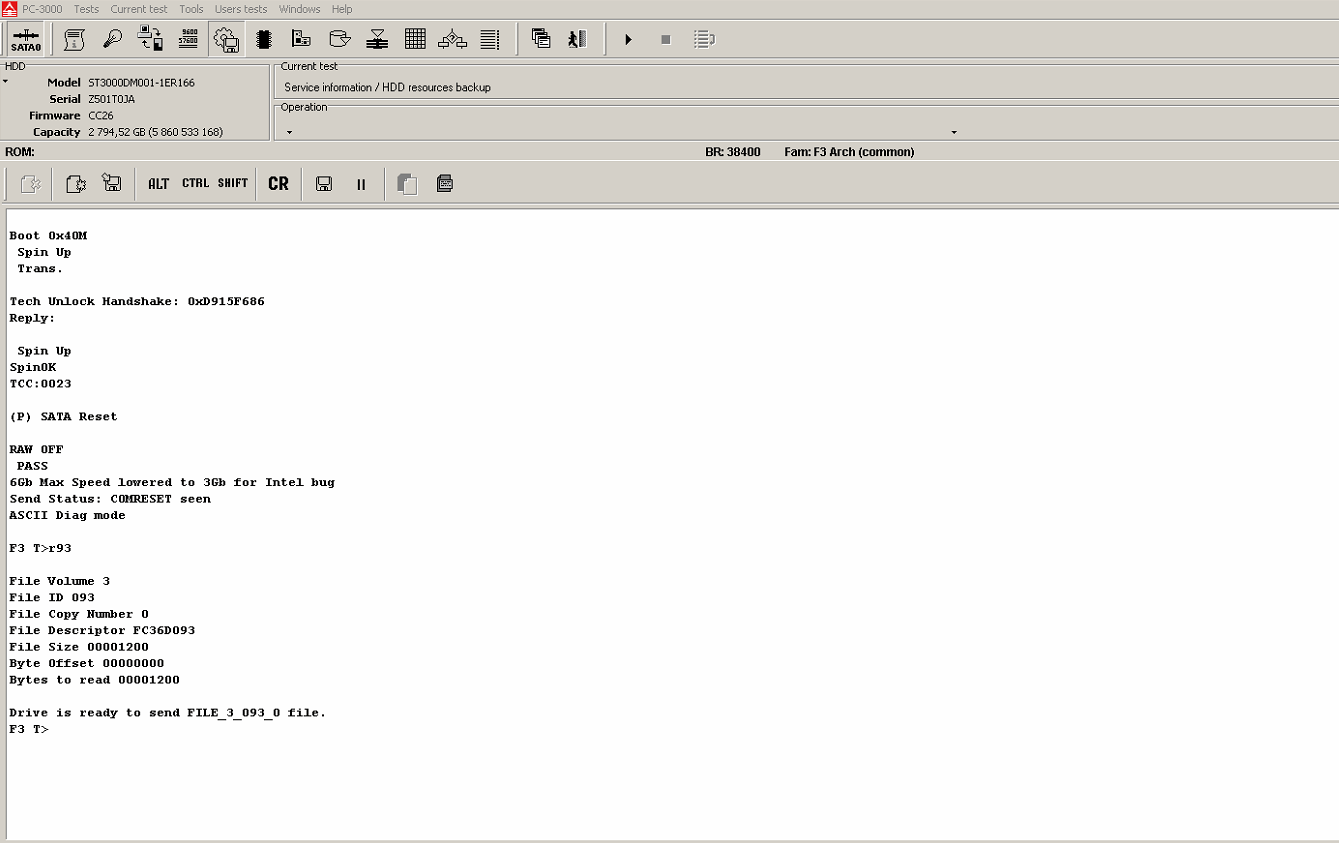

First button (“Tech mode unlocking preparation, Grenada”) save the ROM via boot code , modify it and write modified image back to HDD. Second button (“Unclock Tech, drive prepared by utility”) send a special command to unlock techno mode. After that terminal commands become working:
