你好朋友！今天，我們很自豪地向您提供期待已久的解決方案，以解決從鎖定的Seagate F3 Rosewood 硬盤數據恢復的難題。

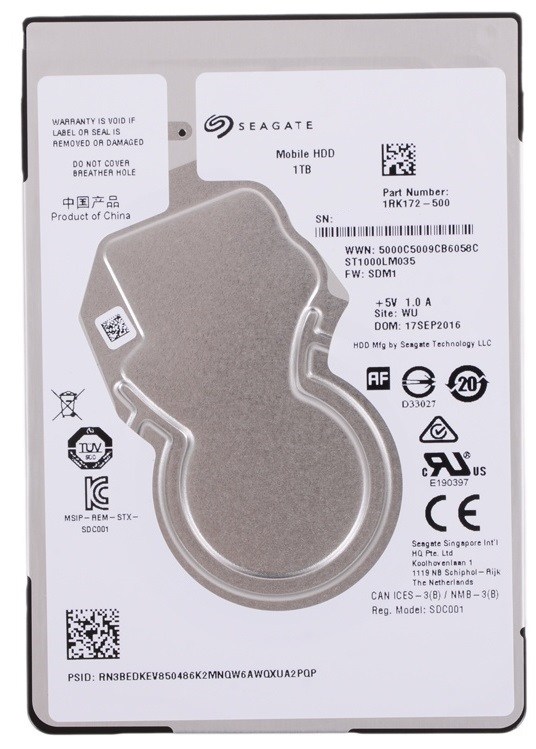

Hello, Friends! Today we are proud to present you the long-awaited solution to the very disturbing issue of recovering data from locked Seagate F3 Rosewood HDDs. The latest PC-3000 v.6.3.12 update brings you the ability to repair damaged Rosewood hard drives and extract data from them. In this article, we will show you how to access the Service and User Areas of your locked patient device in a few clicks.
Let’s see the new feature of the PC-3000 hardware-software in action by getting access to the concealed areas of the ?Seagate F3 HDD.
當您啟動實用程序嘗試修復Rosewood家族驅動器并從中恢復數據時，您會收到以下消息：

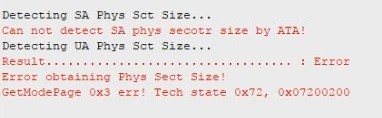

When you start the Utility trying to repair Rosewood drives and recover data from them, you get the following message:
此錯誤意味著Seagate F3驅動器被鎖定，SA不可訪問。
This error means, that the Seagate F3 drive is locked and SA is unavailable.
要訪問SA，您應該使用COM端口讀取ROM。轉到Tools->Utility extensions->Work with Flash ROM image file。

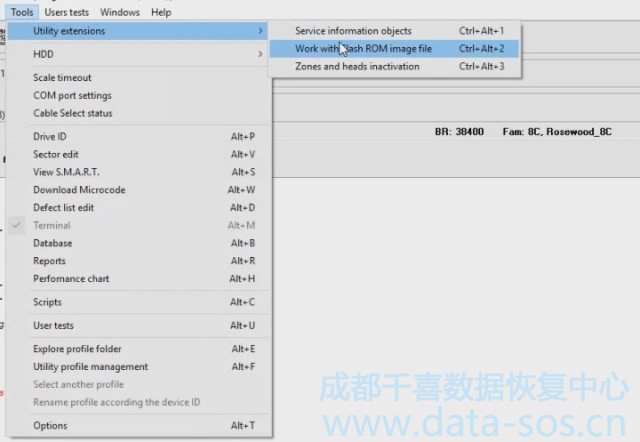

To get access, you should read the ROM using the COM-port. Go to Tools->Utility extensions->Work with Flash ROM image file.

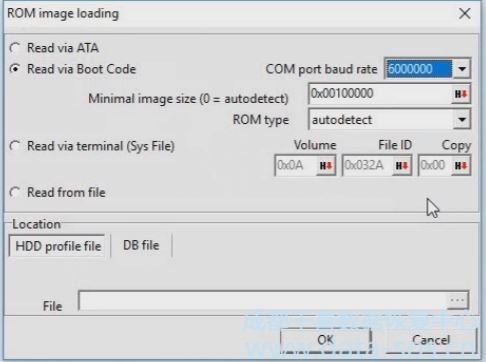

并讀取ROM：
and read the ROM:
在下一個窗口中，您應該按下帶有感嘆號的按鈕（?。?，然后選擇 Tech mode unlocking preparation, (patch)?。
In the next window, you should press the button with an exclamation mark (!) and select the?Tech mode unlocking preparation, (patch)?position.
在彈出的窗口中選擇“否”
Select “No” in the pop-up:
并記錄結果在日志報告中：
and note the report of the positive result in the log:
不要忘記在Work with ROM中按下應用按鈕來保存ROM中的更改:
Don’t forget to ?save the changes in ROM by pressing the Apply button in the same Work with ROM tab:
并關閉/打開驅動器電源。
And switch the drive power off/on.
在Seagate F3 Rosewood HDD重新啟動后，您將在“終端”選項卡中看到以下消息：
After the Seagate F3 Rosewood HDD restarts, you will see the following message in the Terminal tab:
現在您需要使用 Unlock Tech, drive prepared by utility ，就像我們使用PC-3000解鎖Seagate F3固件區加密硬盤所做的那樣：

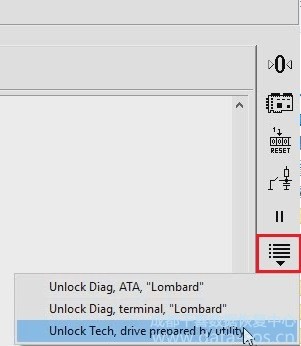

Now you use the Unlock Tech, drive prepared by utility menu item, just as we did it for the locked SED drives:
驅動器處于就緒狀態，并顯示正常的終端消息：

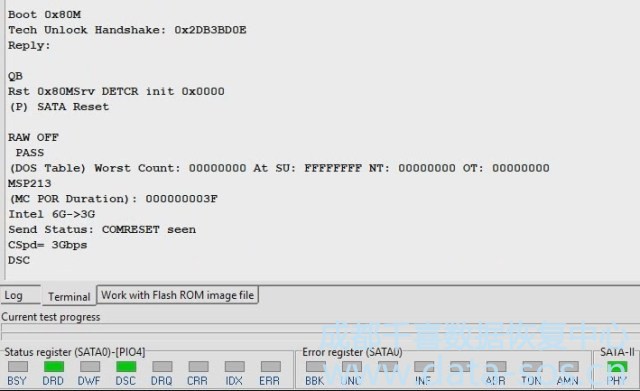

The drive gets in a ready state with the usual terminal messages:
在Utility status刷新后：
After the Utility status is refreshed:
您可以訪問服務區：

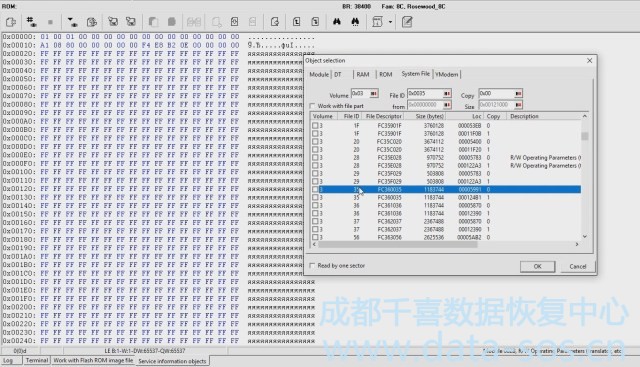

You have the ?access to the Service area:
以及用戶區：

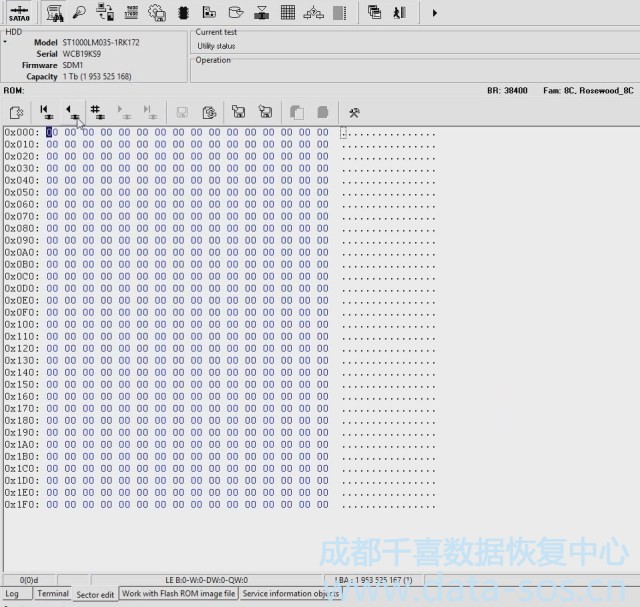

as well as the ?User area:
如果需要重新啟動驅動器，請執行Unlock Tech, drive prepared by utility，或從啟動實用程序菜單中發送unlock命令：

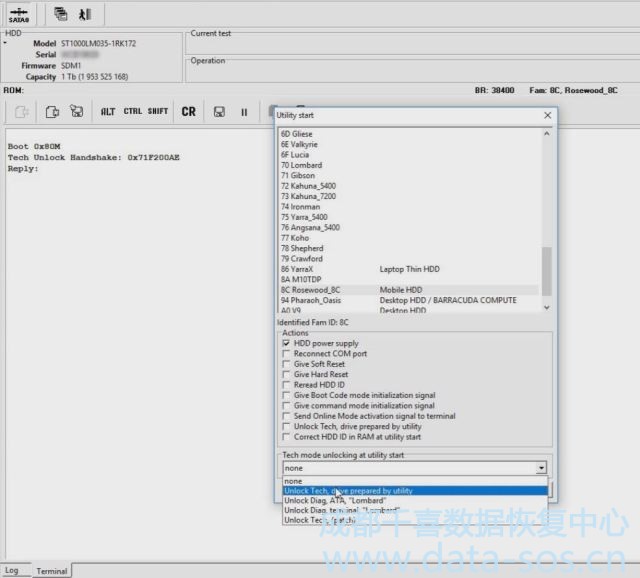

If you need to restart the drive, perform the Unlock Tech, drive prepared by utility function once again, or send the unlock command from the start utility menu:
解鎖演示視頻
