FAT 32 table

FAT table is used for determination of condition of clusters and for searching next cluster of file or catalog.
FAT表用于確定簇的狀態，并用于搜索下一個文件或目錄集。

One record about condition of cluster uses 4 bytes (32 bits) in FAT32.
The first sector of FAT32 table starts with signature?F8 FF FF.
FAT32表的第一個扇區以簽名F8 FF開頭。

Free space is marked with signature?00 00 00 00. The end of the file is marked with signature?FF FF FF F8?–?FF FF FF FF. The damaged cluster is marked with signature?FF FF FF F7?.

Searching for file tables using Hex Editor:
使用十六進制編輯器搜索文件分配表：

F8FFFF/h?– put to find the first sector of FAT tables
F8FFFF / h?– 找到FAT表的第一個扇區

01070000020700000307070000/h?– put to find the 7th sector of FAT tables.
0107020703070407/h?– 找到第七扇區的FAT表。

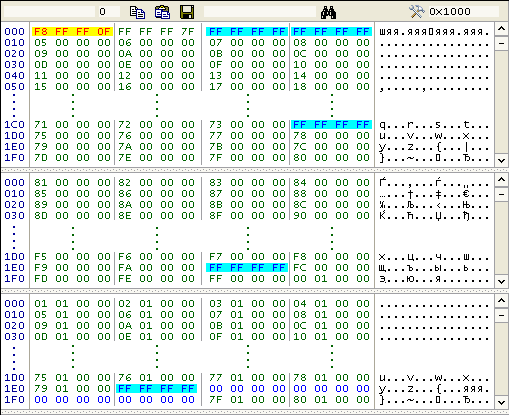

There is the special view of the first three sectors of FAT32 table on the picture above.
FAT32表前三個部分的特點如上圖所示。
