Let’s imagine the following situation:
讓我們想象一下下面的情況

After you have finished recovering data, you get only a sequence of binary files which contains recovered raw data that were deleted or corrupted (e.g. task.prm, map.bin, and other files related to the task settings). Or, say, you have used some other tool for data imaging and got some sequence of binary data files as well.
完成數據恢復之后，您只會獲得一系列二進制文件，其中包含已刪除或損壞的恢復的原始數據（例如task.prm，map.bin以及與任務設置相關的其他文件）。 或者說，您使用了其他一些工具進行數據鏡像，并且還獲得了一些二進制數據文件序列。

What to do with this? Let’s find it out in our new article
這個怎么辦?讓我們在我們的新文章中找出答案

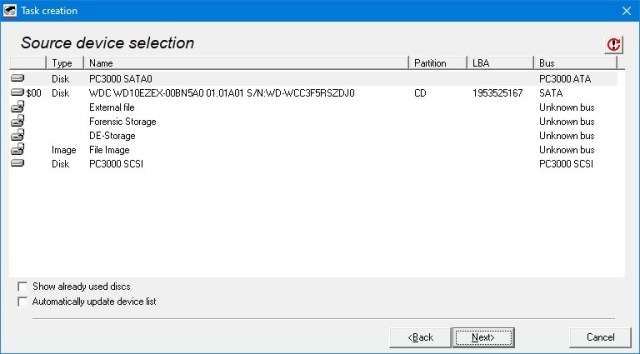

The PC-3000 Data Extractor software allows you to work with different source devices:
PC-3000 Data Extractor軟件允許您使用不同的源設備：

…for the current task we are interested in the following points:
…對于當前任務，我們對以下幾點感興趣：

– External file
– File Image

If we choose?“External file“, then we need to select any single file for research in the Data Extractor software tool.
如果選擇“外部文件”，則需要在Data Extractor軟件工具中選擇任何單個文件進行分析。

But it’s only a single file, and our case is a sequence of files.
但這只是一個文件，我們的案例是一系列文件。

If we choose?“File image“, then we can select the folder with the previously created DE task, but it should contain?task.prm?and other files created for the previous task.
如果選擇“文件映像”，則可以選擇包含先前創建的DE任務的文件夾，但該文件夾應包含task.prm和為先前任務創建的其他文件。

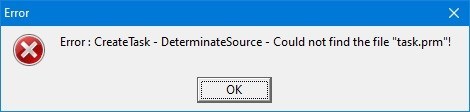

Otherwise, the DE software shows an error and doesn’t allow creating a new task.
否則，DE軟件會顯示錯誤，并且不允許創建新任務

So, what to do?
那么該怎么辦？

It’s necessary to merge all binary files into one big binary file. And the default Windows command will come to help us.
有必要將所有二進制文件合并為一個大的二進制文件。 默認的Windows命令將為我們提供幫助

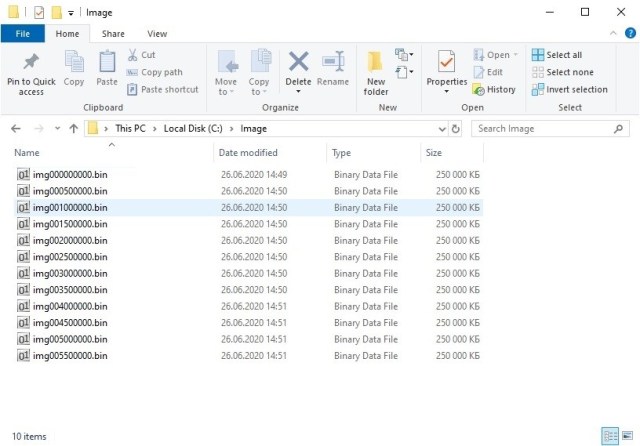

First of all, you need to put all necessary bin files into one folder (it’s better to use the folder created in the Root folder of the Local drive).

For example?C:\Image?(or any other local drive)

首先，您需要將所有必要的bin文件放入一個文件夾中（最好使用在本地驅動器的Root文件夾中創建的文件夾）。

例如C：\ Image（或任何其他本地驅動器）

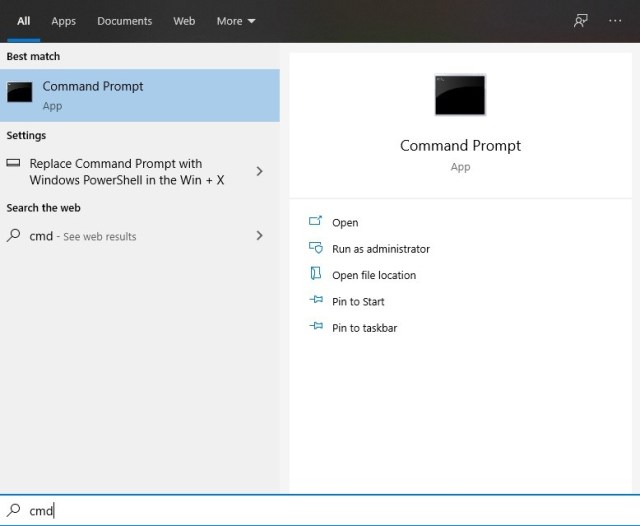

Then open?Command Prompt?application with?‘cmd’
然后使用“cmd”打開“命令提示符”應用程序

After that go to your folder (where the bin-files placed)
之后，轉到您的文件夾（bin文件所在的位置）

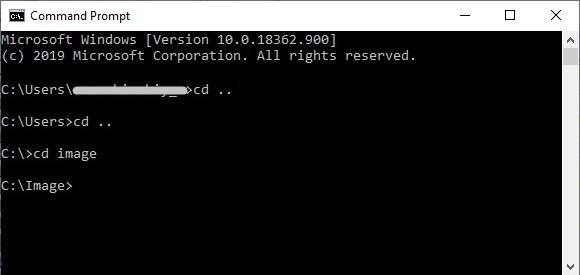

‘cd’?command allows users to navigate.
‘cd..’?– go to the parent folder
‘cd *name*’?– go to the folder with the typed name.

In our case, we need the?C:\Image?folder
在我們的例子中，我們需要C：\ Image文件夾

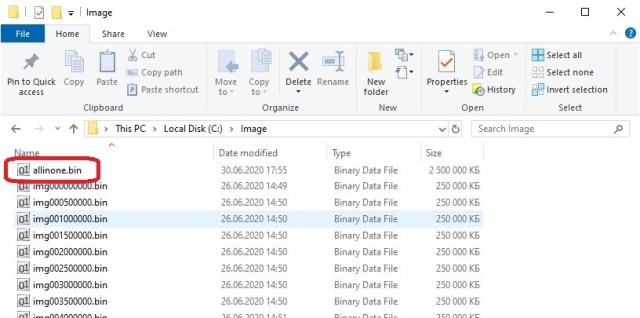

Now you can create a new Data Extractor task, choose the?“External file”?option as a source device, select our new?‘a(chǎn)llinone.bin’?file, and investigate it.
現在您可以創建一個新的Data Extractor任務，選擇“外部文件”選項作為源設備，選擇我們的新的“allinone.bin”文件并進行分析。

Or you can open this file in any other Data Recovery tool for research.
或者，您可以在任何其他數據恢復工具中打開此文件進行分析。

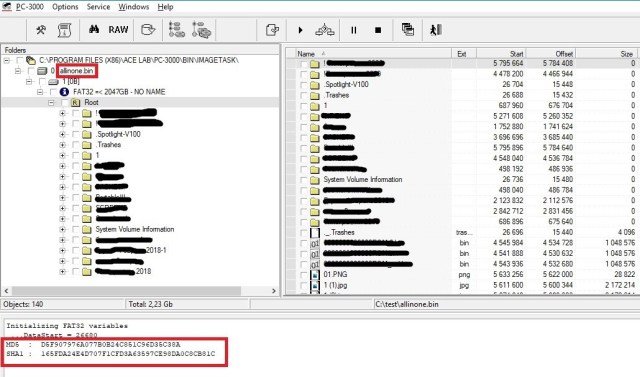

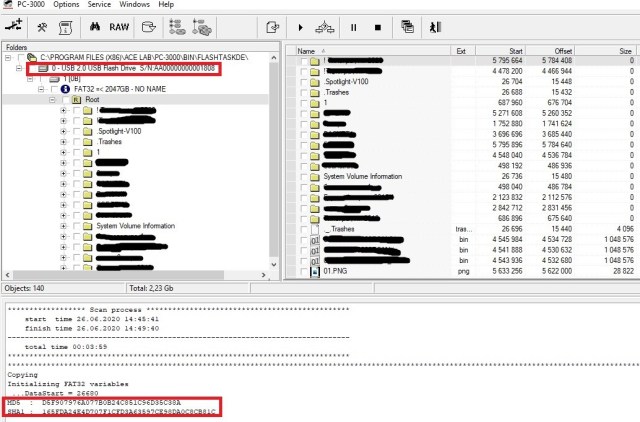

Take a look at the Hash-sum. You can be sure that the merged file is absolutely the same as your source files. Everything is the same including the Hash-sum.
看一看哈希值。 您可以確定合并后的文件與源文件完全相同。 包括哈希和在內的所有內容都相同。

Please note:

If your image is not full (e.g. you just expanded the partition and made a copy of some files without imaging of the whole user area), then the bin-files partition can be corrupted after the merging, the Hash-sum will also be different, but all the imaged files still be available in the?RAW?scan.
如果映像不完整（例如，您只是擴展了分區并制作了一些文件的副本而沒有整個用戶區域的映像），則合并后bin文件分區可能會損壞，哈希和也將有所不同 ，但是所有圖像文件在RAW掃描中仍然可用。

P.S. Be sure that your Local drive has enough free space for storing this new big file.

P.S.確保您的本地驅動器有足夠的可用空間來存儲此新的大文件。

Bonus: This cmd command also helps to merge sequence of txt-files?::__IHACKLOG_REMOTE_IMAGE_AUTODOWN_BLOCK__::10
此cmd命令還有可以合并多個txt文件
