在希捷硬盤數據恢復時，您可能會遇到自加密Seagate驅動器，該驅動器的所有者設置了用戶密碼。通用的“重置密碼”選項不起作用，因為該選項需要關閉電源/開啟電源，并且驅動器已SED鎖定。
Sometimes you may come along a Self-Encrypted Seagate drive that has a user password set by its owner. A common ‘Reset password‘ option doesn’t work because the option requires Power OFF/ON step, and the drive is?SED locked.

如何處理此案？在下面的文章中找到逐步的過程。
How to deal with this case? Find the step by step procedure right in the article below.

該解決方案可用于任何自加密Seagate F3驅動器
This solution can be used on any Self-Encrypted Seagate F3 drive.

(Grenada with?1ER*** part number,?Rosewood A5, 8C, AE, AF , V9, V11, M11,?and others with locked diagnostic port)

所描述的過程需要短路，并且在我們開始之前，有必要確定PCB的準確讀取通道點并找到短路所需的引腳。
The described procedure requires shorting, and before we start it’s necessary to determine exact reading channel points for your PCB and find pins that are necessary to short.

你可以在哪里以及如何短接希捷F3硬盤以便進行數據恢復工作？一文中尋找答案
You can read how to find such a pair in?this article.

我們將展示現代Rosewood 8C系列驅動器上的密碼刪除過程。
We will show the password removing process on modern Rosewood 8C family drive.

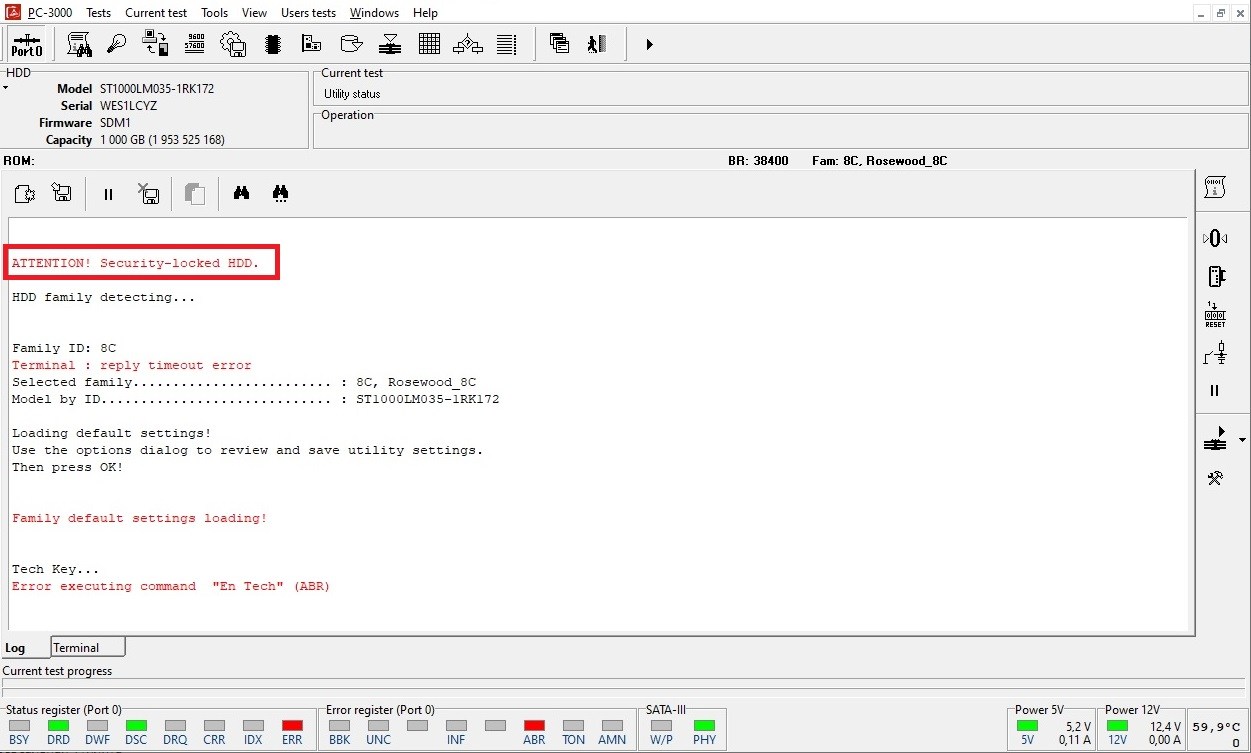

接通電源后，我們可以在日志報告中看到該驅動器具有安全鎖定消息，這意味著該驅動器具有用戶密碼。
After power on, we can see in the log report that the drive has a Security lock message which means that drive has a user password.

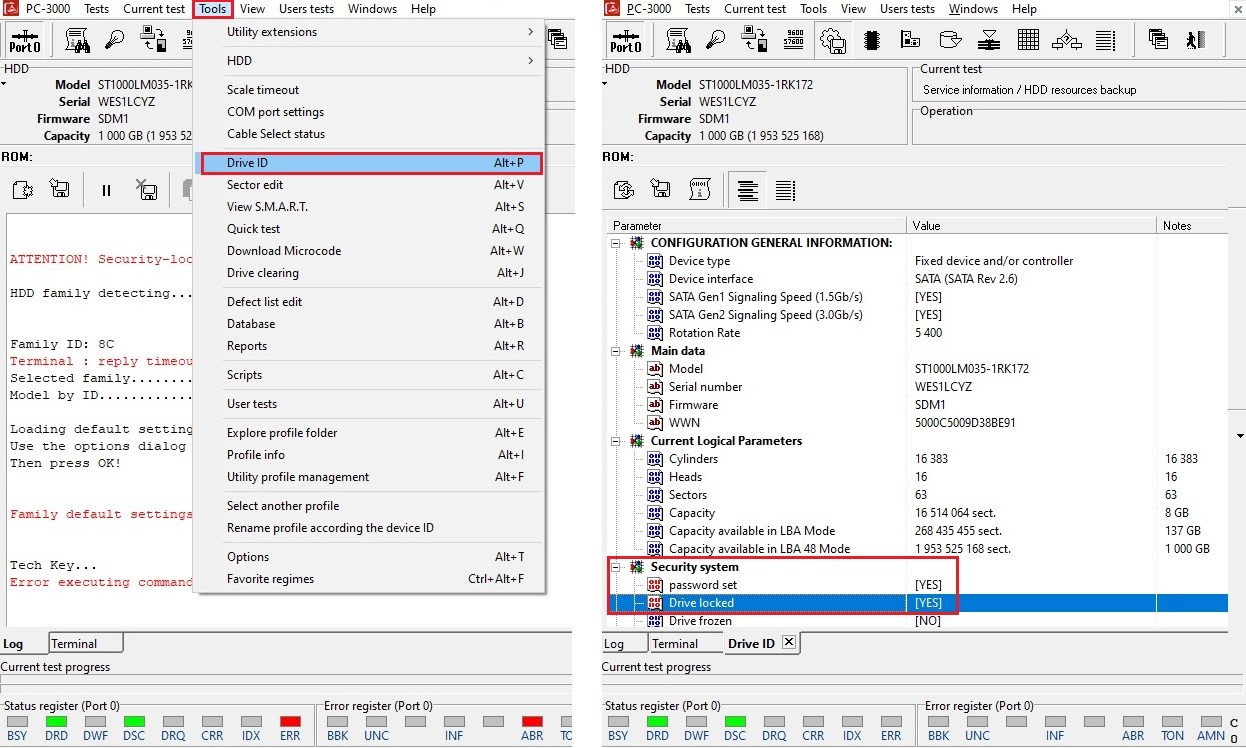

在“驅動器ID”窗口中，它還會顯示有關已設置密碼的信息。
In the Drive ID window it’s also showing information that the password was set.

像往常一樣，有必要先修補ROM（可以參考 希捷硬盤數據恢復之解鎖固件加密的希捷硬盤 一文）以繞過SED鎖。結果，我們在終端中收到以下消息報告

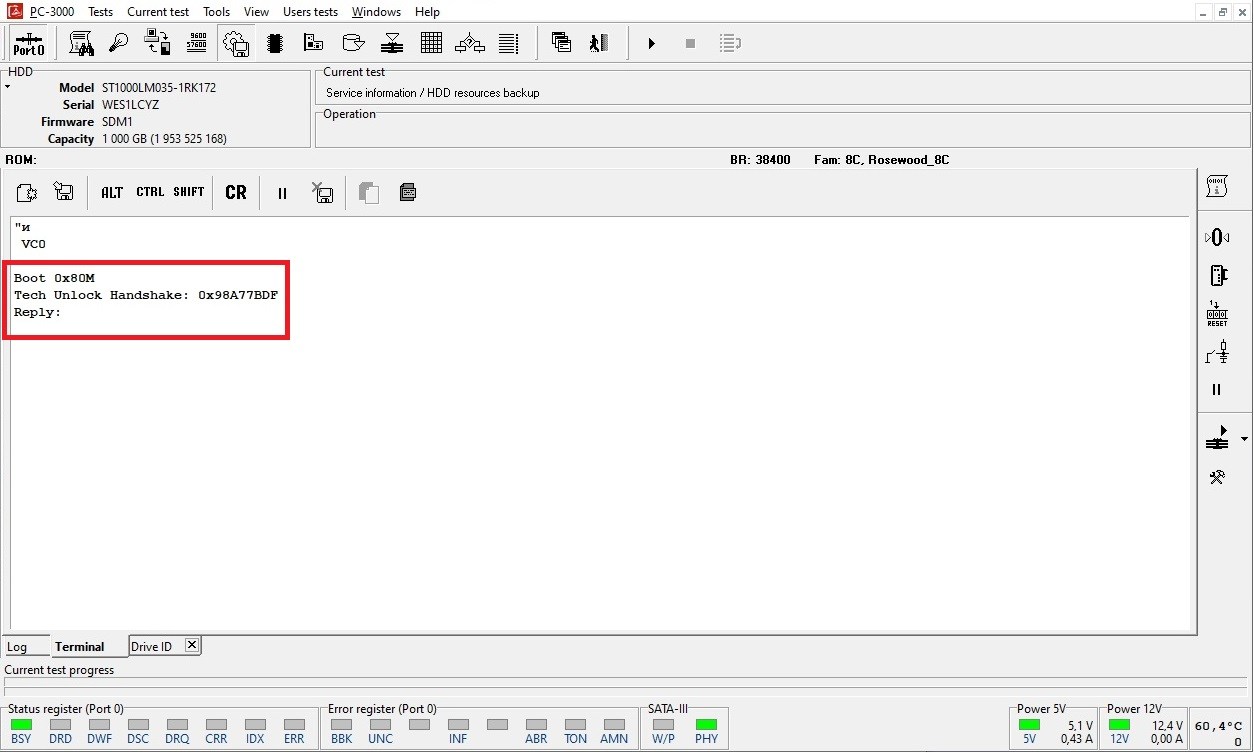

As per usual, it’s necessary to first?patch the ROM?to bypass the SED lock. We get the following message report in the terminal as a result
