我們生活在電腦可以被惡意軟件感染的世界里。最著名的例子是WannaCry，它感染了世界不同國家的許多電腦。然而，還有許多其他惡意軟件蠕蟲在系統和目標計算機上執行。
You know that we are living in the world where PCs can be infected with malware. The best-known example is WannaCry which infected many computers in different countries of the world. However, there are many other malware worms which execute?on a system and target computer running.
通常，惡意軟件利用Microsoft Windows操作系統中的大多數情況下使用NTFS文件系統的漏洞。因此，我們想提供幾個示例，數據提取器可以恢復作為惡意軟件攻擊目標的NTFS分區。
Usually, malware exploits a vulnerability in Microsoft Windows operation system where the NTFS file system is used in most cases. So we would like to give couple examples how Data Extractor can recover NTFS partition which was a target of malware attack.
最初很少有關于NTFS文件系統結構的理論。你可以在這里讀到的基本細節。
Initially few theory about NTFS file system structure. Base details you can read here.

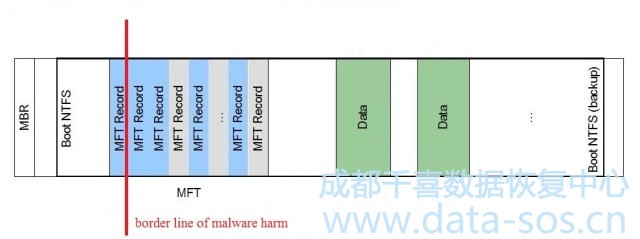

在我們的例子中，MBR、GPT表、主NTFS引導和幾個MFT記錄被擦除。
In our case, MBR, GPT table, main NTFS boot and several MFT records were erased.
但是，大多數NTFS分區和NTFS引導副本都沒有受到損壞，并且可以像這里一樣:
However, most of the NTFS partition and NTFS boot copy escape unharmed and can be imaged like here:
如果您是一個數據恢復專家，那么您就知道您可以使用引導副本來獲得關于整個分區的實際信息。該選項適合這種情況，即“快速磁盤分析”，它在開始和結束時搜索文件系統結構，并嘗試根據已發現的文件系統結構構建整個分區。
If you are a detective or data recovery specialist then you know that you can use boot copy to get actual information about the whole partition. The option is suited for this case is ‘Quick disk analysis’ which searches?file system structures in the beginning and in the end of the drive and tries to build the whole partitions based on found file system structures.

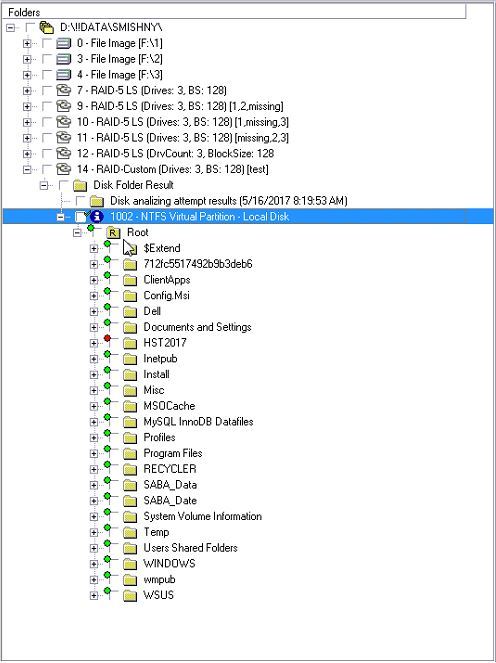

在“快速磁盤分析”之后的結果如下:
The results after ‘Quick disk analysis’ option look like here:
我們現在正在處理數據提取器中的虛擬分區?，F(xiàn)在我們可以恢復分區大部分的文件.但如果你是一名偵探或一名惡意軟件研究員，你可能想要調查另一款軟件的惡意軟件行為。
We are working with the virtual partition in Data Extractor now. And we can recover most files of the partition right now. But if you are a detective or a malware researcher then you maybe want to investigate the evidence of malware actions by another software.
The main problem, in this case, is that you can’t open recovered NTFS partition without Data Extractor (boot is lost). PC-3000 Data Extractor allows to rebuild lost file system structures and you will be able to investigate?the evidence of malware actions by another software.
There are two methods do that in Data Extractor:

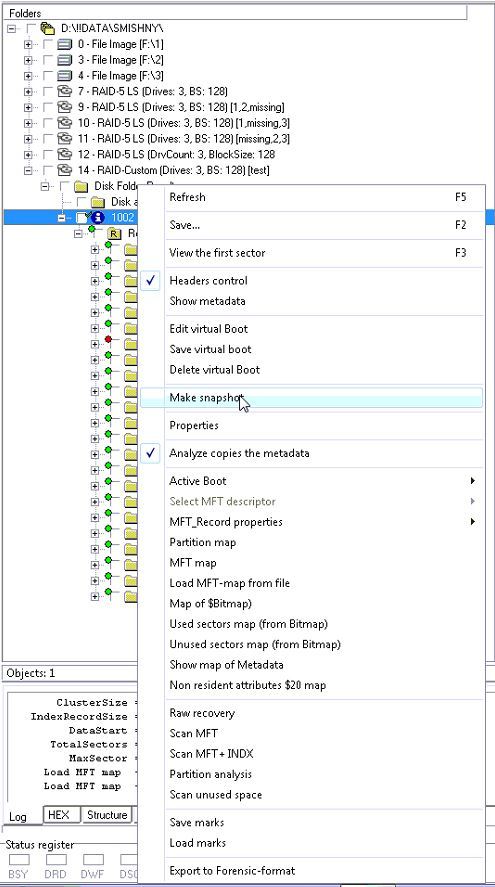

- 對找到的分區做一個快照。右鍵單擊瀏覽器中的虛擬NTFS引導，并選擇“快照”:
Make a snapshot of found partition. Right click on the virtual NTFS boot in Explorer and select ‘Make snapshot’:

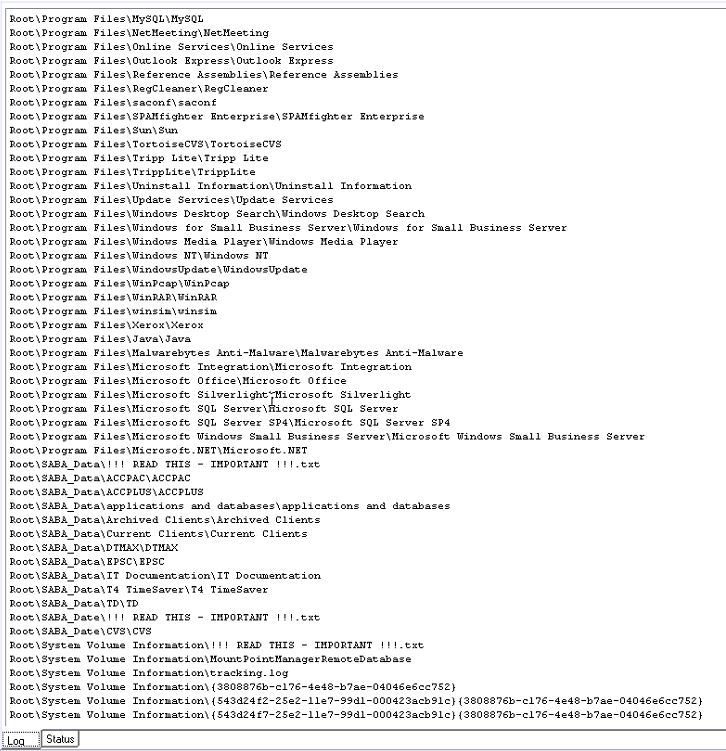

該方法將掃描分區的所有條目:
This method scans all entries of the partition:
最后，創建另一個虛擬分區，它是初始的快照。
And finally, creates another virtual partition which is the snapshot of initial one.
This method has advantages and disadvantages. The main advantage is that you get all available files on this partition. Disadvantages are you can get list of files were on file system, not the filesystem (the snapshot doesn’t include data of sectors out of the file map) and maybe the main?disadvantage – it can take a lot of time (just realize that you want?to make snapshot of RAID array filesystem with several TB size).
第二種方法是為文件系統創建一個虛擬磁盤。在數據提取器中也有類似的虛擬機安裝程序。您打開分區的映射:
2) The second method is to create a virtual disk for the filesystem. It’s similar procedure of virtual machine mounting in Data Extractor. You open map of the partition:
我們獲取分區的映射，并嘗試驗證主引導是否可用(從引導副本中恢復):

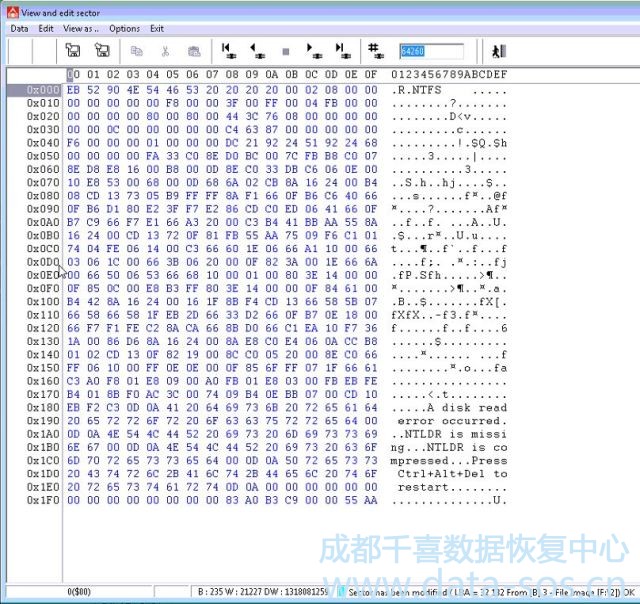

We get the map of partition and can try to verify that main boot is available now (it was recovered from boot copy):
It’s here!!! Pay attention to the note that sector was modified. (All modifications are performed with copy of the data and you will not lose an evidence of malware actions).

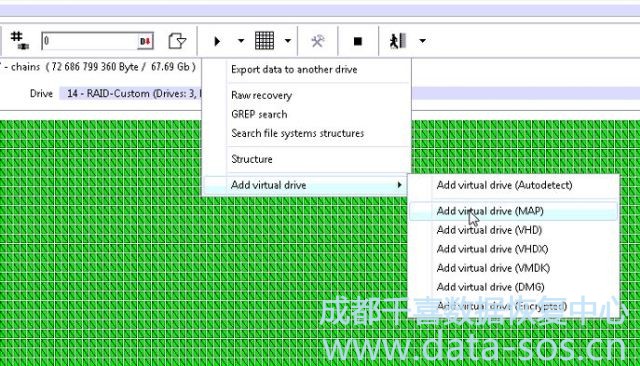

下一步是將分區映射掛到虛擬磁盤:
Next step is to mount the map of partition into virtual disk:

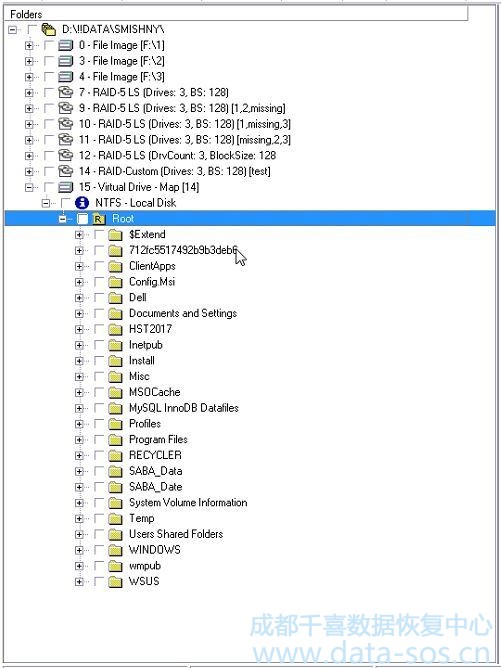

And we get the solid disk.
我們可以將其安裝在操作系統中，或者將其提取到另一個驅動器上以進一步調查。
We can mount it in the operation system or extract on another drive to further investigation now
