當我們需要用USB接口從2.5英寸的硬盤驅動器中恢復數據時，讓我們考慮一下這個問題。我們已經將連接類型從USB更改為SATA（使用兼容的SATA PCB或SATA適配器,參照WD 2.5寸移動硬盤USB全系列改串口板號對照表），但是當我們啟動? Marvell實用程序時，我們會看到? SED鎖定錯誤。
Let’s consider the stuation when we need to recover data from a 2.5 inch WD drive with a USB interface.?We have already changed the connection type from USB to SATA (using a compatible SATA PCB or SATA adapter), but when we start the?Marvell utility we see the?SED locked error.
這種故障的硬盤數據恢復工作該如何進行呢？
How to work with such drives?
讓我們學習以下方法
Let’s study the following method.
注意：您的PC-3000版本應不低于5.9.21！
NOTE: Your PC-3000 version should be not lower than 5.9.21 !
1.以?xún)?nèi)核模式啟動驅動器：把PCB與磁頭觸點隔離或?qū)CB的E47接地（在2060-771961-000 REV P1上測試）。狀態寄存器將關閉，ID不被檢測，但能自動檢測到硬盤的家族。
1. Start the drive in Kernel mode: head isolation with connected spindle contacts?or short E47 PCB pin to the ground (tested on 2060-771961-000 REV P1). Status registers will be off, ID is not detected, but autodetect should work correct.
2.點擊Work with ROM->SA regions editor->Block SA access以阻止SA訪問。
2. Follow Work with ROM->SA regions editor->Do it now…?button and Block SA access.
3.關閉驅動器電源并取下隔離
3. Power the drive off and remove the isolation.
4.打開驅動器電源。
4. Power the drive on.

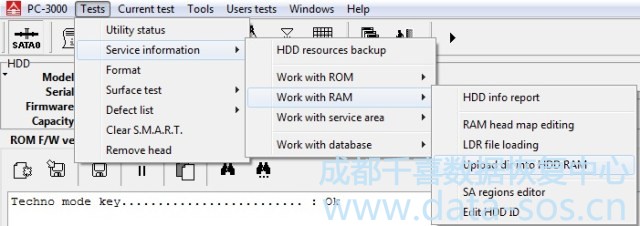

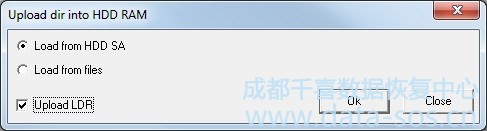

5.在內核模式下啟動實用程序，使用Work with RAM->Upload?dir into HDD RAM加載LDR到RAM。
5. Start the utility in Kernel mode, load DIR and loader into RAM using Work with RAM->Load DIR in RAM option.
從實用程序退出，進入正常模式下。
Exit from utility, start the utility in Normal mode.

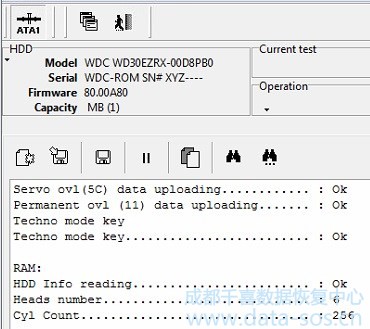

6.硬盤默認的ID為XYZ
6. Drive start with default -XYZ- in ID serial
7. 使用ABA保存服務區模塊：
7. Save Service Area modules by ABA:

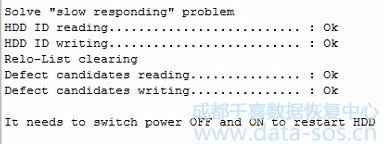

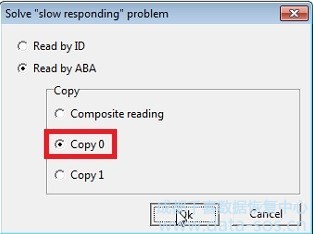

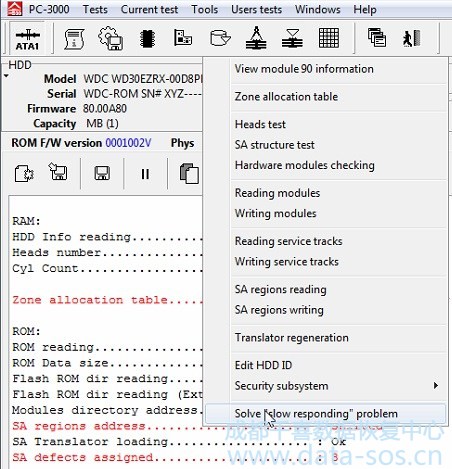

8.點擊Work with service area->Solve Slow responding problem,，由ABA執行，選擇COPY0。
8. Follow Work with service area->Solve Slow responding problem, do it by ABA, by copy 0.

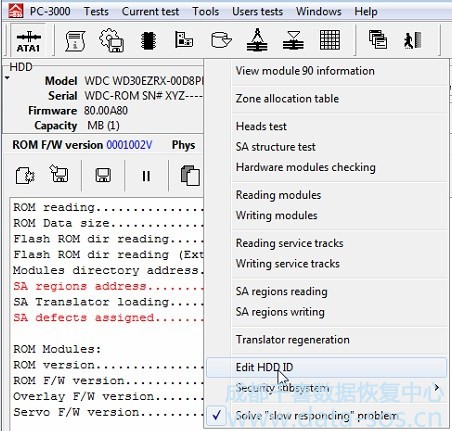

9.點擊Work with service area->Edit HDD ID，
9. Follow Work with service area->Edit HDD ID,
轉到 Security subsystem選項卡，刪除SED復選框，按OK
go to Security subsystem tab, remove SED checkbox, press OK.
僅通過copy0執行
Do it by copy 0 only

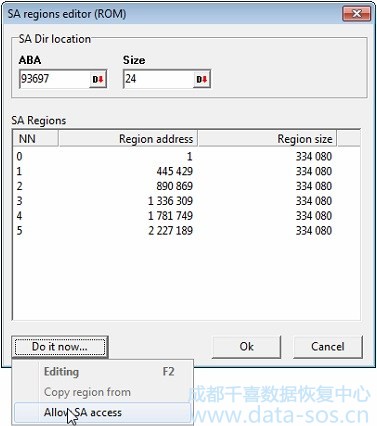

10.點擊Work with ROM->SA regions editor->Allow SA access，按OK。
10. Follow Work with ROM->SA regions editor->Allow SA access, press OK.

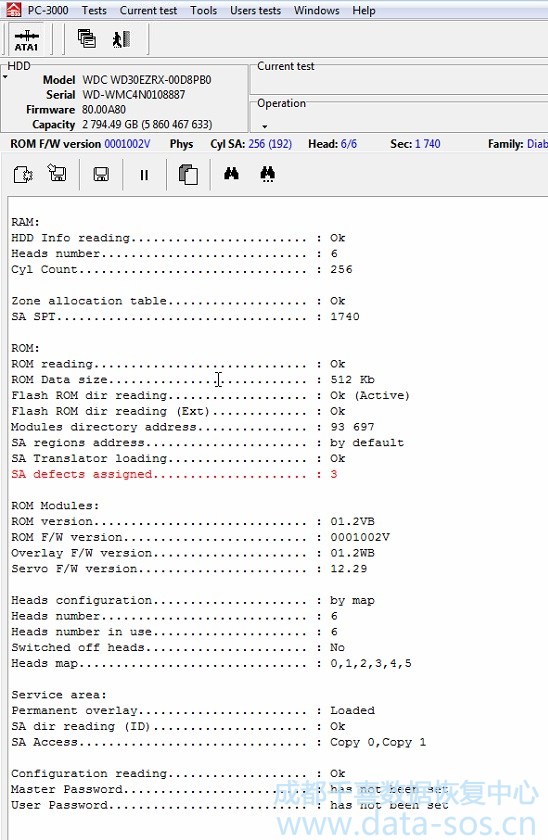

11.關閉再打開硬盤電源，進入WDC Marvell實用程序，驅動器獲得完整的ID并可以訪問SA區。
11. Power off\on the drive, enter in WDC Marvell utility, drive should start with full ID and SA access.

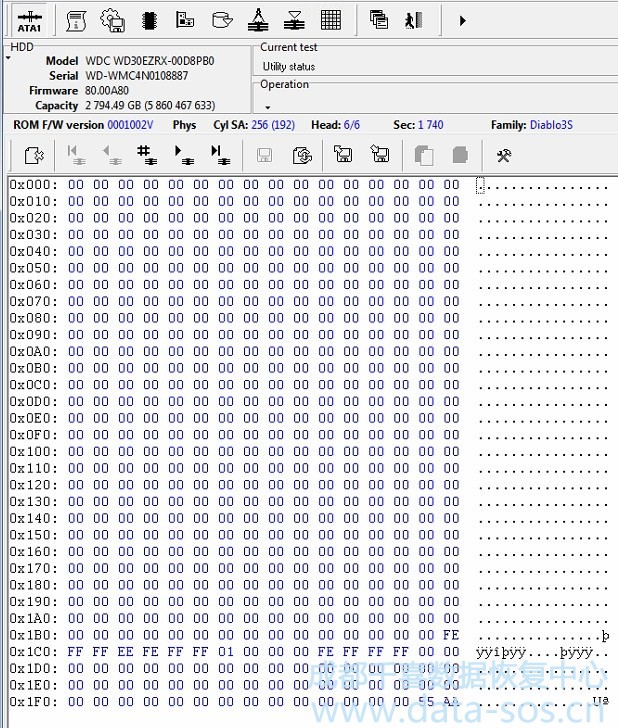

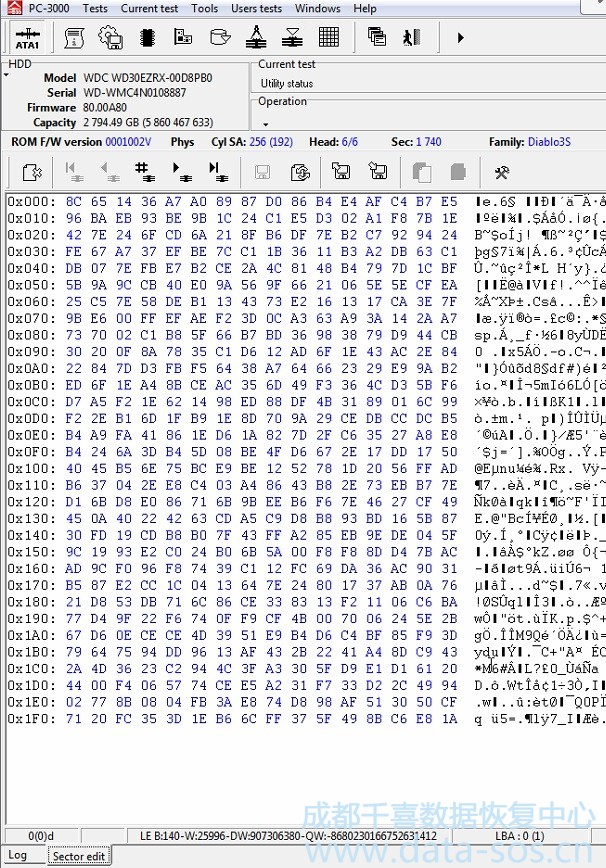

12.打開Tools->Sector edit.。數據看起來加密。
12. Open Tools->Sector edit. Data looks encrypted.

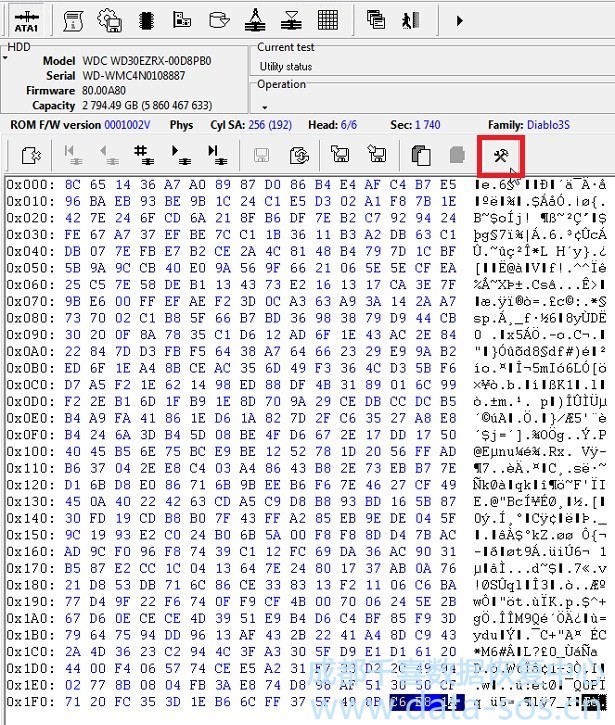

13.點擊Reading options
13. Follow Reading options
并選中Decrypt data復選框，按OK
and set Decrypt data checkbox, press OK

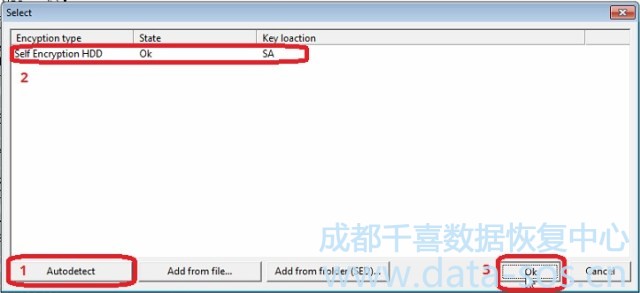

14.自動檢測加密類型，選擇自加密硬盤，然后按OK
14. Autodetect the encryption type, choose Self encryption HDD and press OK.
15.打開扇區編輯器檢查扇區是否真正解密。
15. Check if sectors are really decrypted in Sector edit.
16.在 Data Extractor中創建一個任務，轉到Settings->Command to read，選擇Decrypt復選框，重復使用加密類型搜索的操作。
16. Create a task in Data Extractor, go to Settings->Command to read tab, choose Decrypt checkbox, repeat the actions with encryption type search.
17.讀取數據。
17. Read the data.
