在硬盤數據恢復過程中有時會遇到Hitachi ARM硬盤的編譯器出現問題
Sometimes Hitachi ARM drives have problem with translation.
如果您打開扇區編輯器，您可以看到用戶區域的部分?jǐn)?shù)據。
If you open Sector editor you can see the only part of users area.

例如，驅動器的LBA共有1 953 525 168個，但您可以?xún)H在2000萬LBA之前查看數據。
For example drive have 1 953 525 168 LBAs, but you can see data only before 20 millions LBAs.

這就是編譯器問題
It’s a Translator issue.

For instance let’s consider the error.

這里我們有個日立ARM硬盤有這樣的問題。
Here we have Hitachi ARM drive with such problem.

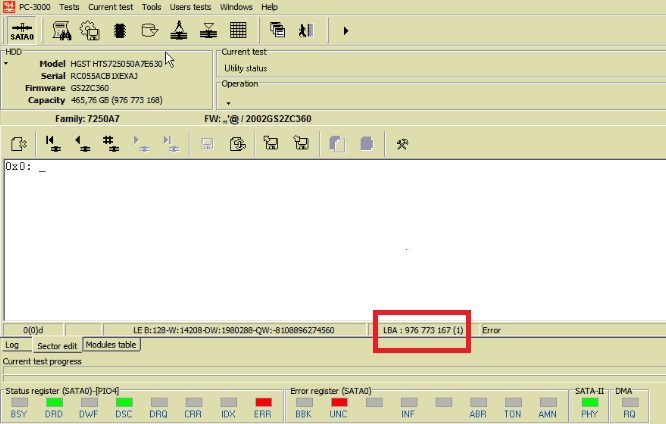

我們接通電源，但在實用程序中無法識別驅動器：
We switch on power supply, but drive can’t be recognized in utility:

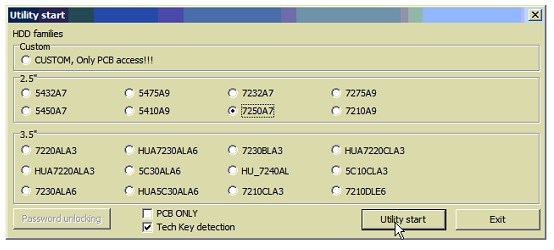

需要強制啟動實用程序，選擇一個家族并勾選“Tech key detection”功能：
Need to forced launch utility, choose a family and mark “Tech key detection” feature:

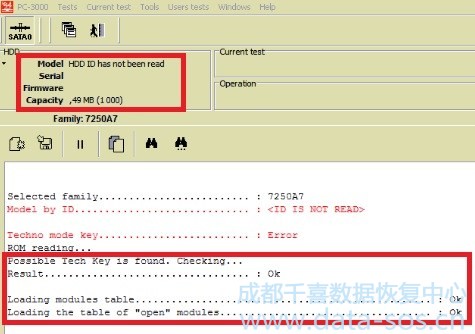

正如我們可以看到的tech key已被找到：
As we can see tech key has been recognized:

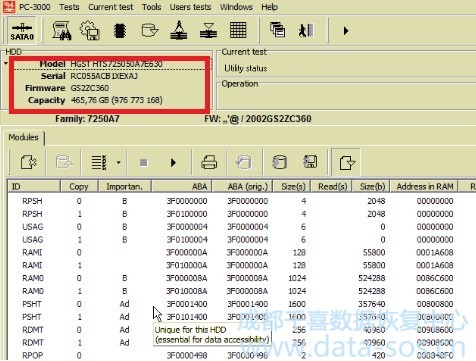

重新讀取驅動器并檢查SA：
Re-read Drive and and check SA access:

下一步 – 需要檢查SA的所有模塊，找到損壞的重要模塊，并嘗試修復它。
Next step – need to check all modules of SA, find damaged important modules and try to fix it.

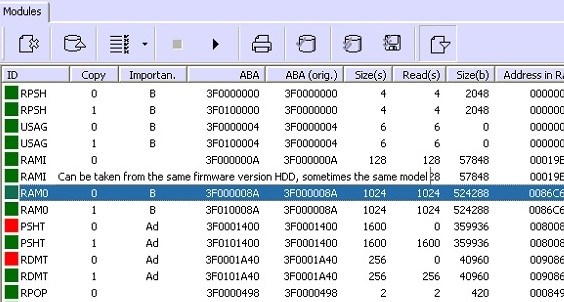

在我們的例子中，我們?cè)?em>Copy0上損壞了PSHT和RDMT模塊。
In our case we have damaged PSHT and RDMT modules at Copy0.

因?yàn)轵?qū)動器不能讀取很大一部分的用戶區域：
as result drive can’t to read a big part of users area:

PSHT – 編輯器模塊
PSHT – it’s translator module

RDMT – G-list 模塊
RDMT – G-list module

Bassicaly drive have this behavior if haven’t this modules inside RAM.
Check this two modules in RAM:
Tools -> Utility extencions -> Service information objects.
轉到“RAM / NV-RAM”選項卡，選擇“RAM”，然后雙擊打開PSHT和RDMT模塊。
Go to “RAM/NV-RAM” tab, choose “RAM” and perform double-click at PSHT and then at RDMT modules.

能你會看到空的窗口，或者RAM中的這個模塊將不一樣，就像在SA表中一樣。
Likely you will see empty window, or this modules in RAM will be not same as like in SA table.

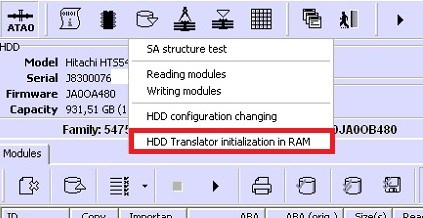

從5.6版本的實用程序?可用選項手動加載PSHT和RDMT模塊 – 它在“HDD Translator initialization in RAM”。
From 5.6 release of utility available option for loading a PSHT and RDMT modules manually – it’s “HDD Translator initialization in RAM”.

您將看到帶有參數的彈出窗口。
You will see pop-up window with parameters.
如果您只有PSHT模塊有問題 – 需要標記PSHT。
If you have problem only with PSHT module – need to mark PSHT.
如果您沒有正確的驅動器ID需要標記RDMT。
If you haven’t correct drive ID need to mark RDMT too.
如果通過Copy0有一個好的模塊，可以直接從驅動器加載這個模塊。
You can load this modules directly from drive if you have a good modules via Copy0.

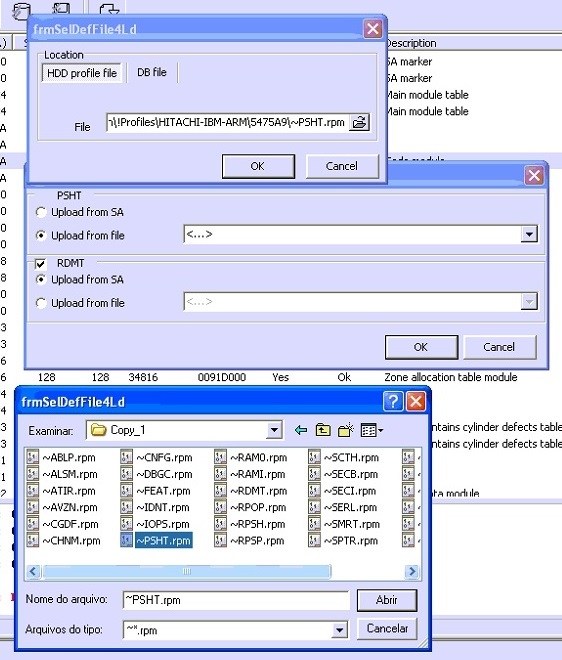

如果copy0模塊損壞 – 需要標記“從文件上傳”功能，并從配置文件文件夾中選擇模塊。
If copy0 modules are damaged – need to mark “Upload from file” feature and choose modules from a profile folder.
然后按OK。
Then press OK.
在我們的例子中，兩個模塊都有問題：
In our case we have problem with both modules:

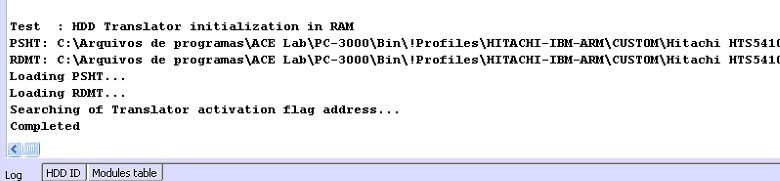

您可以在“日志”選項卡中看到此進程的進度。
Progress of this process you can see in Log tab.
然后進程會完成，你看到“完成”消息。
Then process will be done you shold see “Completed” message.

現在檢查請?jiān)L問用戶區。
Now check please access to users area.
所有扇區能正常訪問。
All sectors must be available.
并且您可以在DataExtractor實用程序中創建任務。
And you can create task in DataExtractor utility.
請注意，這些模塊裝載在RAM中，并且在重新啟動電源（或硬復位）之后，它將被重置，并且需要重新進行翻譯器初始化過程。
Pay attention, that this modules are loaded in RAM and after re-turning power supply (or Hard reset)?it will reseted and need to repeat Translator initialization procedure again.

But what about the Data Extractor??但是數據提取器呢？

當驅動器硬復位或讀取扇區的錯誤時，RAM被清除，需要再次執行翻譯器初始化步驟。
When drive loss of readiness or get an error of reading sectors the RAM is cleared and need to perform Translator initialization steps again..

我們建議在DE任務中進行編譯器設置。
We are advice to he translation settings in DE task.

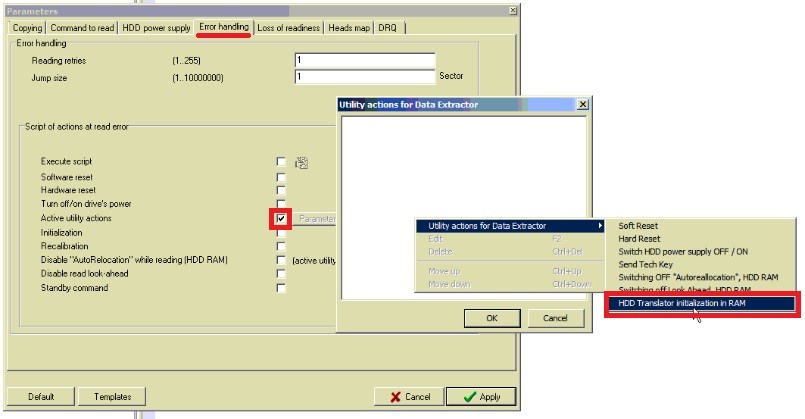

Open the “Settings” window, go to Error handing tab and mark “Active utility actions” option.
Then use a right mouse click on pop-up window and select rhe same option like on image:

After this set the same location from PSHT (and RDMT) module like in Hitachi utility.
Then go to “Loss of readiness” tab and perform the same steps for “Active utility actions” option in this tab.

That’s all.

現在，DataExtractor將在每次驅動器可能丟失讀取數據時將加載PSHT和RDMT模塊。
Now DataExtractor will load PSHT and RDMT modules each time when drive will lost reading possibility.
