Using Data Extractor RAID Edition, we are able to identify special RAID configurations and extract data from virtual machines on RAID arrays.
使用Data Extractor RAID Edition，我們能夠識別特殊的 RAID 配置和從虛擬機上 RAID 陣列中提取數據。

Data Extractor RAID Edition supports SPECIAL-VMFS level for manipulations with VMFS spanned across multiple disks
Data Extractor RAID Edition支持特別的VMFS級別的操作與VMFS跨越多個磁盤;

These virtual machines created with VMware or other products typically use virtual disks.
通常用 VMware 或其他產品創建這些虛擬機使用的虛擬磁盤。

The virtual disks, stored as files on the host computer or on a remote storage device, appear to the guest operating systems as standard disk drives.
虛擬磁盤存儲為文件在主機計算機上或在遠程存儲設備上，出現對客戶端操作系統作為標準的磁盤驅動器。

We will show in this topic how to assemble RAID with virtual machines on 4 disks with VMFS volume.
我們將本主題中展示如何重建RAID與4 磁盤VMFS卷上的虛擬機進行服務器數據恢復工作。

We do this using a little knowledge of the RAID array architecture which we then combine with the metadata autodetection of Data Extractor RAID Edition.
我們使用RAID陣列體系結構，然后Data Extractor RAID Edition結合元數據自動檢測進行數據解析。

To start with we will need:
首先我們將需要 ︰

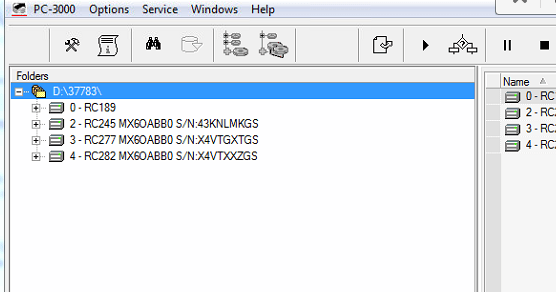

1. Firstly add all RAID disks
1.首先添加所有RAID磁盤陣列中的硬盤

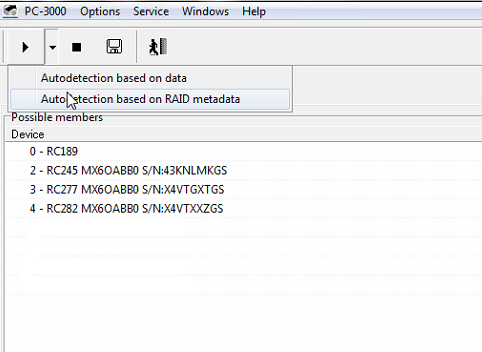

2. Open RAID constructor and run Autodetection based on RAID metadata
2.打開RAID構造函數和運行基于RAID元數據的自動檢測功能

One RAID configuration was found
一種 RAID 配置被發現

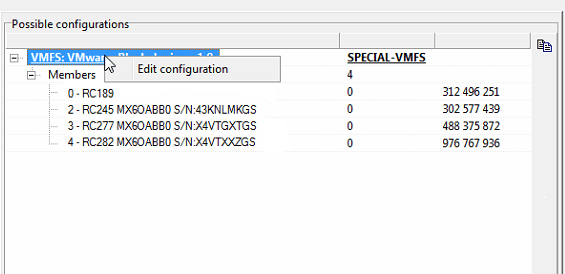

3. Go to RAID Metadata tab and edit found configuration
3.轉到RAID元數據選項卡上，編輯發現的配置（Edit configuration）

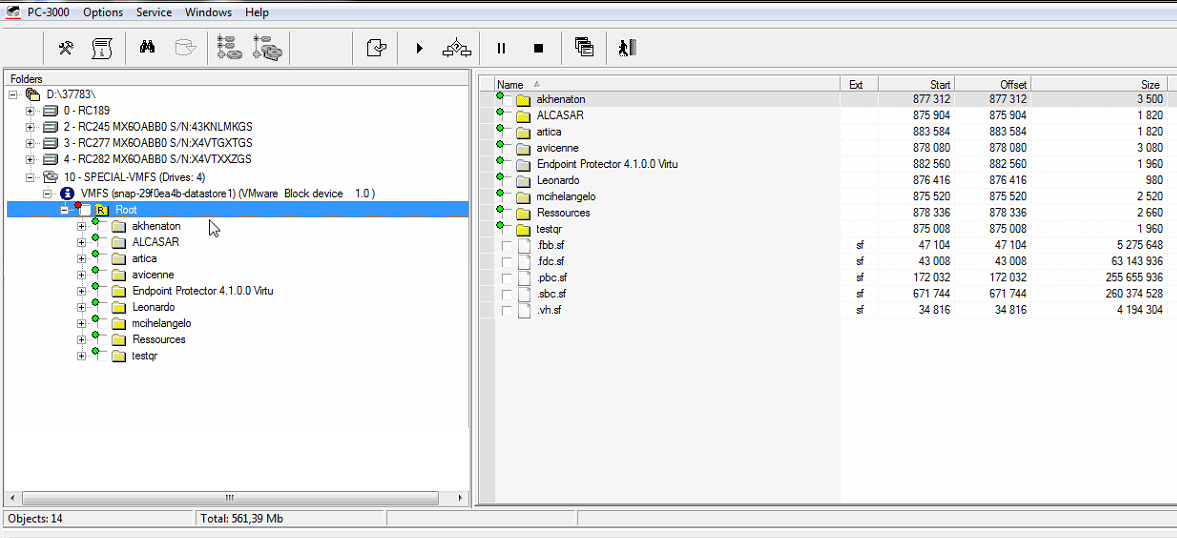

4. Now file structure is available
4.現在是可用文件結構

5. Open virtual machine. Right-click on largest .vmdk and select “Add virtual drive (MAP)”
5.打開虛擬機文件.vmdk 右擊并選擇”添加虛擬驅動器 Add virtual drive (MAP 圖）”

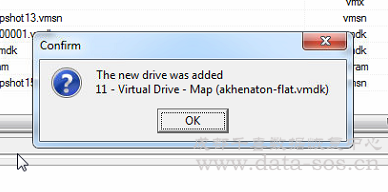

It was added

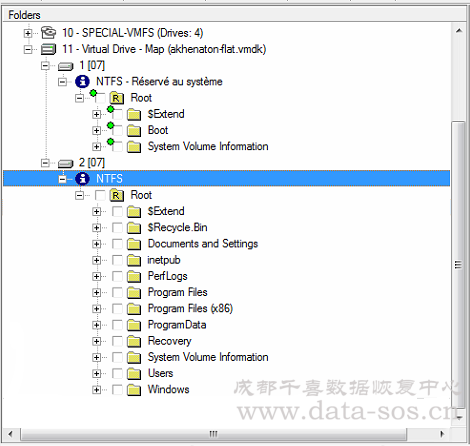

6. File structure on virtual machine is available now and you can save files and folders
6.文件結構在虛擬機上的現已可用，您可以保存文件和文件夾數據；
